885917 - Gravely Pro-QXT Dethatcher Attachment (SN: 000101 - 000999) Handle Lock Assembly Parts Diagram

Pro-QXT Dethatcher Attachment

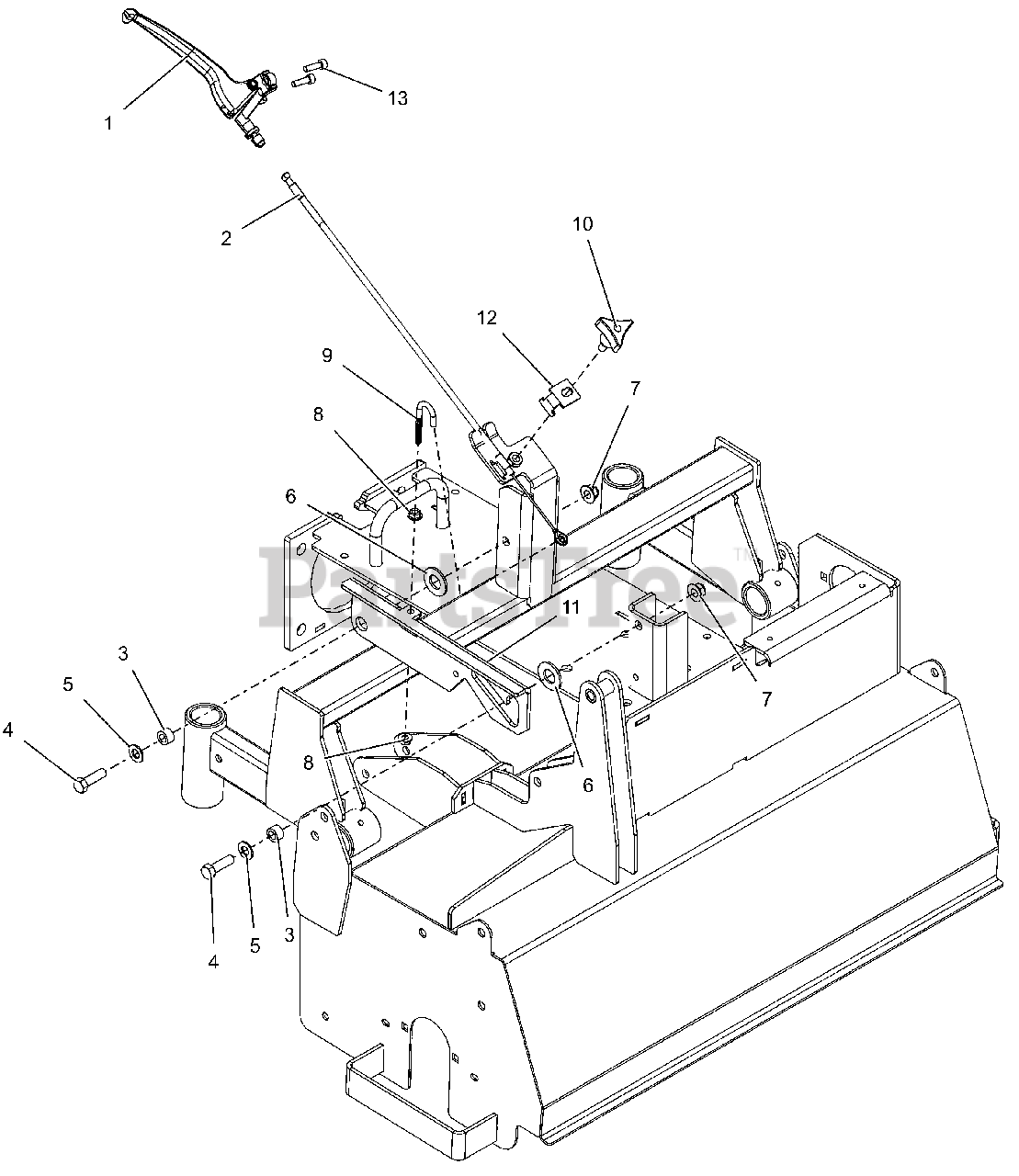

Handle Lock Assembly Parts Diagram

  • Title

1

Gravely 09130800

HANDLE, ANGLE CONTROL

$

$

Not available

2

Gravely 09126100

CABLE ASSY, BRUSH

$

$

Not available

3

Gravely 05522100

BSHG-SLV .377X.624X.370

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06500824

NUT-SPNLK-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

9

Gravely 07001818

BLT, J-HOOK .25-20X2.31 ZCC

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 07500008

KNOB,WING STUD 5/16-18 X .75

$5.99

$

In Stock, Qty 20+

0

11

Gravely 09146151

EAR, HANDLE LOCK

$

$

Not available

12

Gravely 09150851

BRKT, CABLE CLAMP (BLACK)

$

$

Not available

13

Gravely 05901829

SCR, SKH M6-1 X 20 GR10.9 ZCC

$5.99

$

Usually ships in 4-12 days

0
