885916 - Gravely Pro-QXT Aerator Attachment (SN: 000101 - 000999) Lifting Bracket Parts Diagram

Pro-QXT Aerator Attachment

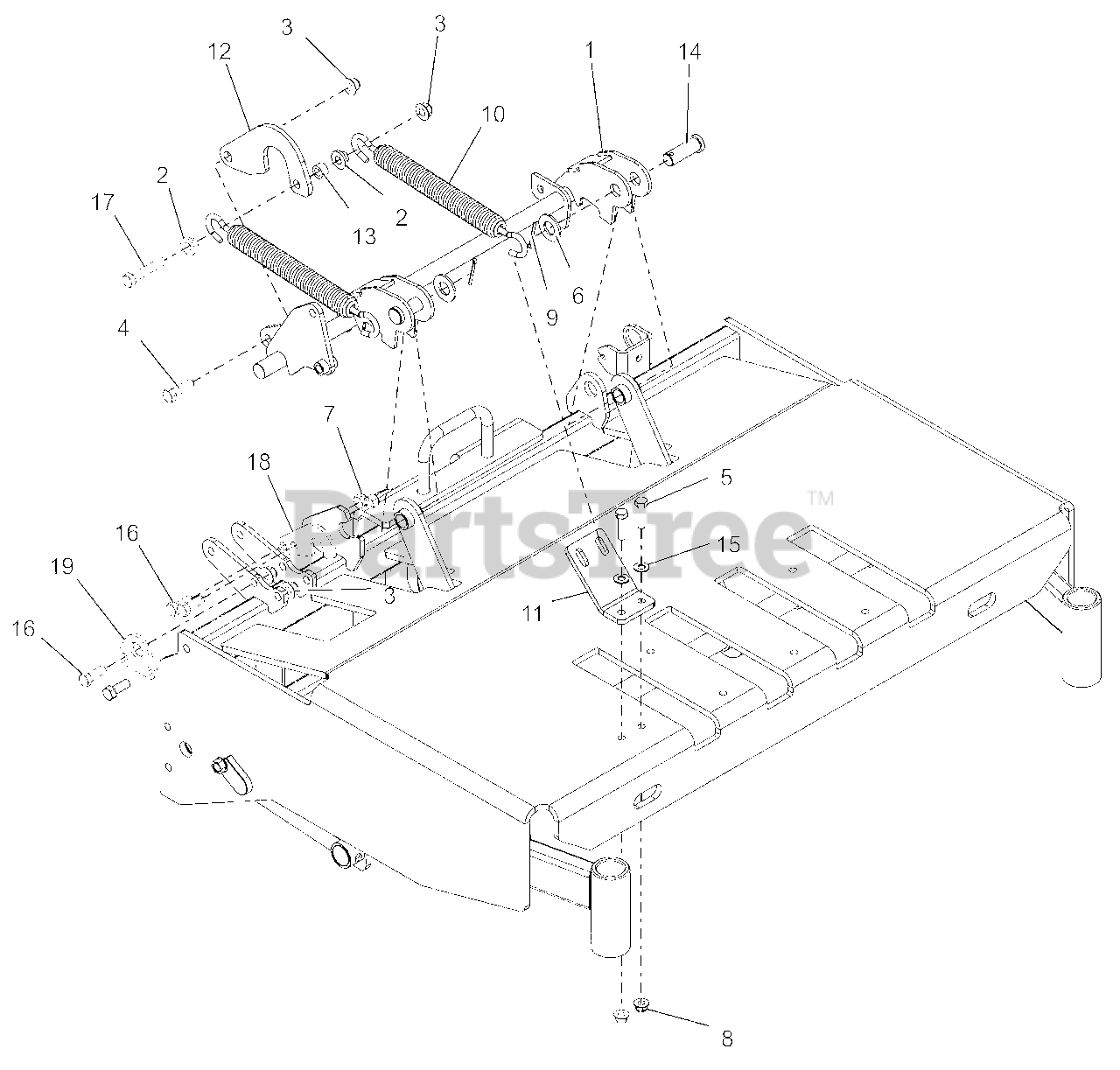

Lifting Bracket Parts Diagram

  • Title

1

Gravely 09141851

WLDMT, CONTROL

$158.99

$

Usually ships in 4-12 days

0

2

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

3

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

4

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05901803

BLT, HEX .31-18X1.25 G5 ZCC

$2.49

$

In Stock, Qty 8

0

6

Gravely 06401039

WSHRFLT 5/8SAE CARBHARD FBP

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 06500831

NUT,NYL .38-16 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

8

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06700212

PIN,CTR.12X1.25EXTPRSQCT ZC120

$0.99

$

In Stock, Qty 20+

0

10

Gravely 08300505

SPRING, EXTENSION

$25.99

$

In Stock, Qty 20+

0

11

Gravely 09150553

BRKT, SPRING LIFT

$31.99

$

Usually ships in 4-12 days

0

12

Gravely 09150653

EAR, SPRG LIFT (RED)

$22.99

$

Usually ships in 4-12 days

0

13

Gravely 05522100

BSHG-SLV .377X.624X.370

$4.99

$

Usually ships in 4-12 days

0

14

Gravely 06823000

PIN, CLEVIS .625 X 1.75

$

$

Currently unavailable

15

Gravely 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05901617

BLT, HEX .38-16X1.00 G5 CKF

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

18

Gravely 09141953

EAR

$12.99

$

Usually ships in 4-12 days

0

19

Gravely 09143553

EAR,PIVOT END(RED)

$9.49

$

Usually ships in 4-12 days

0
