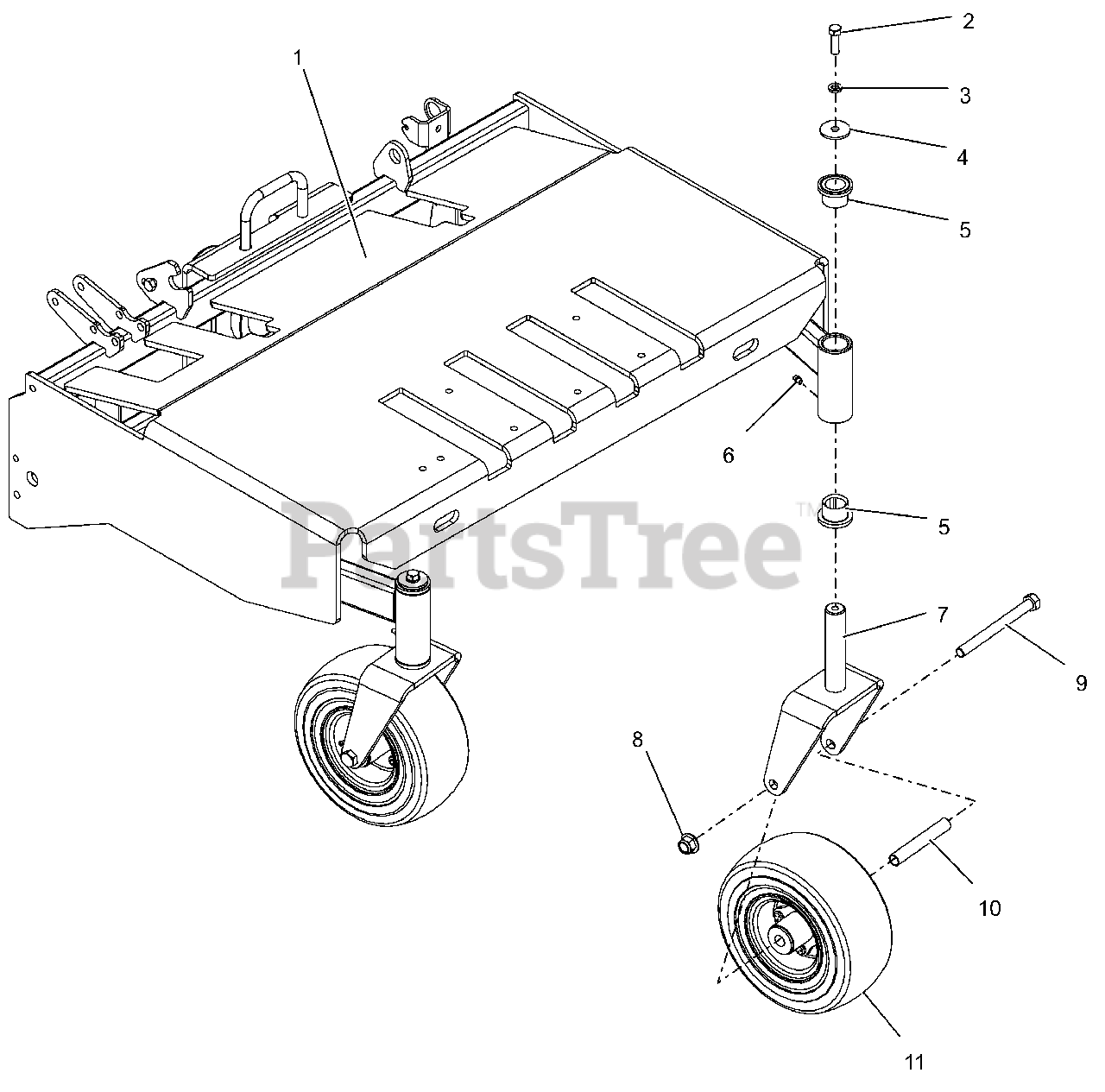

885916 - Gravely Pro-QXT Aerator Attachment (SN: 000101 - 000999) Deck And Casters Parts Diagram

Pro-QXT Aerator Attachment

Deck And Casters Parts Diagram

  • Title
1

Gravely 09141353

WLDMT, FRAME

$1136.99

$

Usually ships in 4-12 days

0

2

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 10

0

5

Gravely 04366100

BRG, FLG 1.00 X 1.25 X 1.00

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 07001738

FTG-LUBE .25-28X.256 SST

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 03855153

WLDT, FRONT WHEEL FLWLK GRVLY

$122.99

$

Usually ships in 4-12 days

0

8

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05901632

BLT,HEX .50-13X5.50 G5 ZCC

$6.99

$

Usually ships in 4-12 days

0

10

Gravely D13003

TUBE, CASTER AXLE

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 07101323

ASSM TIRE\WHEEL, 9 x 3.50-4

$

$

Not available
