885916 - Gravely Pro-QXT Aerator Attachment (SN: 000101 - 000999) Angle Control Latch Parts Diagram

Pro-QXT Aerator Attachment

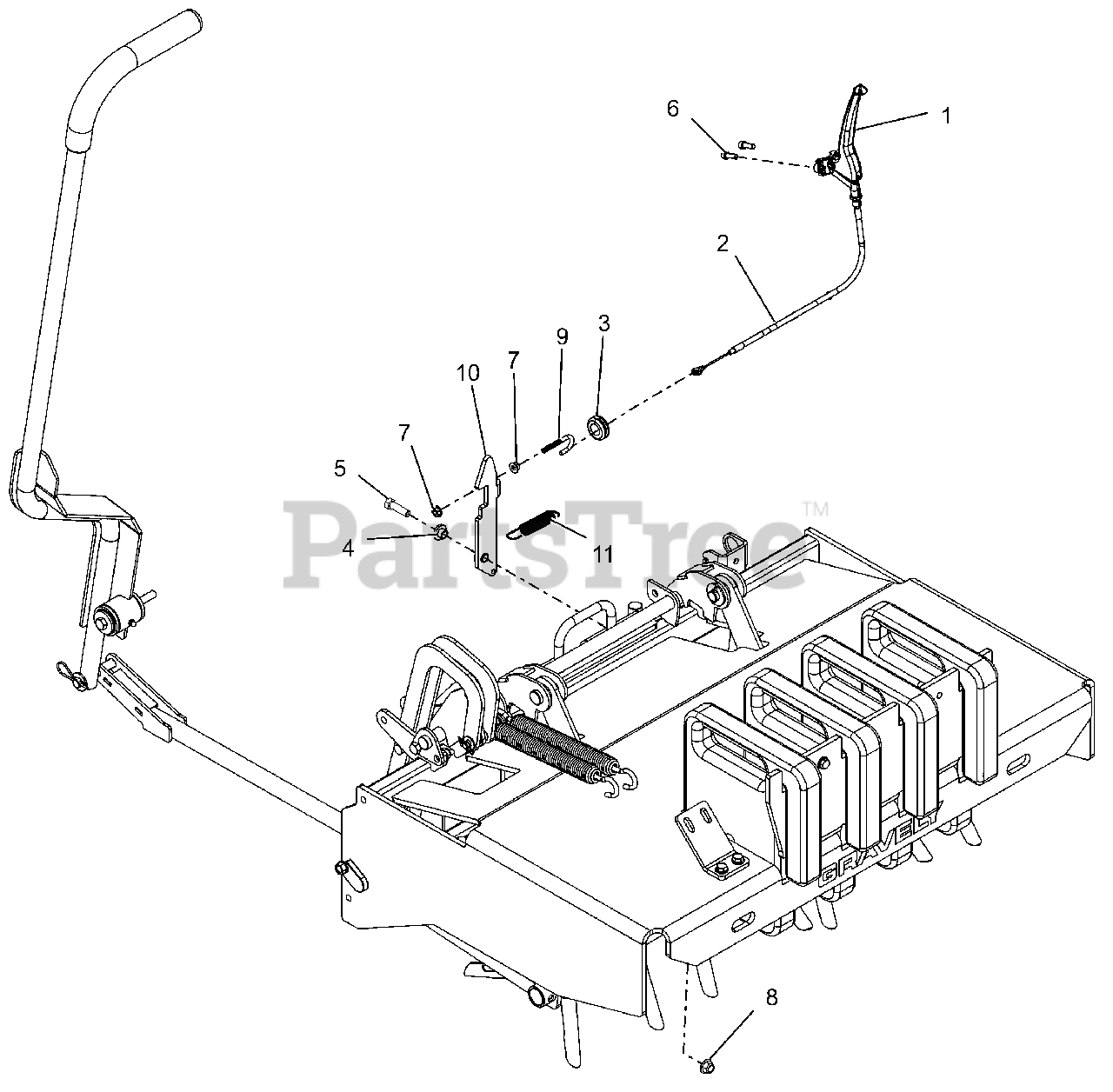

Angle Control Latch Parts Diagram

  • Title
1

Gravely 09130800

HANDLE, ANGLE CONTROL

$

$

Not available

2

Gravely 09126100

CABLE ASSY, BRUSH

$

$

Not available

3

Gravely 04814300

GROMMET, SPLIT RUBBER

$

$

Not available

4

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, Qty 20+

0

5

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05901829

SCR, SKH M6-1 X 20 GR10.9 ZCC

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 06500824

NUT-SPNLK-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07001818

BLT, J-HOOK .25-20X2.31 ZCC

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 09142053

EAR, LOCK - RED

$41.99

$

Usually ships in 4-12 days

0

11

Gravely 08300628

SPRG, EXT .653 X .063 X 2.755

$6.99

$

Usually ships in 4-12 days

0
