885915 - Gravely Pro-QXT 48" Finish Mower Attachment (SN: 000101 - 000999) PTO Drive Parts Diagram

Pro-QXT 48" Finish Mower Attachment

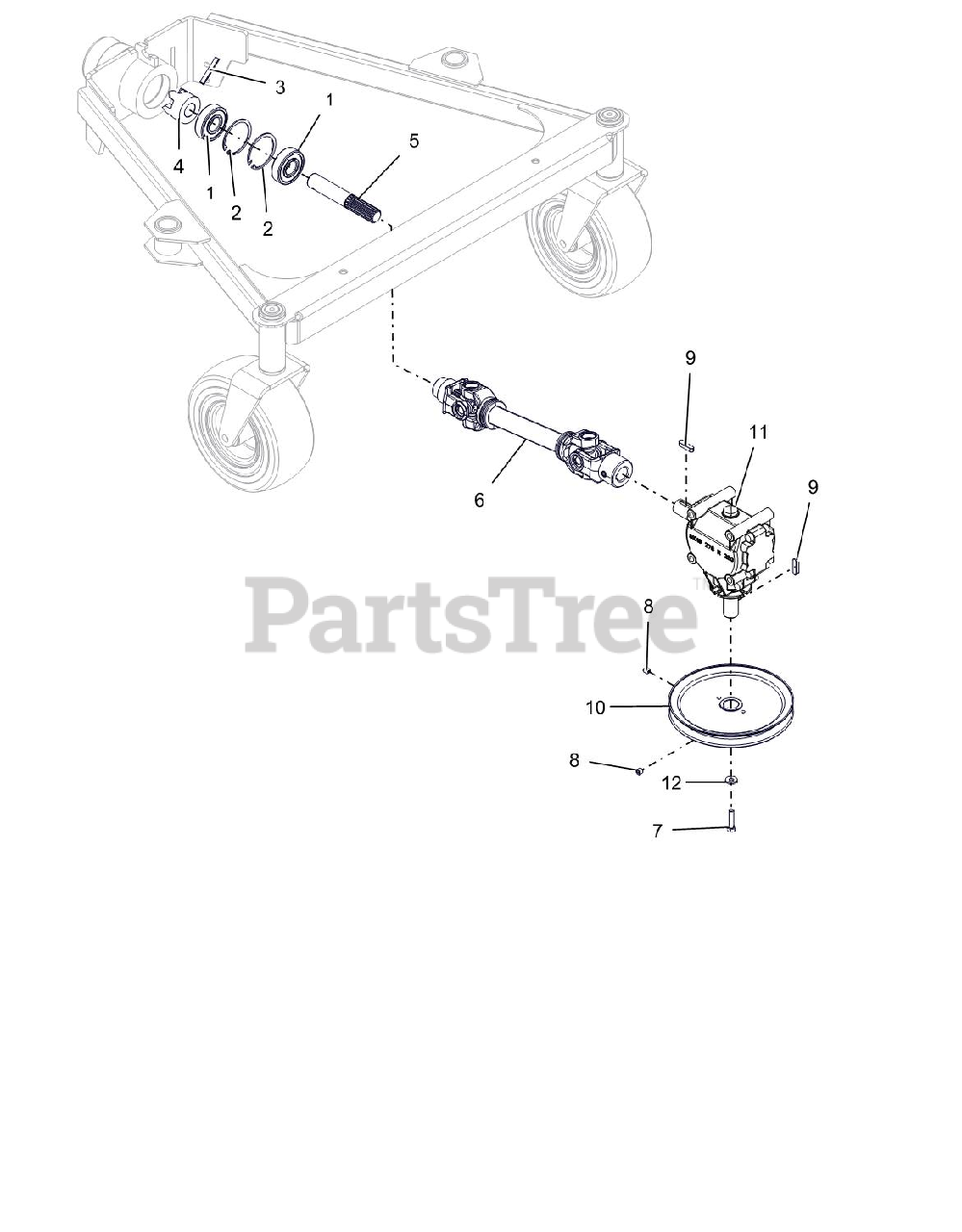

PTO Drive Parts Diagram

  • Title
1

Gravely 00200046

BEARING, 6305LLC

$

$

Not available

2

Gravely 05702300

RG-RTNG-INT 2.438X.078

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 05800007

PIN-ROLL 8MM X 50MM

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 09125400

CLAW COUPLING

$258.99

$

Usually ships in 4-12 days

0

5

Gravely 09134400

PTO SHAFT

$

$

Not available

6

Gravely 09128900

DRIVELINE,2-WHEEL FINISH MOWER

$309.99

$

Usually ships in 4-12 days

0

7

Gravely 05901713

BLT, HEX M8-1.25X35 GR8.8ZC120

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06000033

SET SCREW, 3/8-24 X 3/8 (CUP)

$

$

Not available

9

Gravely 06600223

KEY-STR 8X7X32MM ROUND ENDS

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 09134751

WLDMT, PULLEY 8.25

$

$

Not available

11

Gravely 09135300

GEARBOX, RH 2.78:1

$407.99

$

Usually ships in 4-12 days

0

12

Gravely 06401007

WSHR,BLVL M8X19.84X2.5 ZCMCH

$5.99

$

Usually ships in 4-12 days

0
