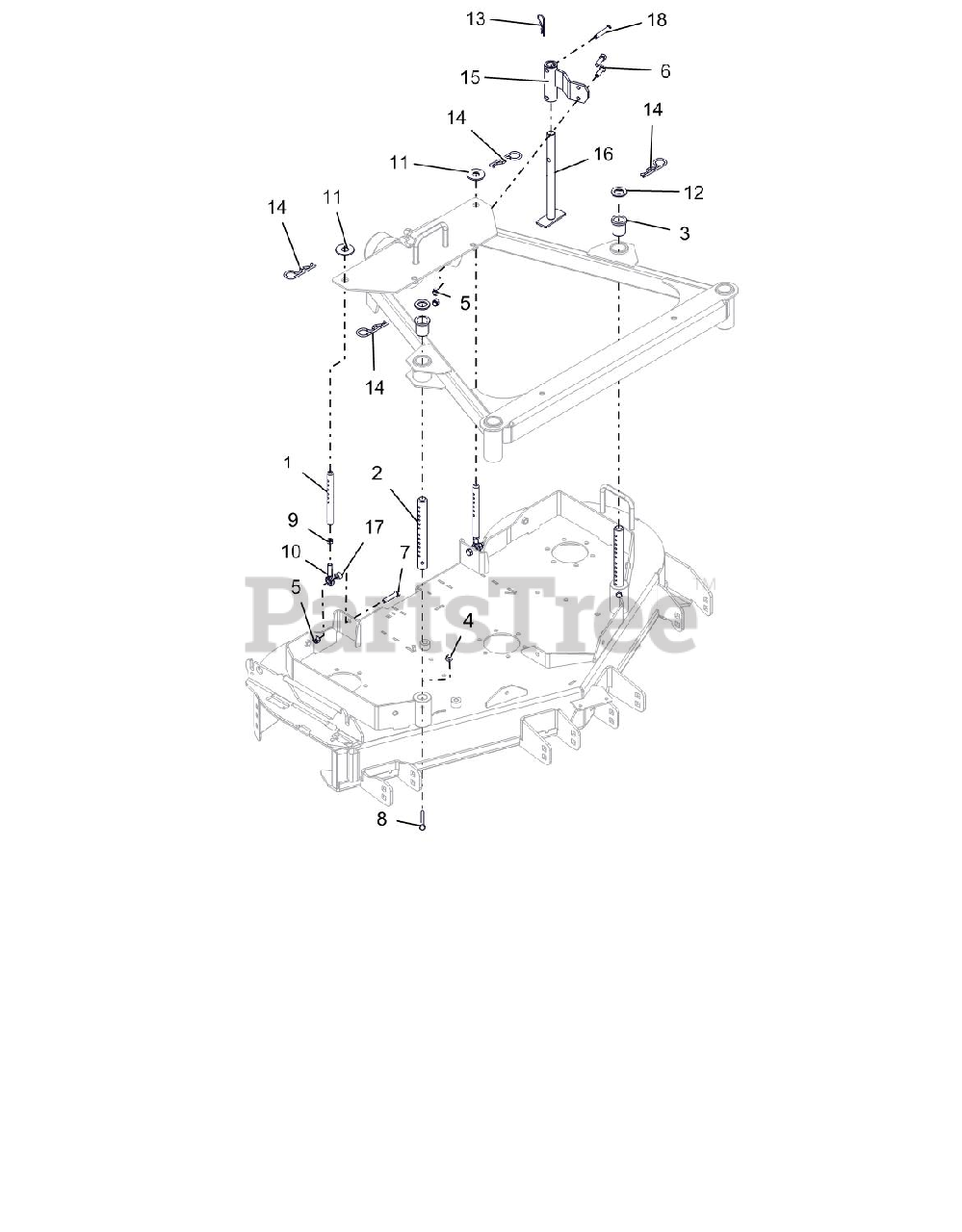

885915 - Gravely Pro-QXT 48" Finish Mower Attachment (SN: 000101 - 000999) Height Of Cut Parts Diagram

Pro-QXT 48" Finish Mower Attachment

Height Of Cut Parts Diagram

  • Title

1

Gravely 09135800

PIN, REAR HOC

$

$

Not available

2

Gravely 09135400

PIN, FRONT HOC

$

$

Not available

3

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

4

Gravely 06500815

NUT,SPNLK-FLG .312-18 ZC120

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06500831

NUT,NYL .38-16 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

6

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05901612

BLT, HEX .38-16X1.75 G5ZC120

$2.99

$

In Stock, only 1 left!

0

8

Gravely 05901717

BLT-HEX .31-18X2.50 G8ZC120

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 06500739

NUT, HEX-JAM .375-24 ZC120

$2.49

$

In Stock, only 1 left!

0

10

Gravely 08790600

ROD END, 3/8 RH

$59.99

$

Usually ships in 4-12 days

0

11

Gravely 06401032

WSHR,FLT .688X1.75X.134 ZCC

$1.49

$

In Stock, only 4 left!

0

12

Gravely 06401036

WSHR-FL-STL .875X1.5X.119

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 06700215

PIN, HAIR-#7 .094X2.31 ZC120

$5.99

$

In Stock, Qty 10

0

14

Gravely 06700216

PIN, HAIR-.17X.68X3.50 ZC120

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 09136553

BRKT, STAND (RED)

$55.99

$

Usually ships in 4-12 days

0

16

Gravely 09136600

WLDT, STAND

$92.99

$

Usually ships in 4-12 days

0

17

Gravely 05522100

BSHG-SLV .377X.624X.370

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 06800134

PIN, CLEVIS

$6.99

$

Usually ships in 4-12 days

0
