885915 - Gravely Pro-QXT 48" Finish Mower Attachment (SN: 000101 - 000999) Deck, Belt, Blades And Spindles Parts Diagram

Pro-QXT 48" Finish Mower Attachment

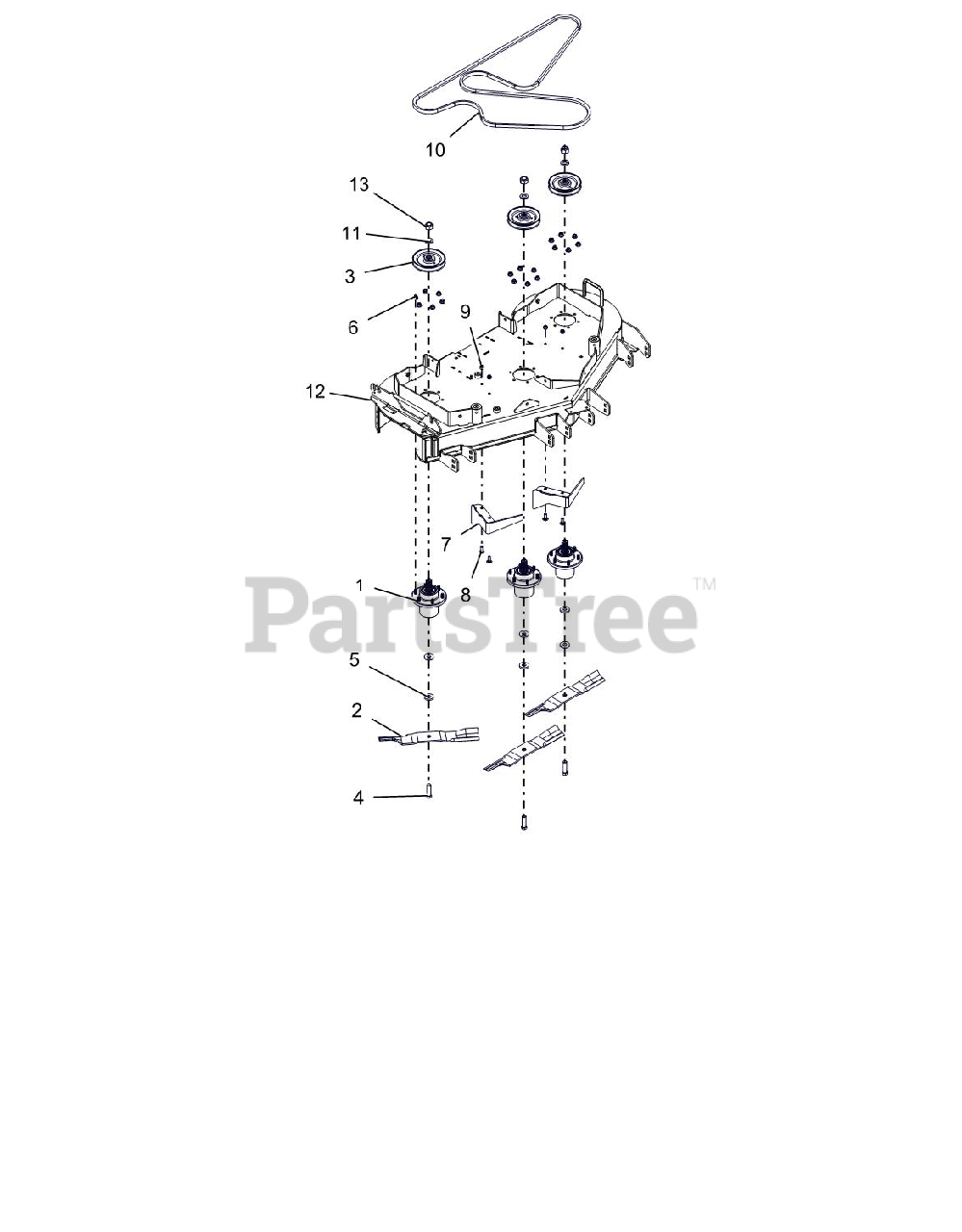

Deck, Belt, Blades And Spindles Parts Diagram

  • Title

1

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$262.99

$

In Stock, only 2 left!

0

2

Gravely 00450200

BLADE, 16.19" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0

3

Gravely 07343900

PULLEY, SPINDLE 5.25 X .25

$91.99

$

Usually ships in 4-12 days

0

4

Gravely 05901725

BLT, HEX .62-11X2.00 G8 ZCC

$5.99

$

In Stock, only 4 left!

0

5

Gravely 06401033

WSHR,FLT .630X1.50X.25 ZCC

$6.99

$

In Stock, only 1 left!

0

6

Gravely 06500726

NUT,LK-NYL-FLG .38-16 G5ZC120

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09137953

WLDMT, BAFFLE 48

$

$

Not available

8

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZC120

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06500831

NUT,NYL .38-16 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

10

Gravely 07200712

BELT, B-SECTION EPDM RAW EDGE

$126.99

$

In Stock, only 1 left!

0

11

Gravely 06401037

WSHR-FL-STL .75X1.312X.12 ZC12

$

$

Not available

12

Gravely 09136953

WLDMT, DECK 48" 2-WHEEL

$

$

Not available

13

Gravely 06500836

NUT, CROWN LK .750-16 G5 ZC120

$6.99

$

In Stock, only 2 left!

0
