885914 - Gravely Pro-QXT 36" Finish Mower Attachment (SN: 000101 - 000999) PTO Drive Parts Diagram
Pro-QXT 36" Finish Mower Attachment

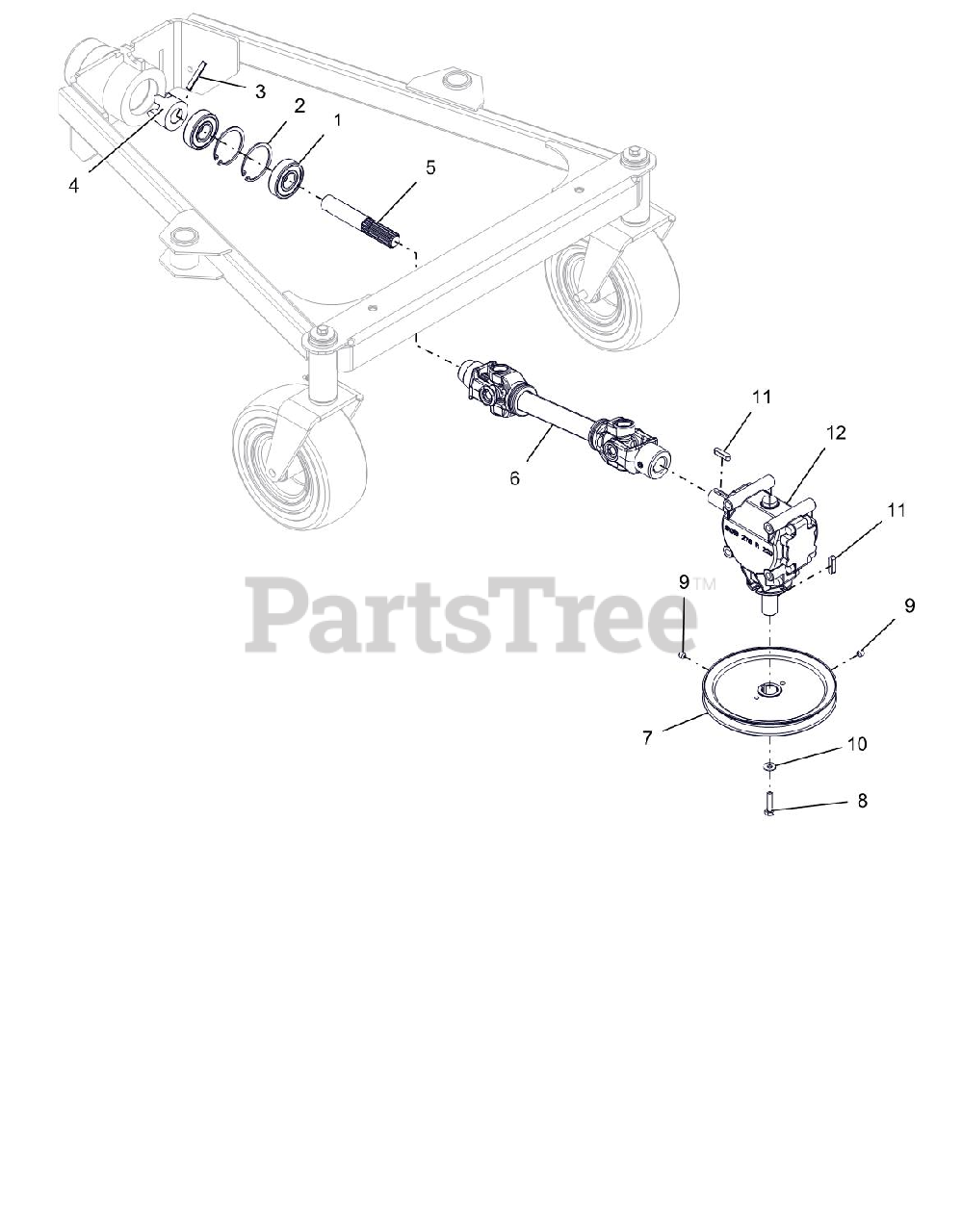

PTO Drive Parts Diagram
Gravely 00200046
BEARING, 6305LLC
$26.99
$
Usually ships in 4-12 days
Gravely 05702300
RG-RTNG-INT 2.438X.078
$3.49
$
Usually ships in 4-12 days
Gravely 05800007
PIN-ROLL 8MM X 50MM
$2.99
$
Usually ships in 4-12 days
Gravely 09125400
CLAW COUPLING
$323.99
$
Usually ships in 4-12 days
Gravely 09134400
PTO SHAFT
$90.99
$
Usually ships in 4-12 days
Gravely 09128900
DRIVELINE,2-WHEEL FINISH MOWER
$309.99
$
Usually ships in 4-12 days
Gravely 09134751
WLDMT, PULLEY 8.25
$
$
Not available
Gravely 05901713
BLT, HEX M8-1.25X35 GR8.8ZC120
$3.99
$
Usually ships in 4-12 days
Gravely 06000033
SET SCREW, 3/8-24 X 3/8 (CUP)
$
$
Not available
Gravely 06401007
WSHR,BLVL M8X19.84X2.5 ZCMCH
$5.99
$
Usually ships in 4-12 days
Gravely 06600223
KEY-STR 8X7X32MM ROUND ENDS
$5.99
$
Usually ships in 4-12 days
Gravely 09135300
GEARBOX, RH 2.78:1
$407.99
$
Usually ships in 4-12 days
