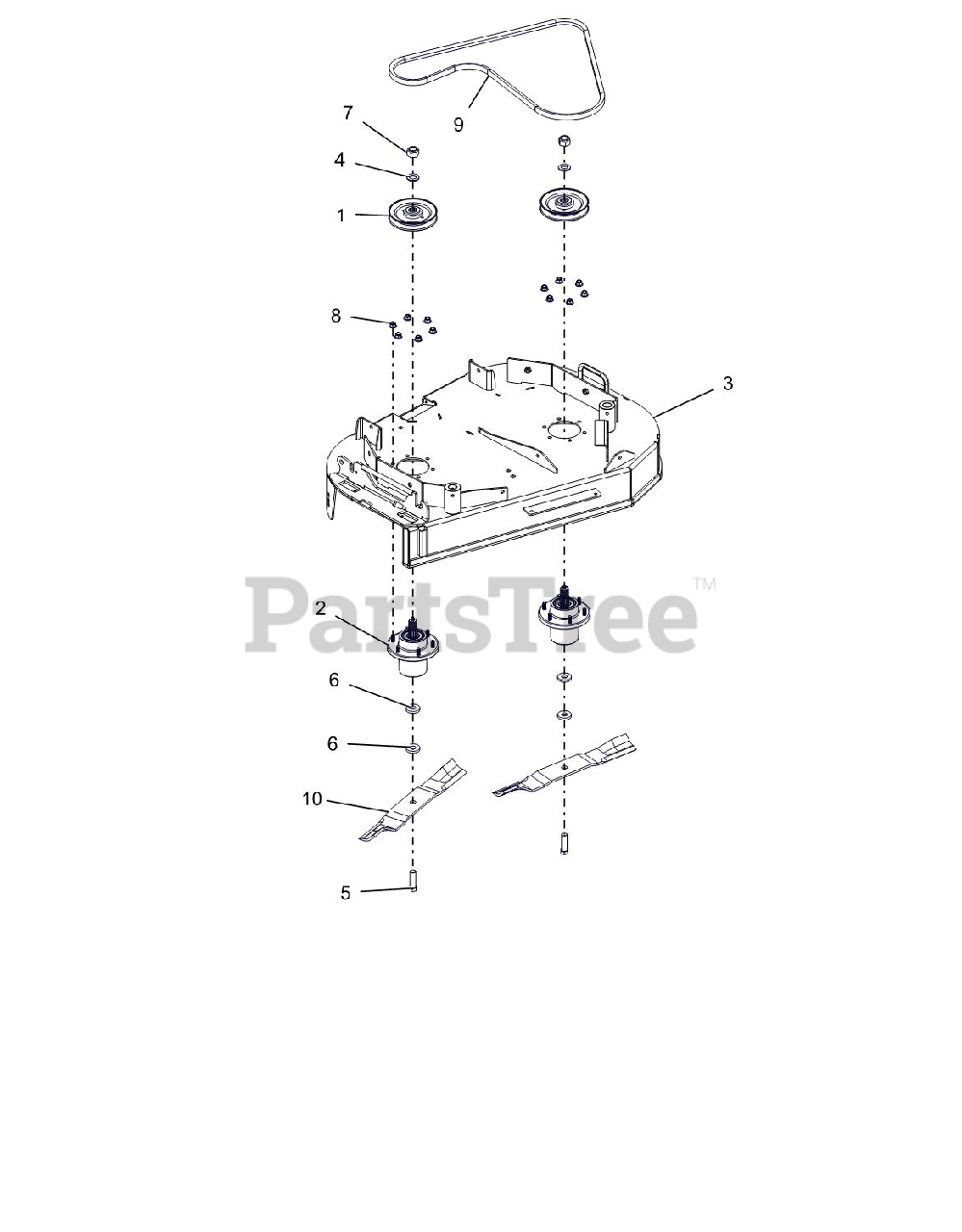

885914 - Gravely Pro-QXT 36" Finish Mower Attachment (SN: 000101 - 000999) Deck, Belt, Blades And Spindles Parts Diagram

Pro-QXT 36" Finish Mower Attachment

Deck, Belt, Blades And Spindles Parts Diagram

  • Title
1

Gravely 07337351

PULLEY, SPINDLE .25 HUB
(Superseded to 58875400)

$83.99

$

In Stock, only 1 left!

0

2

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$262.99

$

In Stock, only 2 left!

0

3

Gravely 09134653

WLDMT, DECK 36" 2-WHEEL

$

$

Not available

4

Gravely 06401037

WSHR-FL-STL .75X1.312X.12 ZC12

$

$

Not available

5

Gravely 05901725

BLT, HEX .62-11X2.00 G8 ZCC

$5.99

$

In Stock, only 4 left!

0

6

Gravely 06401033

WSHR,FLT .630X1.50X.25 ZCC

$6.99

$

In Stock, only 1 left!

0

7

Gravely 06500836

NUT, CROWN LK .750-16 G5 ZC120

$6.99

$

In Stock, only 2 left!

0

8

Gravely 06500726

NUT,LK-NYL-FLG .38-16 G5ZC120

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07237700

V-BELT, HB-RAW EDGE

$71.99

$

In Stock, only 2 left!

0

10

Gravely 00450300

BLADE, 18.00" MOWER (HI-LIFT)

$29.99

$

In Stock, Qty 20+

0
