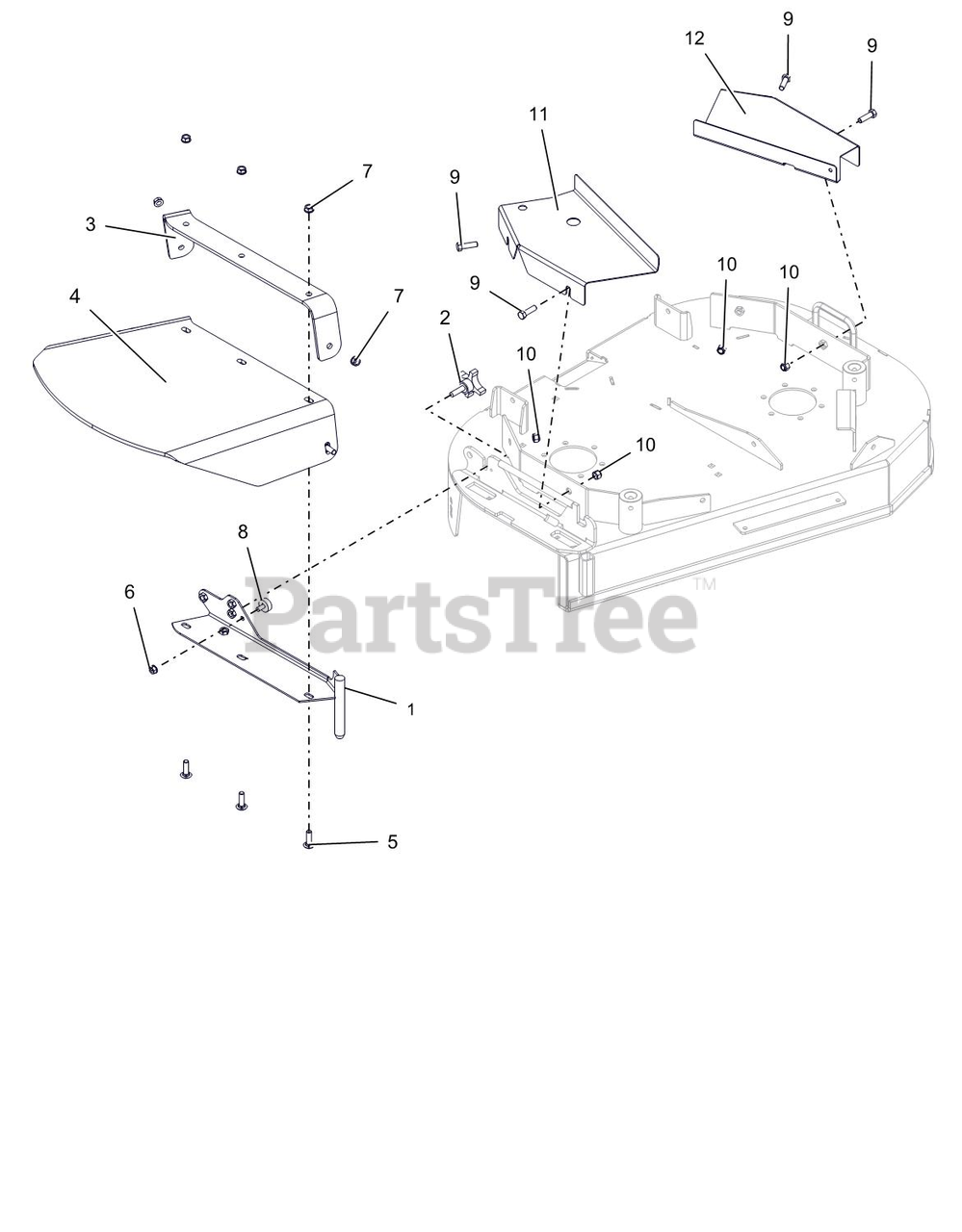

885914 - Gravely Pro-QXT 36" Finish Mower Attachment (SN: 000101 - 000999) Chute And Belt Covers Parts Diagram

Pro-QXT 36" Finish Mower Attachment

Chute And Belt Covers Parts Diagram

  • Title
1

Gravely 03981953

WLDT. DISCHARGE

$88.99

$

Usually ships in 4-12 days

0

2

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

Usually ships in 4-12 days

0

3

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$62.99

$

Usually ships in 4-12 days

0

4

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$

$

Not available

5

Gravely 06200220

BLT,RHSSN-.375X1.25 G5 RIE5230
(Superseded to 06200236)

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06500815

NUT,SPNLK-FLG .312-18 ZC120

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5ZC120

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07533600

BUMPER, RUBBER

$11.99

$

In Stock, only 1 left!

0

9

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500831

NUT,NYL .38-16 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

11

Gravely 09135653

COVER, DECK 36 - RH

$62.99

$

Usually ships in 4-12 days

0

12

Gravely 09135753

COVER, DECK 36 LH

$62.99

$

Usually ships in 4-12 days

0
