885913 - Gravely Pro-QXT 32" Rough-Cut Mower Attachment (SN: 000101 - 000999) Drive Line Parts Diagram

Pro-QXT 32" Rough-Cut Mower Attachment

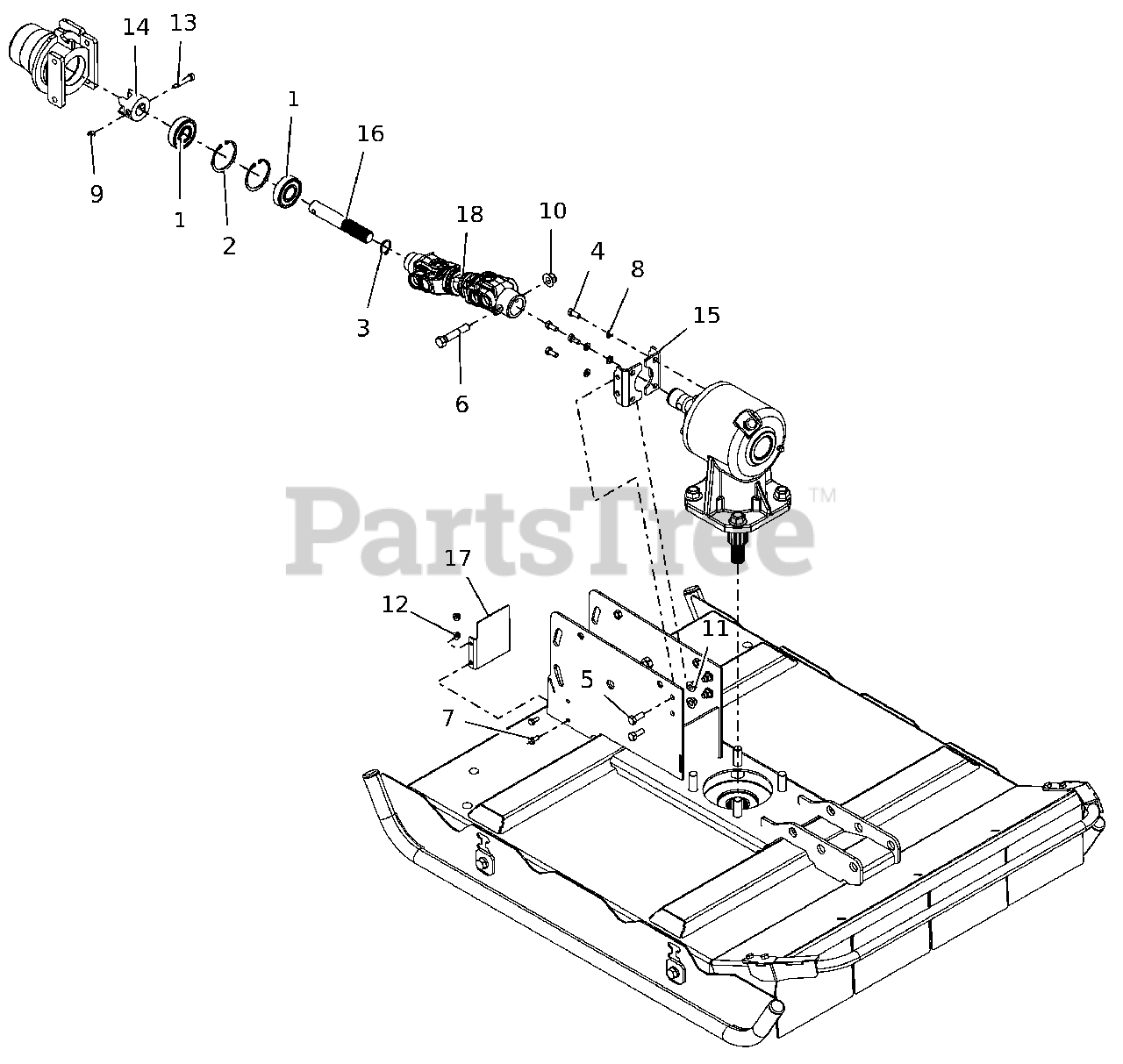

Drive Line Parts Diagram

  • Title

1

Gravely 00200046

BEARING, 6305LLC

$26.99

$

Usually ships in 4-12 days

0

2

Gravely 05702300

RG-RTNG-INT 2.438X.078

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 2 left!

0

4

Gravely 05901704

BLT,HEX .31-18X.75 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 07001817

BOLT, SHEAR 1/2-13 X 2.75

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 05901722

BLT, HEX .25-20X.625 G5 ZCC

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06500802

NUT,NYL M6-1.0 G8.8 ZCC

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 15

0

13

Gravely 07001813

BLT,SHLDR M8X35

$29.99

$

Usually ships in 4-12 days

0

14

Gravely 09125400

CLAW COUPLING

$323.99

$

Usually ships in 4-12 days

0

15

Gravely 09133053

BRKT, GEARBOX

$

$

Not available

16

Gravely 09134400

PTO SHAFT

$90.99

$

Usually ships in 4-12 days

0

17

Gravely 09137753

COVER, REAR

$

$

Not available

18

Gravely 09133900

DRIVE LINE, 32" RC MOWER

$193.99

$

Usually ships in 4-12 days

0
