885912 - Gravely Pro-QXT 32" Snow Blower Attachment (SN: 000101 - 000999) Housing Parts Diagram

Pro-QXT 32" Snow Blower Attachment

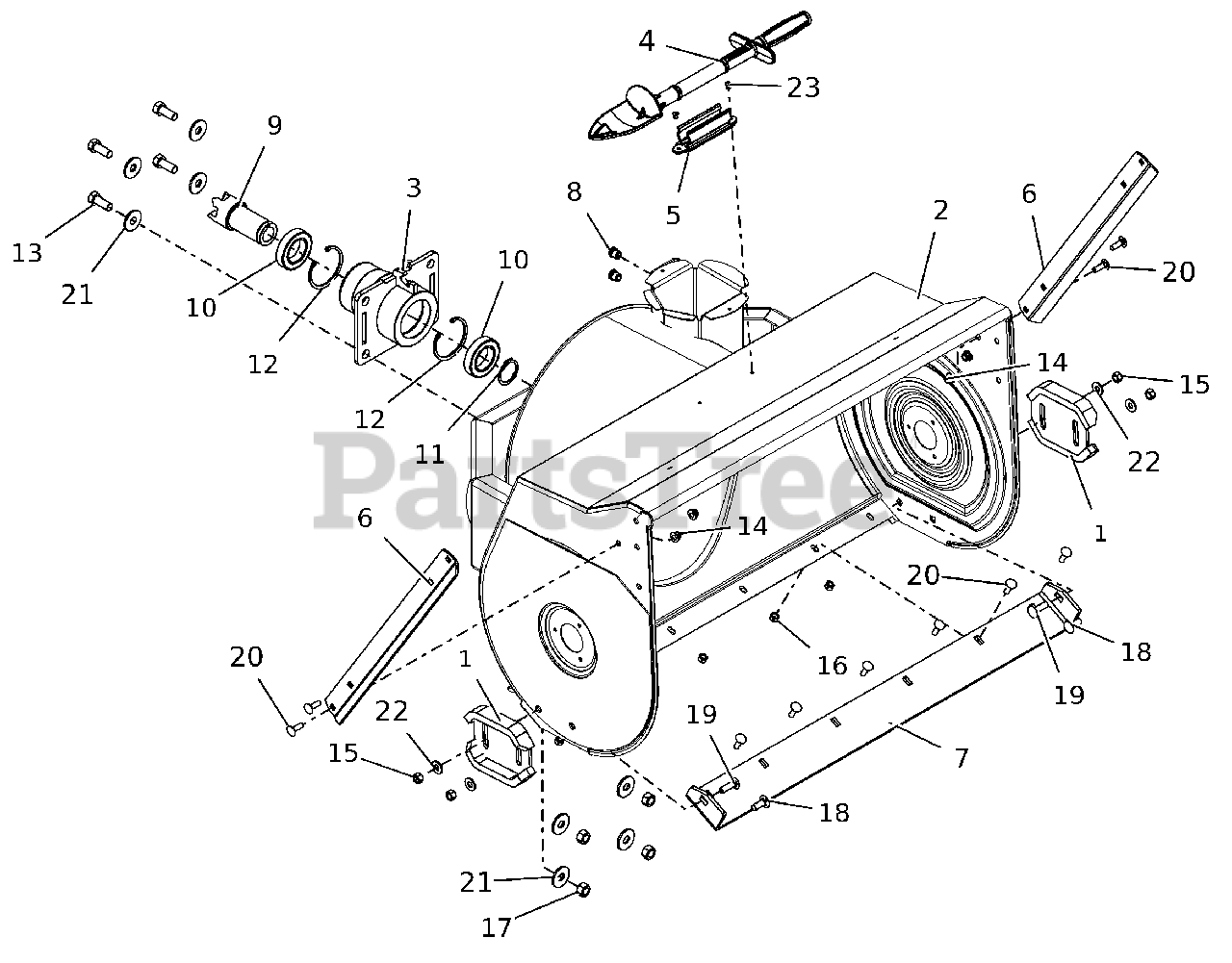

Housing Parts Diagram

  • Title

1

Gravely 04148953

RUNNER, SKID SHOE

$

$

Not available

2

Gravely 52109900

HOUSING, BLOWER-32" W/DECALS

$905.99

$

Usually ships in 4-12 days

0

3

Gravely 09136053

WLDMT. CONNECTOR

$

$

Not available

4

Gravely 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 9

0

5

Gravely 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

6

Gravely 01024253

CUTTER BAR - G

$22.99

$

Usually ships in 4-12 days

0

7

Gravely 05022853

BLADE, 32" SNOW SCRAPER

$

$

Not available

8

Gravely 07001805

NUT,THD,INSERT .38-16 ZC120

$2.49

$

Usually ships in 4-12 days

0

9

Gravely 09136100

COUPLING, TOOTH DRIVE

$

$

Not available

10

Gravely 05400725

BRG-BALL 1.575X2.677X.590 2RLD

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 05700224

RING, RETAINING-EXT 40MMX1.75

$7.49

$

Usually ships in 4-12 days

0

12

Gravely 05700225

RING, RETAINING-INTERNAL

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 05901637

BLT,HEX .50-13X1.25 G5 ZCC

$3.49

$

In Stock, only 1 left!

0

14

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500826

NUT,LK-CTR .31-18 GA ZCC

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500827

NUT,LK-CTR .50-13 GA ZCC

$3.99

$

In Stock, only 2 left!

0

18

Gravely 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06200236

BLT,RHSSN .38-16X1.25 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

20

Gravely 06200231

BLT,RHSN .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06401022

WSHR-FL-STL.511X1.44X.125ZC120

$2.99

$

In Stock, Qty 20+

0

22

Gravely 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 7

0
