885912 - Gravely Pro-QXT 32" Snow Blower Attachment (SN: 000101 - 000999) Discharge Chute Parts Diagram

Pro-QXT 32" Snow Blower Attachment

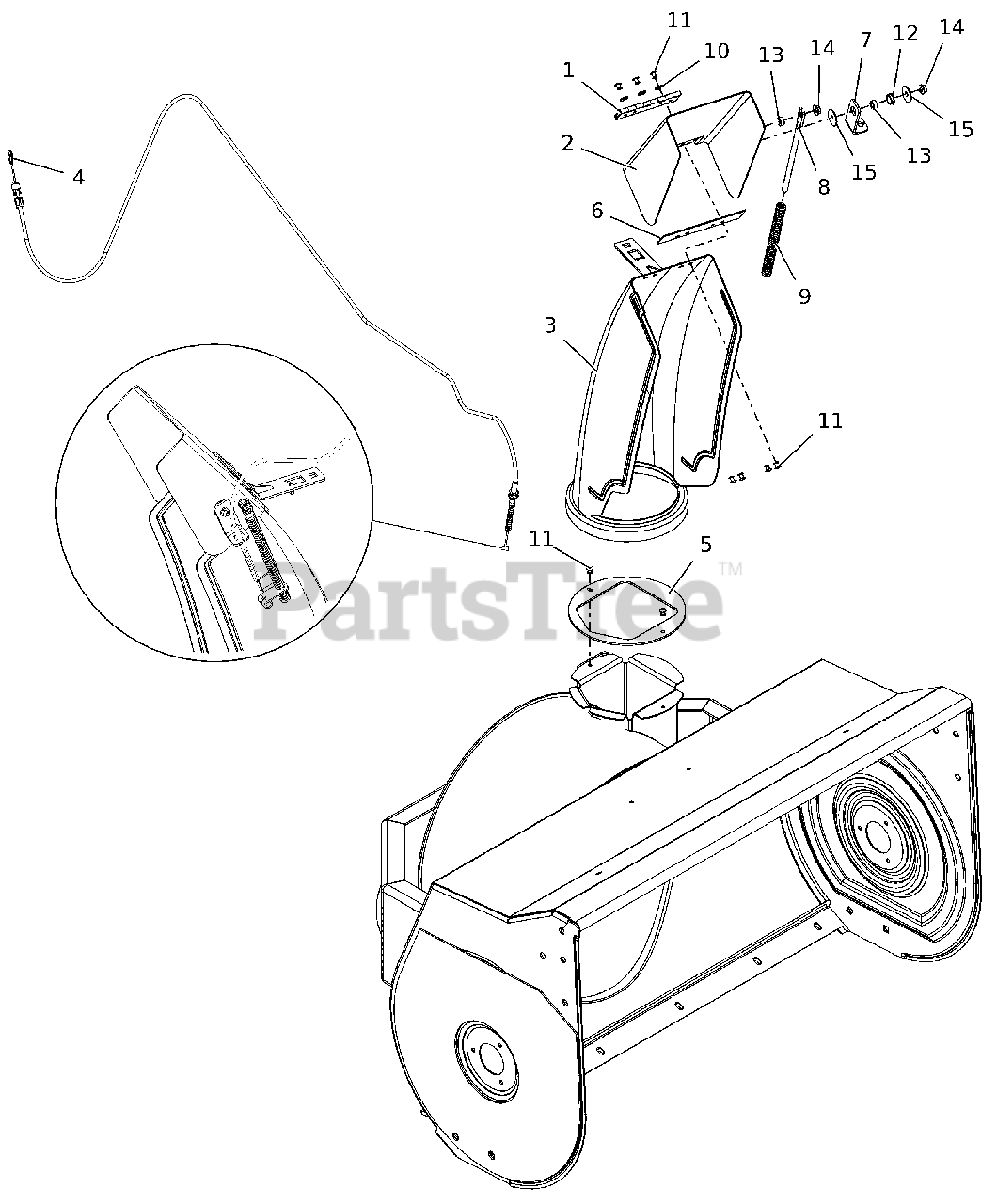

Discharge Chute Parts Diagram

  • Title

1

Gravely 00170100

HINGE

$11.99

$

In Stock, only 1 left!

0

2

Gravely 58502800

KIT,SERVICE - CAP W/ DECAL
(Superseded to 58503100)

$77.99

$

Usually ships in 4-12 days

0

3

Gravely 05016853

WLDMT, 32" DISCHARGE CHUTE

$

$

Not available

4

Gravely 06900614

CABLE, DEFLECTOR DELUXE

$51.99

$

In Stock, only 1 left!

0

5

Gravely 00600100

BAFFLE, DISCHARGE NECK

$12.99

$

Usually ships in 4-12 days

0

6

Gravely 00628400

CAP SEAL 5.50

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 05024653

BRKT,CHUTE,CABLE ANCHOR

$

$

Not available

8

Gravely 05028600

ROD,DEFLECTOR CAP

$

$

Not available

9

Gravely 08300640

SPRING,COMPRESSION

$

$

Not available

10

Gravely 06401029

WSHR-FL-STL .196X.50X.06 ZC120

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, only 3 left!

0

12

Gravely 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 16

0

13

Gravely 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 10

0

14

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06401020

WSHR,FLT .281X1.000X.063 ZCC

$0.99

$

In Stock, Qty 20+

0
