885911 - Gravely Pro-QXT 44" Brush Attachment (SN: 000101 - 000999) Pivot Controls Parts Diagram

Pro-QXT 44" Brush Attachment

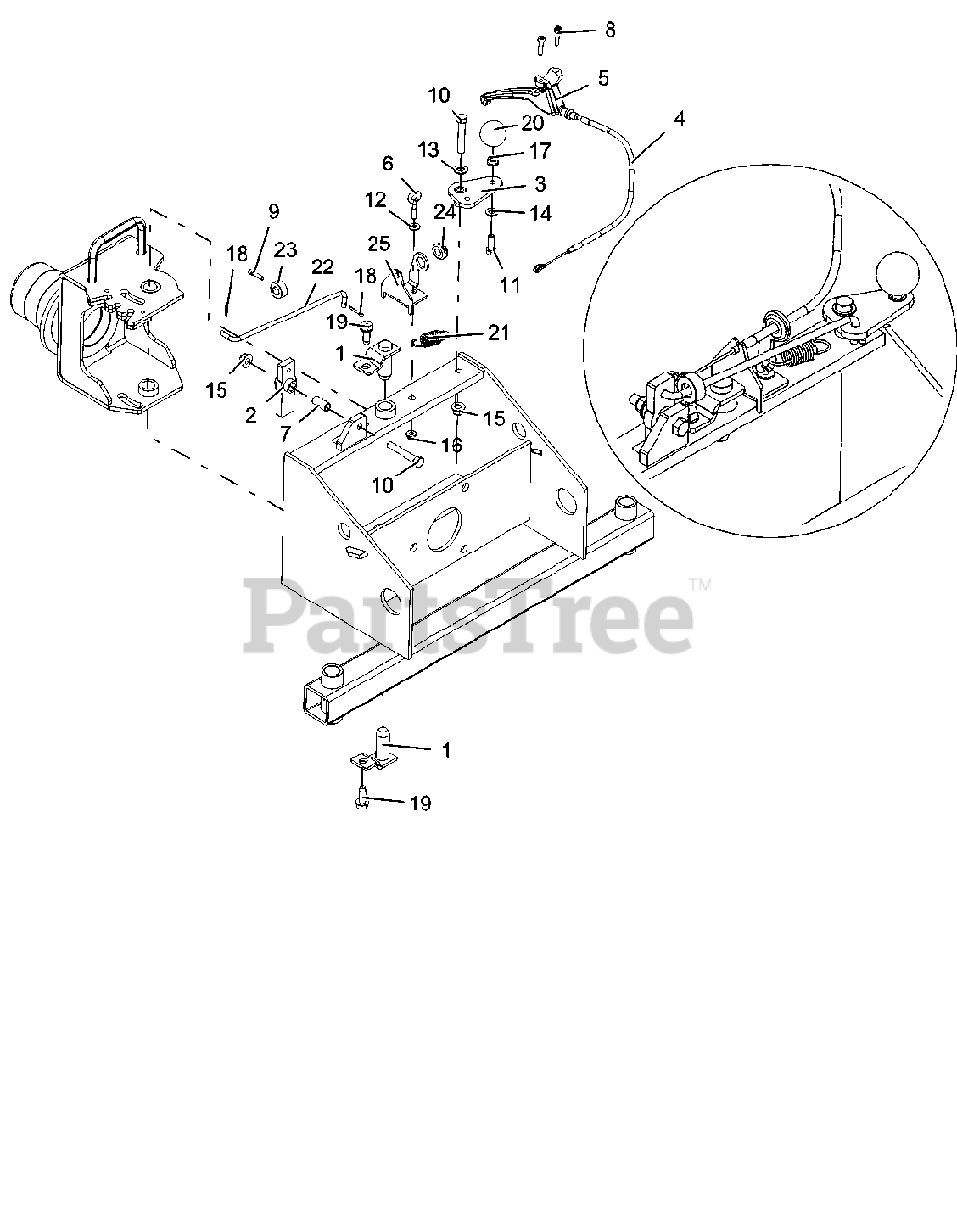

Pivot Controls Parts Diagram

  • Title

1

Gravely 04963400

WLDMT, BRUSH PIVOT PIN

$

$

Not available

2

Gravely 04963653

WLDMT, PIVOT FRAME

$

$

Not available

3

Gravely 08508353

WLDMT,BRKT

$46.99

$

Usually ships in 4-12 days

0

4

Gravely 09126100

CABLE ASSY, BRUSH

$

$

Not available

5

Gravely 09130800

HANDLE, ANGLE CONTROL

$

$

Not available

6

Gravely 00247500

EYEBOLT, ROD HANGER ZC120

$9.99

$

Usually ships in 4-12 days

0

7

Gravely 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05901619

SCR,SKH M6-1.0X25 10.9CRKFCTR

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05901624

SCR, SKH M5-.8X20 12.9ZC120

$1.99

$

Usually ships in 4-12 days

0

10

Gravely 05901640

BLT,HEX .38-16X2.25 G5ZC120

$3.99

$

In Stock, Qty 20+

0

11

Gravely 05901701

BLT,HEX .31-18X1.00 G5ZC120

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06401001

WSHR,FL-STL.281X.62X.065 ZC120

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06401013

WSHR,FL-STL.406X.812X.065ZC120

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06401017

WSHR,FL-STL.344X.688X.065ZC120

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06500726

NUT,LK-NYL-FLG .38-16 G5ZC120

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500813

NUT,LK-NYL-FLG .25-20 G5ZC120

$1.49

$

In Stock, Qty 15

0

17

Gravely 06500815

NUT,SPNLK-FLG .312-18 ZC120

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06700211

PIN,CTR .12X.75EXTPRSQCT ZC120

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 07515900

KNOB, BALL 5/16-18 X 1.5

$21.99

$

In Stock, only 2 left!

0

21

Gravely 08327600

SG-TENS .075X.75X2.25 WLD20.7

$17.99

$

In Stock, only 1 left!

0

22

Gravely 08600800

ROD,LINKAGE

$41.99

$

Usually ships in 4-12 days

0

23

Gravely 09119200

COLLAR, LOCKING REVERSE

$

$

Not available

24

Gravely 09121800

GROMMET, COVER MNT

$

$

Not available

25

Gravely 09126051

CABLE BRKT

$27.99

$

Usually ships in 4-12 days

0
