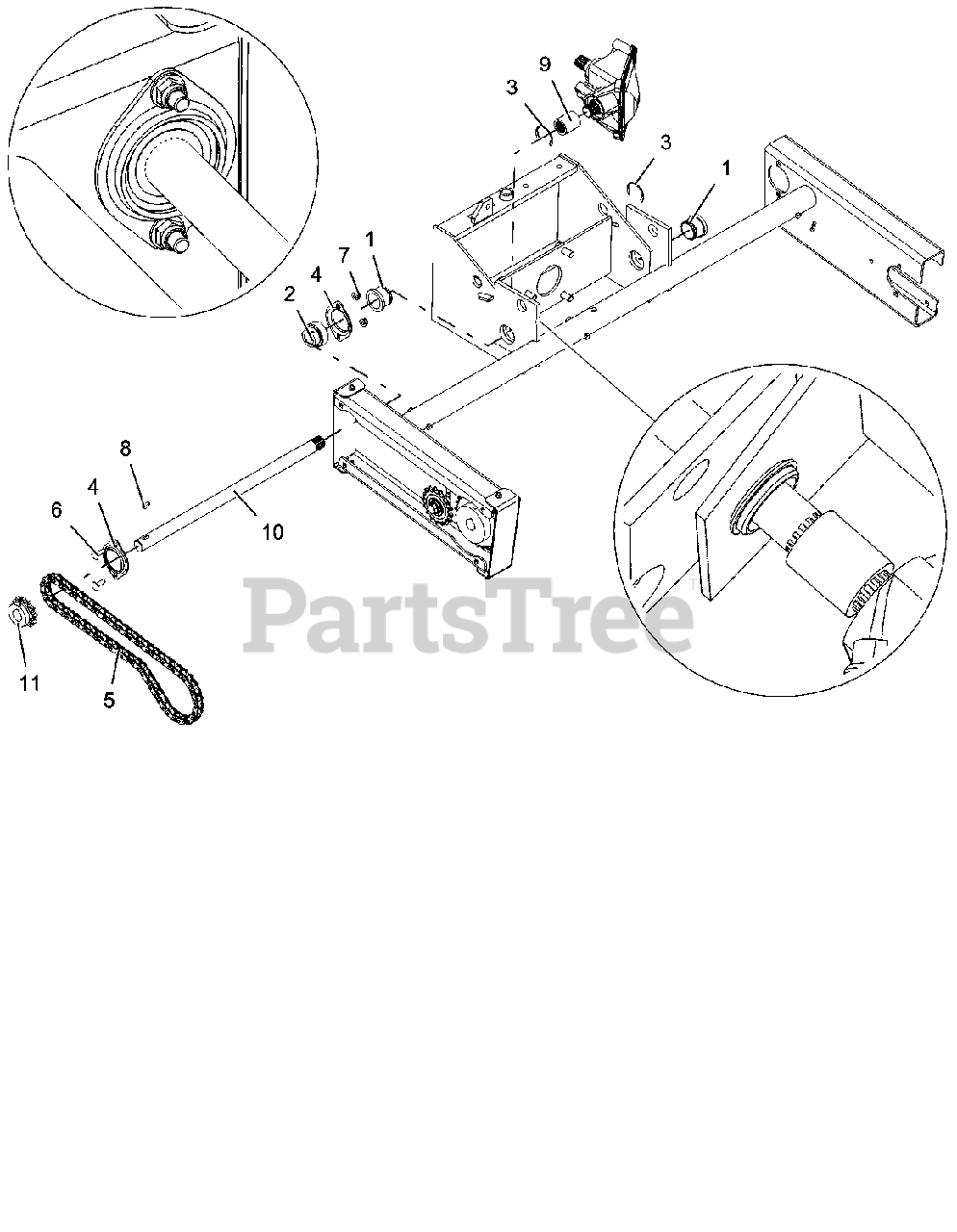

885911 - Gravely Pro-QXT 44" Brush Attachment (SN: 000101 - 000999) Head Drum Shaft Parts Diagram
Pro-QXT 44" Brush Attachment
Head Drum Shaft Parts Diagram
Gravely 04970100
BUSHING
$22.99
$
Usually ships in 4-12 days
Gravely 05426200
BRG/W COLLAR 1.0 X 2.047 X.844
$45.99
$
In Stock, only 2 left!
Gravely 04979800
SHAFT, RING C
$2.49
$
Usually ships in 4-12 days
Gravely 05426100
MTG-FLG 2 HOLE 52MM X 3.75
$11.99
$
Usually ships in 4-12 days
Gravely 04883400
CHAIN, ROLLER 64 PITCHES #50
$38.99
$
Usually ships in 4-12 days
Gravely 06200231
BLT,RHSN .31-18X1.00 G5 ZC120
$1.49
$
In Stock, Qty 20+
Gravely 06500809
NUT,LK-NYL-FLG .31-18 G5ZC120
$1.49
$
In Stock, Qty 20+
Gravely 06601200
KEY-WDRF .25X.750X.313 SAE91
$2.99
$
In Stock, Qty 20+
Gravely 07017100
CPLG 1.6X1.37
$55.99
$
Usually ships in 4-12 days
Gravely 08509200
SHAFT, OUTPUT SPLINE
$89.99
$
Usually ships in 4-12 days
Gravely 08509800
SPRKT,
$87.99
$
Usually ships in 4-12 days
