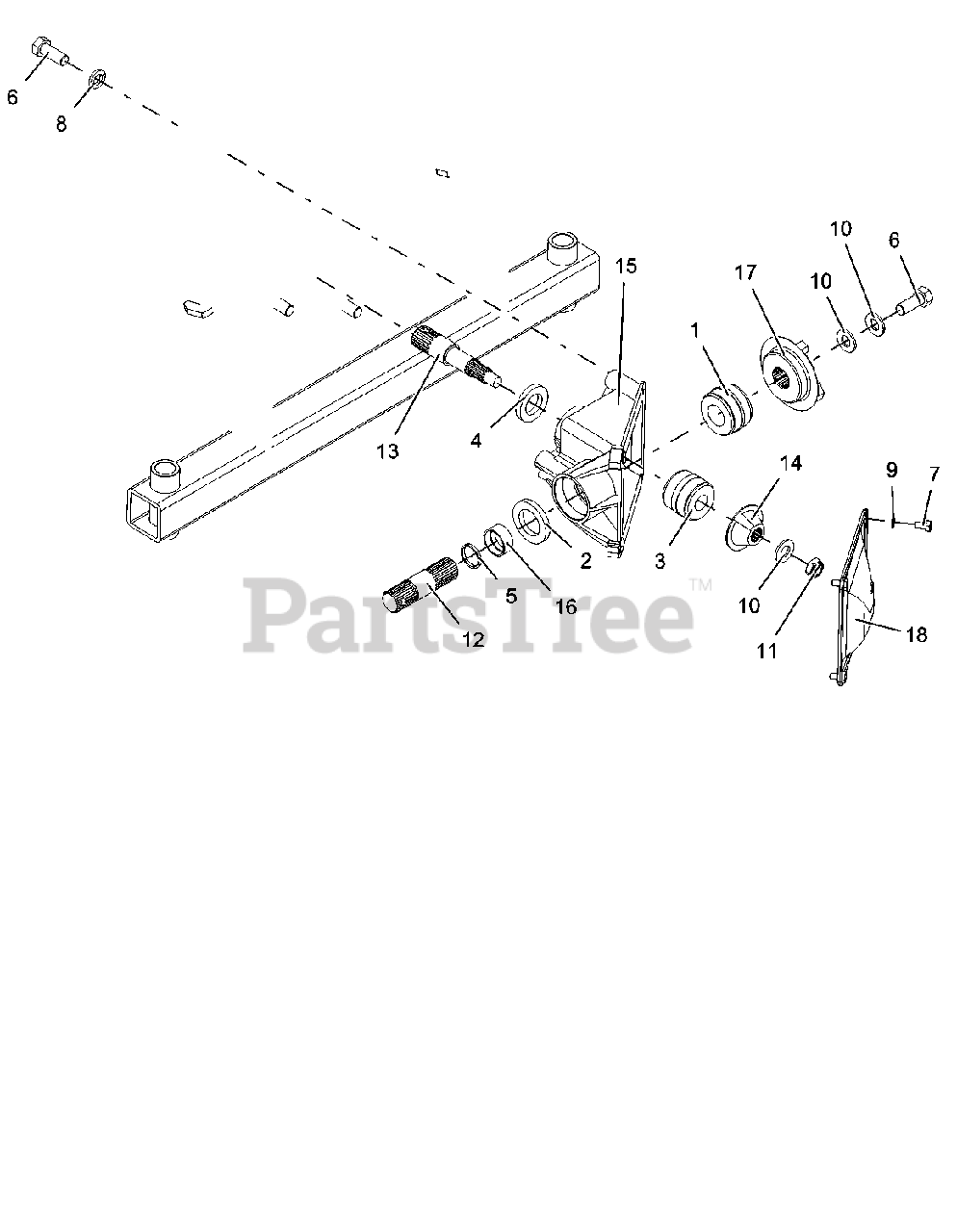

885911 - Gravely Pro-QXT 44" Brush Attachment (SN: 000101 - 000999) Gear Case Parts Diagram

Pro-QXT 44" Brush Attachment

Gear Case Parts Diagram

  • Title

1

Gravely 05419300

BRG-ASM 1.000X1.980X1.243

$104.99

$

Usually ships in 4-12 days

0

2

Gravely 05613700

SEAL 1.250X1.983X.250

$14.99

$

In Stock, only 1 left!

0

3

Gravely 05419400

BRG-ASM .75X1.781X1.499

$105.99

$

Usually ships in 4-12 days

0

4

Gravely 05615500

SEAL 1.000X1.690X.250

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 05711600

RG-RTNG EXT 1.106X.95

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 05901637

BLT,HEX .50-13X1.25 G5ZC120

$3.49

$

In Stock, only 1 left!

0

7

Gravely 05901705

BLT,HEX .25-20X.50 G5ZC120

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06300115

WSHR,LK-SPRG .50X.125 ZC120

$1.49

$

In Stock, Qty 16

0

9

Gravely 06401009

WSHR, LK-SPRG .25X.062 ZC120

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06401015

WSHR,FL-STL.531X1.06X.095ZC120

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06500818

NUT, LK-NYL-JAM .50-20 ZC120

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 08502700

SHFT,DRIVE

$155.99

$

Usually ships in 4-12 days

0

13

Gravely 08508800

SHFT,

$135.99

$

Usually ships in 4-12 days

0

14

Gravely 08585800

GR,BEVEL

$266.99

$

Usually ships in 4-12 days

0

15

Gravely 08700400

CSTG,GEAR BOX

$298.99

$

Usually ships in 4-12 days

0

16

Gravely 08700500

BUSH F 1.00X1.25X1.25 ST

$23.99

$

Usually ships in 4-12 days

0

17

Gravely 08790300

GR,BEVEL

$240.99

$

Usually ships in 4-12 days

0

18

Gravely 08860500

CVR,GEAR HOUSING

$43.99

$

Usually ships in 4-12 days

0
