885911 - Gravely Pro-QXT 44" Brush Attachment (SN: 000101 - 000999) Frame Parts Diagram

Pro-QXT 44" Brush Attachment

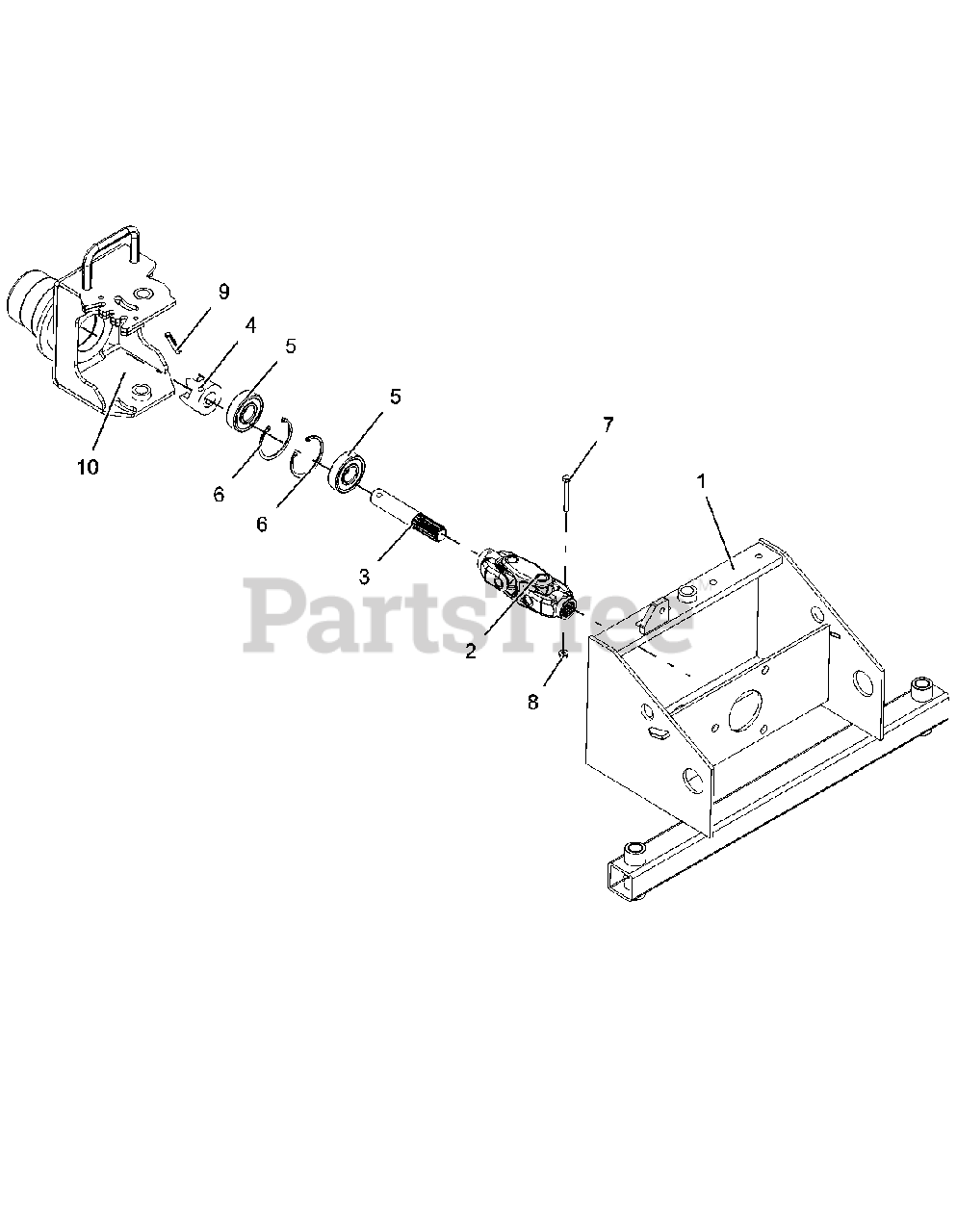

Frame Parts Diagram

  • Title
1

Gravely 04963753

WLDMT, BRUSH FRAME

$290.99

$

Usually ships in 4-12 days

0

2

Gravely 08587200

ASM, JOINT DOUBLE

$517.99

$

Usually ships in 4-12 days

0

3

Gravely 09125300

PTO SHAFT

$

$

Not available

4

Gravely 09125400

CLAW COUPLING

$258.99

$

Usually ships in 4-12 days

0

5

Gravely 00200046

BEARING, 6305LLC

$

$

Not available

6

Gravely 05702300

RG-RTNG-INT 2.438X.078

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 05901638

BLT,HEX .25-20X2.25 G8ZC120

$3.99

$

In Stock, only 2 left!

0

8

Gravely 06500813

NUT,LK-NYL-FLG .25-20 G5ZC120

$1.49

$

In Stock, Qty 15

0

9

Gravely 05800007

PIN-ROLL 8MM X 50MM

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 09125253

PIVOT HOUSING WLDMT

$452.99

$

Usually ships in 4-12 days

0
