885634 - Murray Snow Thrower Kit for Rear-Discharge Lawn Tractor Snowthrower Kit Parts Diagram

Snow Thrower Kit for Rear-Discharge Lawn Tractor

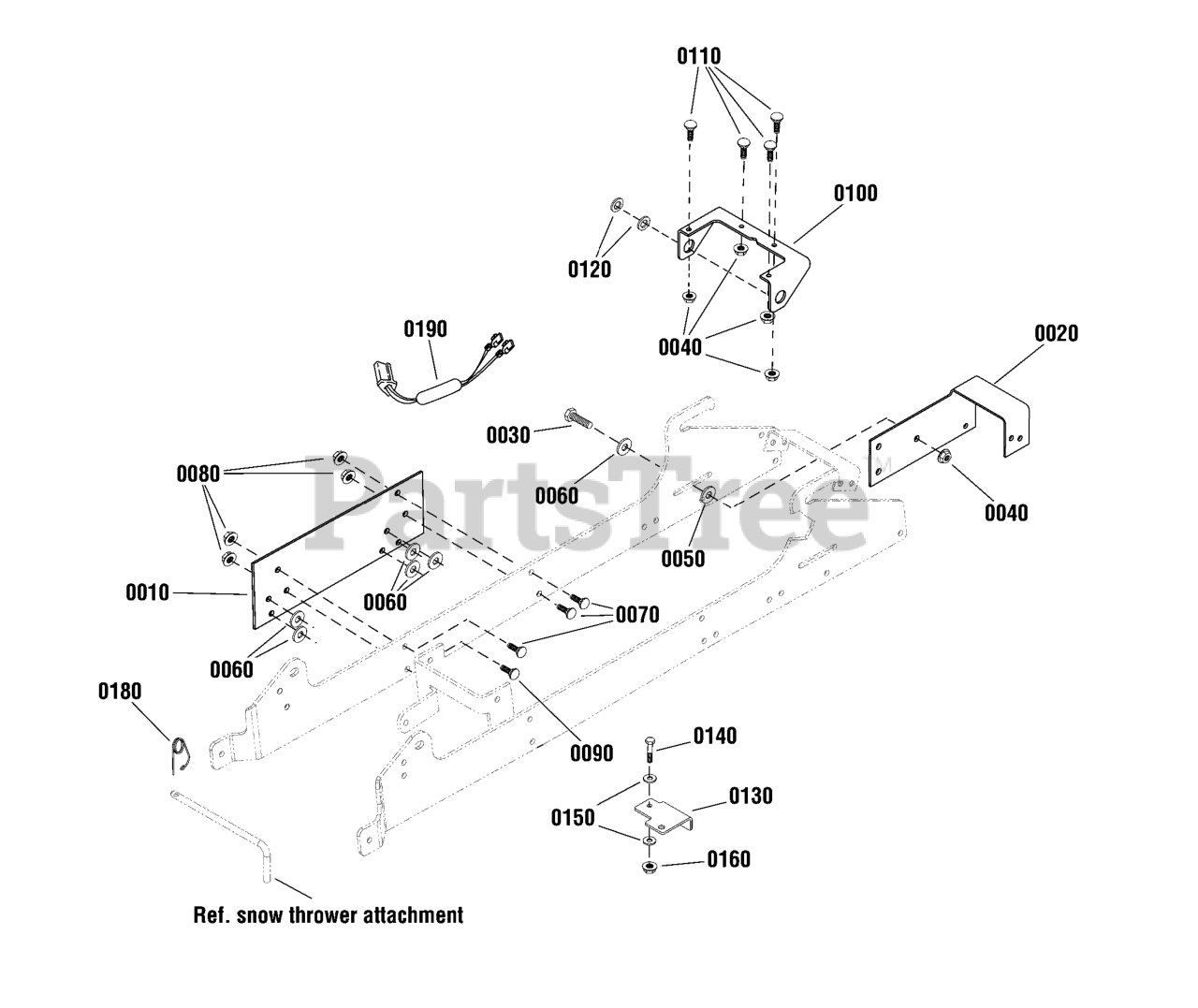

Snowthrower Kit Parts Diagram

  • Title

0010

Murray 885635BMYP

PLATE, Snowthrower-Front

$92.99

$

Usually ships in 2-12 days

0

0020

Murray 885636BMYP

PLATE, Snowthrower-Rear

$136.99

$

Usually ships in 2-12 days

0

0030

Murray 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0040

Murray 1931277SM

NUT, Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0060

Murray 703346

Spacer, 7/8

$9.99

$

Usually ships in 2-12 days

0

0070

Murray 1922605SM

CAPSCREW, Hex Head, 3/8-16 x 1 1/4
(Superseded to 703969)

$4.99

$

Usually ships in 2-12 days

0

0080

Murray 1928352SM

NUT, Hex Flange, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

0090

Murray 1960702SM

BOLT, Carriage, 3/8-16 x 1
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

0100

Murray 885637BMYP

BRACKET, Rear

$79.99

$

Usually ships in 2-12 days

0

0110

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0120

Murray 2924366YP

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

0130

Murray 885881BMYP

BRACKET, Snowblower Spring

$43.99

$

Usually ships in 2-12 days

0

0140

Murray 1925688SM

CAPSREW, Hex Head, 1/4-20 x 3
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

0150

Murray 703224

WASHER, .261

$21.99

$

In Stock, only 2 left!

0

0160

Murray 720146

NUT, Hex Flange, 1/4-20
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

0180

Murray 2176012SM

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

0190

Murray 885657YP

HARNESS, Jumper

$35.99

$

Usually ships in 2-12 days

0
