885045 - Gravely Rapid Safety Mulcher (SN: 000101 & Above) Safety Mulcher Parts Diagram

Rapid Safety Mulcher

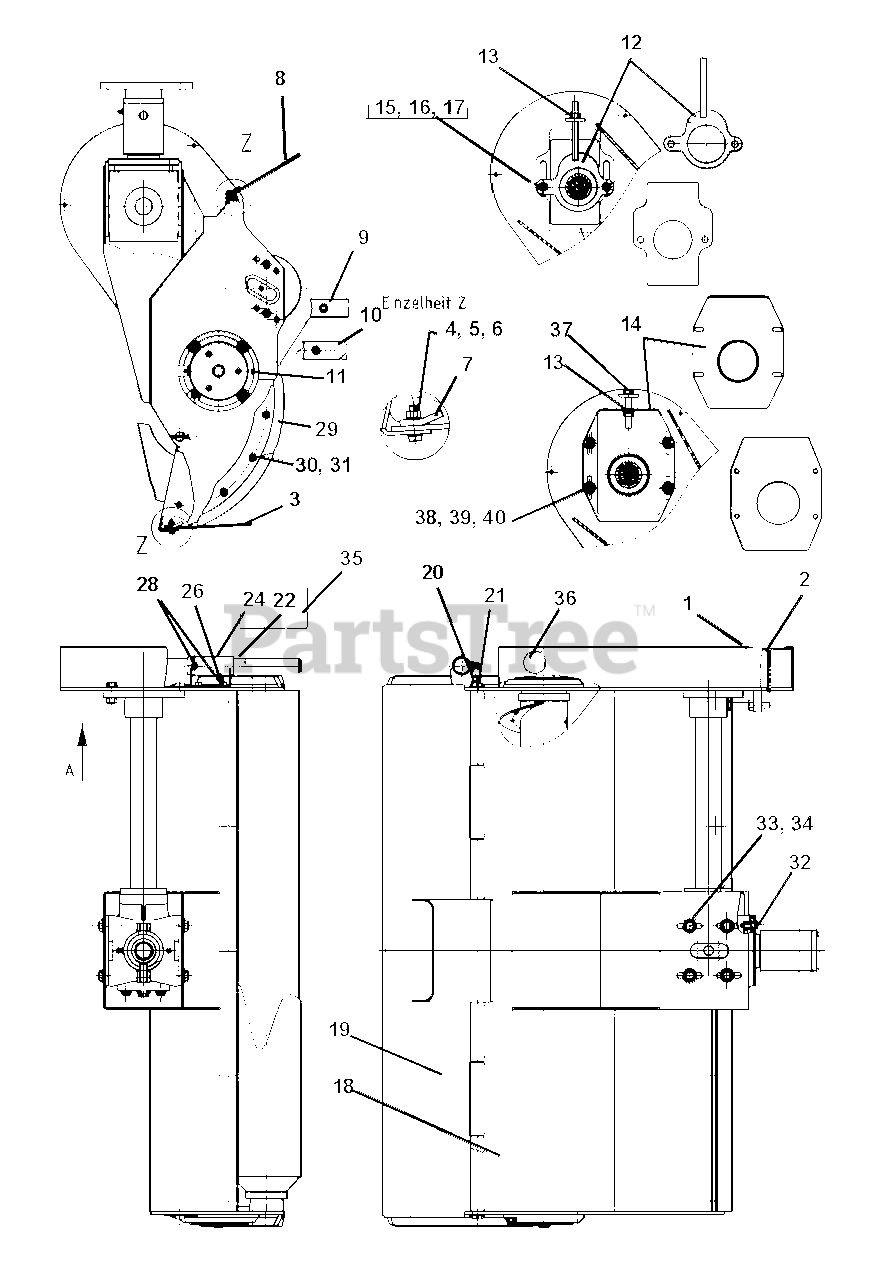

Safety Mulcher Parts Diagram

  • Title

1

Gravely 00436300

Cover, V-Belt

$

$

Not available

2

Gravely 00476400

Bolt, Hex Head

$

$

Not available

3

Gravely 00476500

Protection Front

$

$

Not available

4

Gravely 00476600

Bolt, Hex Head

$

$

Not available

5

Gravely 00477000

Nut, Hex

$

$

Not available

6

Gravely 00477300

Washer

$

$

Not available

7

Gravely 00477600

Ledge

$

$

Not available

8

Gravely 00477900

Protection Rear

$

$

Not available

9

Gravely 00478200

Plate, Metal

$

$

Not available

10

Gravely 00478500

Plate, Metal

$

$

Not available

11

Gravely 00478700

Screw, Flat Head

$

$

Not available

12

Gravely 00478800

Support

$

$

Not available

13

Gravely 00478900

Nut, Hex

$

$

Not available

14

Gravely 00479400

Support

$

$

Not available

15

Gravely 00481400

Bolt, Hex Head

$

$

Not available

16

Gravely 00482000

Nut, Hex

$

$

Not available

17

Gravely 00482200

Washer

$

$

Not available

18

Gravely 00482900

Housing

$

$

Not available

19

Gravely 00488900

Cover

$

$

Not available

20

Gravely 00489000

Pin, Hinge

$

$

Not available

21

Gravely 00491100

Splint

$

$

Not available

22

Gravely 00492100

Leg, Supporting

$

$

Not available

23

Gravely 00492500

Leg, Supporting

$

$

Not available

24

Gravely 00498800

Holder

$

$

Not available

25

Gravely 00582500

Holder

$

$

Not available

26

Gravely 00584800

Bolt, Hex Head

$

$

Not available

27

Gravely 00584900

Bolt, Hex Head

$

$

Not available

28

Gravely 00585200

Bolt

$

$

Not available

29

Gravely 00586200

Skid, Landing

$

$

Not available

30

Gravely 00587800

Screw, Flat Head

$

$

Not available

31

Gravely 00587900

Nut, Self Locking Hex

$

$

Not available

32

Gravely 00592700

Bolt, Hex Head

$

$

Not available

33

Gravely 00601000

Bolt, Hex Head

$

$

Not available

34

Gravely 02004600

Washer

$

$

Not available

35

Gravely 02004700

Leg, Supporting

$

$

Not available

36

Gravely 02004800

Cover, Plastic

$

$

Not available

37

Gravely 02004900

Bolt, Hex Head

$

$

Not available

38

Gravely 02005000

Bolt, Hex Head

$

$

Not available

39

Gravely 02005100

Washer

$

$

Not available

40

Gravely 02005200

Nut, Self Locking Hex

$

$

Not available
