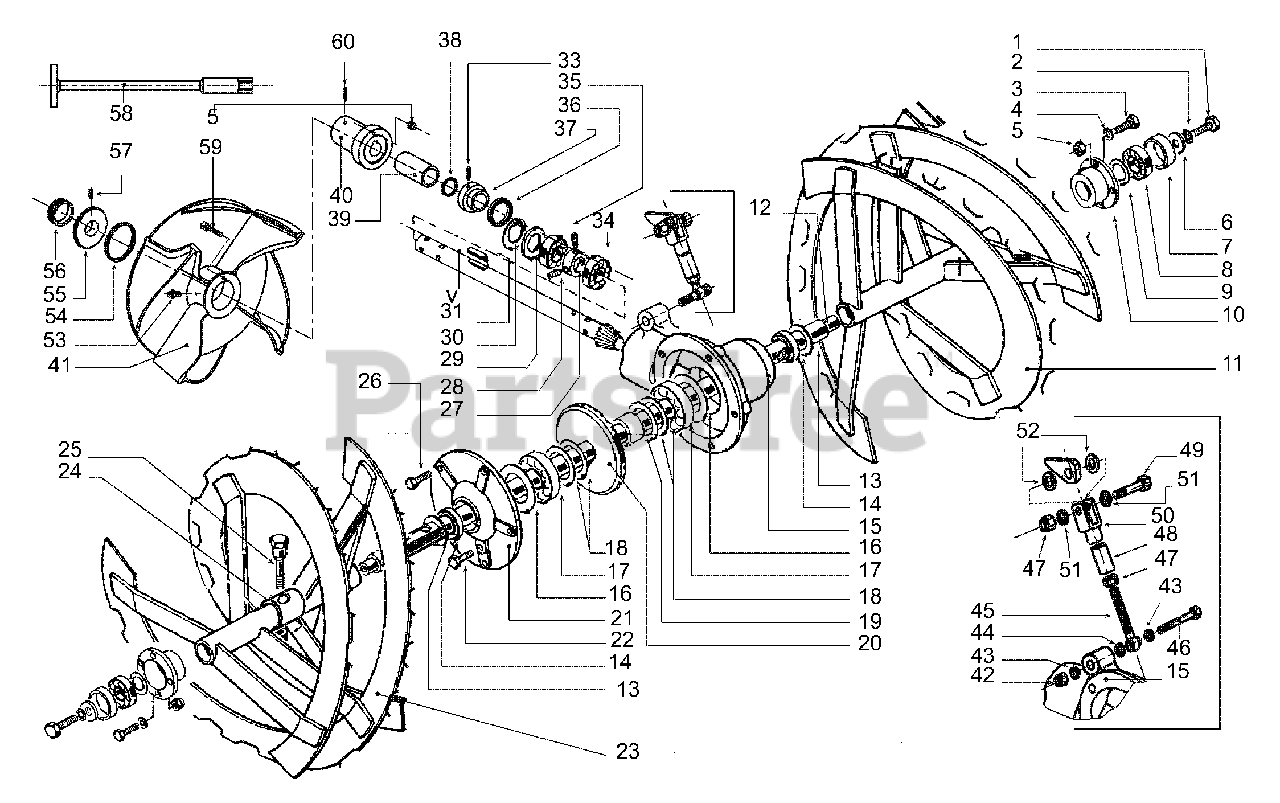

885042 - Gravely Rapid Sno-Thro Attachment Auger And Impeller Parts Diagram

Rapid Sno-Thro Attachment

Auger And Impeller Parts Diagram

  • Title

1

Gravely 00820800

Hexagonal Head Screw M8 x 25 - Din 933

$

$

Not available

2

Gravely 00820900

Inner Denticulated Washer M8 - Din 6798j

$

$

Not available

3

Gravely 00821000

Hexagonal Head Screw M6 x 20 - Din 933

$

$

Not available

4

Gravely 00821100

Washer 6.6 x 18 x 2 - UNI 6593

$

$

Not available

5

Gravely 00816500

Self Locking Nut M6 - Din 982

$

$

Not available

6

Gravely 00821200

Washer 8.5 x 28 x 5

$

$

Not available

7

Gravely 00821300

Distance Ring 41 x 46.5 x 13

$

$

Not available

8

Gravely 00821400

Bearing 6204 2RS 20 x 47 x 14

$

$

Not available

9

Gravely 00821500

Ring 20.3 x 37.5 x 0.3

$

$

Not available

10

Gravely 00821600

Support For Auger Shaft

$

$

Not available

11

Gravely 00821700

Right Auger

$

$

Not available

12

Gravely 00821800

Auger Shaft

$

$

Not available

13

Gravely 00821900

Washer 30.3 x 45x2

$

$

Not available

14

Gravely 00822000

Oil Seal 30 x 45 x 8

$

$

Not available

15

Gravely 00822100

Gear Box

$

$

Not available

16

Gravely 00822200

Ring 40 x 61.5 x 1

$

$

Not available

17

Gravely 00822300

Bearing 62046 ZZ - 30 x 62 x 16

$

$

Not available

18

Gravely 00822400

Ring 30.5 x 50 x 0.2

$

$

Not available

19

Gravely 00822500

Distance Ring 30 x 40 x 25

$

$

Not available

20

Gravely 00822600

Gear Wheel

$

$

Not available

21

Gravely 00822700

Gear Box Cover

$

$

Not available

22

Gravely 00822800

Hexagonal head screw M8 x 16 - DIN 933

$

$

Not available

23

Gravely 00822900

Left auger

$

$

Not available

24

Gravely 00819200

Self Locking Nut M6 - Din 982
(Superseded to 08628600)

$

$

Not available

25

Gravely 08696400

Safety Bolt For Auger

$

$

Not available

26

Gravely 00823000

Hexagonal Head Screw M8 x 35 - Din 933

$

$

Not available

27

Gravely 00823100

Fastening Ring 25 x 37 x 15

$

$

Not available

28

Gravely 00823200

Grub - Screw M8 x 8 - Din 914-45h

$

$

Not available

29

Gravely 00823300

Distance Ring 38 x 51.8 x 3.3

$

$

Not available

30

Gravely 00823400

Snap Ring Ø52 - Din 472-1

$

$

Not available

31

Gravely 00823500

Key 8 x 7 x 30

$

$

Not available

32

Gravely 00823600

Pinion

$

$

Not available

33

Gravely 00823700

Grub - Screw M8 x 10

$

$

Not available

34

Gravely 00823800

Bearing 3205 2rs - 25 x 52 x 20.6

$

$

Not available

35

Gravely 00823900

Bearing 6205 2rs - 25 x 52 x 15

$

$

Not available

36

Gravely 00824000

Oil Seal 35 x 52 x 7

$

$

Not available

37

Gravely 00824100

Guard Ring For Oil Seal

$

$

Not available

38

Gravely 00824200

O-ring 132

$

$

Not available

39

Gravely 00824300

Spacing Bar

$

$

Not available

40

Gravely 00824400

Hub

$

$

Not available

41

Gravely 00824500

Second Stage Impeller (Ø 370 mm. Left Hand, 3 Buckets)

Note: (Ø 370 mm. Left Hand, 3 Buckets)

$

$

Not available

42

Gravely 00824600

Self Locking Nut M10 - Din 985

$

$

Not available

43

Gravely 00824700

Washer Ø 10.5 x 21 x 2 - Din 125a

$

$

Not available

44

Gravely 00824800

Washer Ø 10.5 x 21 x 1

$

$

Not available

45

Gravely 00824900

Eye Tie Rod M12 x 95 - Hole Ø 10

$

$

Not available

46

Gravely 00825000

Hexagonal Head Screw M10 x 53

$

$

Not available

47

Gravely 00825100

Self Locking Nut M12 - Din 985

$

$

Not available

48

Gravely 00825200

Spacer Ø 12.4 x 20 x 38

$

$

Not available

49

Gravely 00825300

Hexagonal Head Screw M12 x 43

$

$

Not available

50

Gravely 00825400

Clevis M12

$

$

Not available

51

Gravely 00820000

Washer Ø 13 x 24 x 2,5

$

$

Not available

52

Gravely 00825500

Washer Ø 13 x 28 x 1

$

$

Not available

53

Gravely 00825600

Grease Nipple M8

$

$

Not available

54

Gravely 00825700

Or 165

$

$

Not available

55

Gravely 00825800

Distance Ring

$

$

Not available

56

Gravely 00825900

V. Ring A 38

$

$

Not available

57

Gravely 00826000

Grub-Screw M8 x 6 - Uni 5923

$

$

Not available

58

Gravely 00865400

Hexagonal Socket Wrench (10mm)

Note: (10mm)

$

$

Not available

59

Gravely 00816200

Hexagonal Head Screw M6 x 35 - Din 931

$

$

Not available

60

Gravely 00826100

Grub-screw M12-1.25 x 9

$

$

Not available
