885037 - Gravely 36" Deck for 2-Wheel Tractor (SN: 000101 & Above) MOWER FRAME Parts Diagram

36" Deck for 2-Wheel Tractor

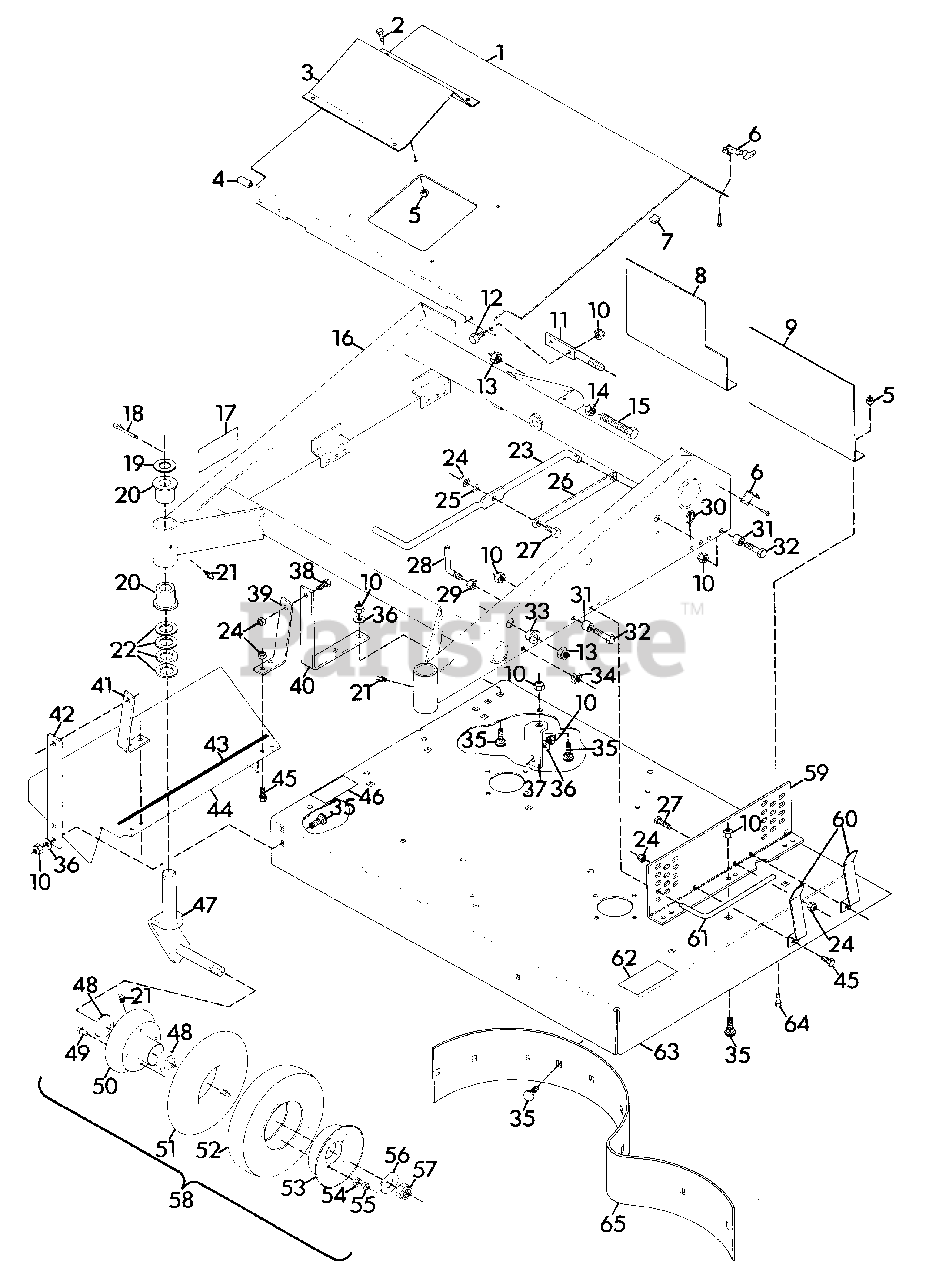

MOWER FRAME Parts Diagram

  • Title
1

Gravely 041218

SHIELD
(Superseded to 08753600)

$

$

Not available

2

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

3

Gravely 041558

COVER, HOLE
(Superseded to 08754900)

$

$

Not available

4

Gravely 041554

STRIP, BUMPER
(Superseded to 08754500)

$

$

Not available

5

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 041553

LATCH, FLEXIBLE DRAW
(Superseded to 07526100)

$

$

Not available

7

Gravely 040176

STOP
(Superseded to 07525100)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 041557

SHIELD, REAR R.H.
(Superseded to 08754800)

$

$

Not available

9

Gravely 041556

SHIELD, REAR L.H.
(Superseded to 08754700)

$

$

Not available

10

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

11

Gravely 041471

BRACKET, HINGE
(Superseded to 08876400)

$

$

Not available

12

Gravely 180121

BOLT, HEX 3/8-16X.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

13

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 120238

NUT, JAM 1/2-13 HEX
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 013410

BOLT, HEX 1/2-13X3.00 ALL THD.
(Superseded to 07013900)

$

$

Not available

16

Gravely 041203

WELDMENT, MOWER FRAME
(Superseded to 08752800)

$159.99

$

Usually ships in 4-12 days

0

17

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

18

Gravely 103409

PIN, COTTER .187X1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

19

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

20

Gravely 018355

BUSHING, PIVOT
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

21

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

22

Gravely 041559

WASHER, FLAT 1.0X1.5X.125
(Superseded to 06428000)

$

$

Not available

23

Gravely 041908

HANDLE, LIFT
(Superseded to 08876600)

$

$

Not available

24

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 041909

STRAP, LIFT
(Superseded to 08757800)

$

$

Not available

27

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 013457

HANDLE, ADJUSTING
(Superseded to 08597900)

$102.99

$

In Stock, only 1 left!

0

29

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 023468

PIN, KLIK
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 021076

BUSHING .391X.622X.670
(Superseded to 08902300)

$27.99

$

In Stock, only 2 left!

0

32

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

33

Gravely 034738

BUSHING, .513X.750X.625
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

34

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

36

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 041228

BRACKET
(Superseded to 08812000)

$5.99

$

Usually ships in 4-12 days

0

38

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

39

Gravely 041198

BRACKET, CHUTE REAR
(Superseded to 08752700)

$

$

Not available

40

Gravely 041195

BRACKET
(Superseded to 08752400)

$

$

Not available

41

Gravely 041197

BRACKET, CHUTE FRONT
(Superseded to 08752600)

$

$

Not available

42

Gravely 041196

BRACKET
(Superseded to 08752500)

$

$

Not available

43

Gravely 038769

STRIPE
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

44

Gravely 038952

CHUTE, DISCHARGE
(Superseded to 04908453)

$77.99

$

Usually ships in 4-12 days

0

45

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

47

Gravely 041204

WELDMENT, CASTER FORK
(Superseded to 21257200)

$

$

Not available

48

Gravely 037823

BEARING, GAUGE WHEEL
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

49

Gravely 181637

BOLT, HEX 3/8-24X.75
(Superseded to 21059900)

$5.49

$

In Stock, only 1 left!

0

50

Gravely 037825

WHEEL, HALF WITH TUBE
(Superseded to 20637900)

$

$

Not available

51

Gravely 037826

TUBE, INNER
(Superseded to 20638000)

$43.99

$

In Stock, only 2 left!

0

52

Gravely 037827

TIRE, GAUGE WHEEL
(Superseded to 20638100)

$

$

Not available

53

Gravely 037824

WHEEL, HALF PLAIN
(Superseded to 20637800)

$

$

Not available

54

Gravely 131099

WASHER, LOCK 3/8 SP HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

55

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

56

Gravely 131017

WASHER, FLAT .812X1.496X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

57

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

58

Gravely 037797

WHEEL, GAUGE
(Superseded to 20636900)

$

$

Not available

59

Gravely 038515

BRACKET, MOWER SUPPORT
(Superseded to 08927853)

$103.99

$

Usually ships in 4-12 days

0

NS

Gravely 038516

BRACKET, MOWER SUPPORT
(Superseded to 08927953)

$103.99

$

Usually ships in 4-12 days

0

60

Gravely 041201

SPRING, PIN
(Superseded to 08876100)

$

$

Not available

61

Gravely 038514

PIN, MOWER LOCKING
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

62

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

63

Gravely 041231

WELDMENT, 36" DECK
(Superseded to 08753800)

$

$

Not available

64

Gravely 180020

BOLT, HEX 1/4-20X.750
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

65

Gravely 041229

SCROLL
(Superseded to 08812100)

$

$

Not available

NS

Gravely 010697

DECAL, COMMERCIAL FRONT
(Superseded to 05216500)

$

$

Not available

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0

NS

Gravely 042192

DECAL, BELT DIAGRAM
(Superseded to 05210600)

$

$

Not available
