885027 - Gravely Sulky Steer for 2-Wheel Tractor (SN: 000101 & Above) STEERING SULKY Parts Diagram

Sulky Steer for 2-Wheel Tractor

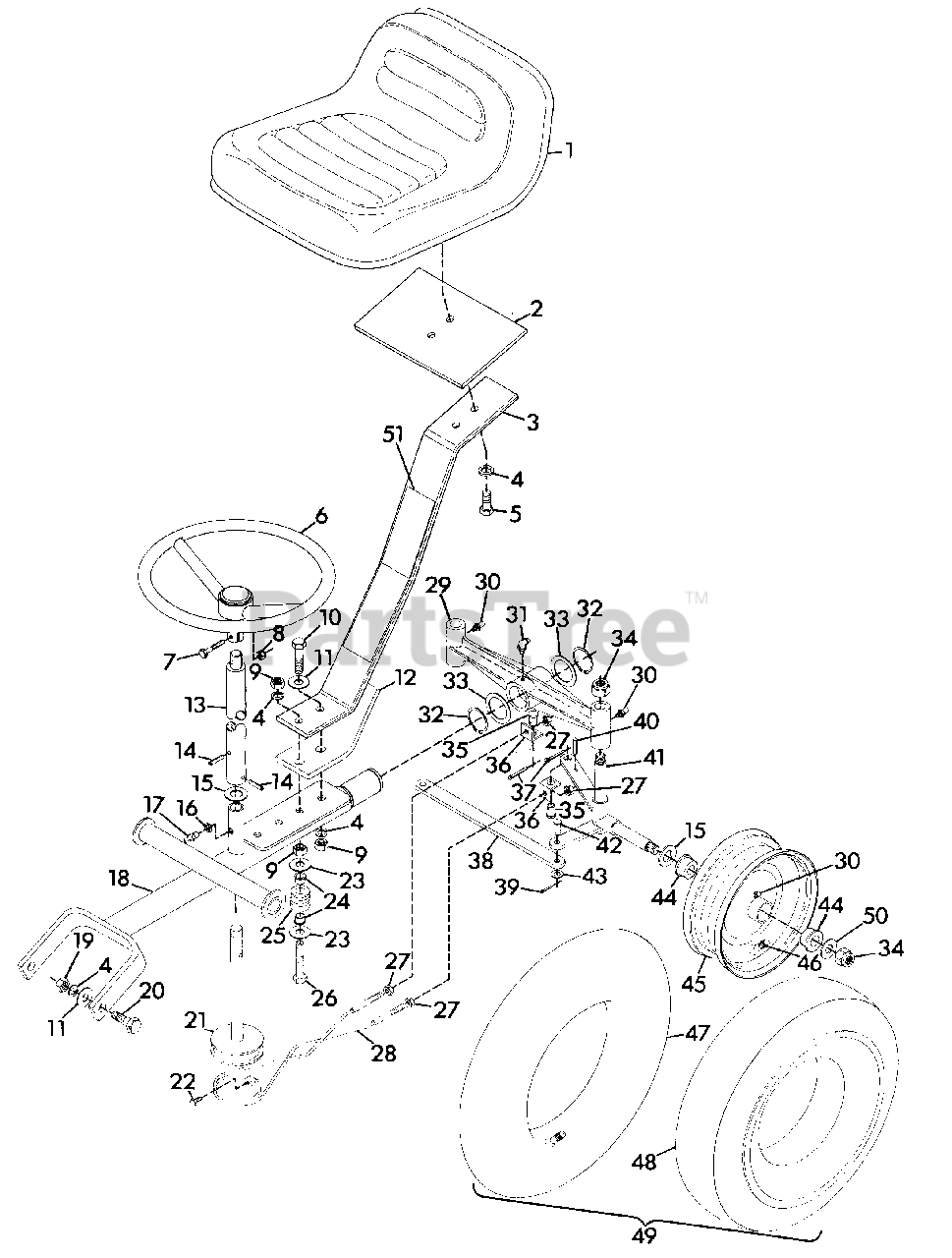

STEERING SULKY Parts Diagram

  • Title

1

Gravely 032362

SEAT, RIDER
(Superseded to 08569700)

$

$

Not available

2

Gravely 043285

PLATE
(Superseded to 08551200)

$

$

Not available

3

Gravely 043289

ASSEMBLY, SEAT SPRING AND DECAL
(Superseded to 08551400)

$

$

Not available

4

Gravely 120384

WASHER, LOCK 1/2-13 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

5

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

6

Gravely 019448

WHEEL, STEERING
(Superseded to 08510800)

$45.99

$

Usually ships in 4-12 days

0

7

Gravely 180125

BOLT, HEX 3/8-16X1.375
(Superseded to 05934900)

$

$

Not available

8

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 120238

NUT, JAM 1/2-13 HEX
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 180192

BOLT, HEX 1/2-13X3.50
(Superseded to 05901937)

$4.99

$

In Stock, only 2 left!

0

11

Gravely 120390

WASHER, FLAT .563X1.375X.109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

12

Gravely 017839

PLATE, REINFORCEMENT
(Superseded to 08505453)

$

$

Not available

13

Gravely 020430

COLUMN, STEERING
(Superseded to 08512400)

$

$

Not available

14

Gravely 453670

PIN, SPRING .25X1.125
(Superseded to 05808900)

$

$

Not available

15

Gravely 131017

WASHER, FLAT .812X1.496X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 120423

WASHER, LOCK 1/4 INTERNAL TOOTH
(Superseded to 06305200)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 014406

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

18

Gravely 010360

WELDMENT, CHASSIS SULKY
(Superseded to 21331200)

$

$

Not available

19

Gravely 120378

NUT, HEX 1/2-13
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 012887

BOLT, HITCH
(Superseded to 08594000)

$

$

Not available

21

Gravely 010361

REEL, ASSEMBLY
(Superseded to 08579900)

$

$

Not available

22

Gravely 181561

BOLT, HEX 1/4-28X.50
(Superseded to 05936600)

$

$

Not available

23

Gravely 417098

WASHER, FLAT .531X1.000X.063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 021504

BUSHING, CABLE GUIDE PULLEY
(Superseded to 05519600)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 012888

PULLEY, CABLE GUIDE
(Superseded to 08594100)

$39.99

$

Usually ships in 4-12 days

0

26

Gravely 014181

BOLT, 1/2-13X5.0
(Superseded to 05945200)

$

$

Not available

27

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

28

Gravely 010365

CABLE, STEERING
(Superseded to 06931700)

$68.99

$

Usually ships in 4-12 days

0

29

Gravely 012878

BAR, CROSS
(Superseded to 08593100)

$

$

Not available

30

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

31

Gravely 411032

FITTING, LUBE 90 DEGREE
(Superseded to 07012800)

$4.99

$

In Stock, Qty 5

0

32

Gravely 014085

RING, RETAINING
(Superseded to 05711500)

$

$

Not available

33

Gravely 013470

WASHER
(Superseded to 06426700)

$

$

Not available

34

Gravely 013412

NUT, LOCK 5/8-18 L.T.
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0

35

Gravely 012886

PIN, SWIVEL
(Superseded to 08593900)

$

$

Not available

36

Gravely 012885

BRACKET, SWIVEL
(Superseded to 08593800)

$

$

Not available

37

Gravely 120123

PIN, COTTER .125X1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 012883

BAR, TIE
(Superseded to 08593600)

$

$

Not available

39

Gravely 121222

PIN, COTTER .094X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

40

Gravely 273757

PIN, SPRING .25X1.875
(Superseded to 05800100)

$

$

Not available

41

Gravely 010362

WELDMENT, AXLE L.H.
(Superseded to 08580000)

$

$

Not available

41

Gravely 010363

WELDMENT, AXLE R.H.
(Superseded to 08580100)

$13.99

$

Usually ships in 4-12 days

0

42

Gravely 431780

PIN, CLEVIS .375X.750
(Superseded to 08573400)

$

$

Not available

43

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 012345

BUSHING, WHEEL
(Superseded to 21523400)

$21.99

$

Usually ships in 4-12 days

0

45

Gravely 010450

WHEEL, ASSEMBLY LESS TIRE/TUBE
(Superseded to 20042300)

$

$

Not available

46

Gravely 011191

ASSEMBLY, VALVE STEM
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

47

Gravely 013573

TUBE
(Superseded to 20124600)

$

$

Not available

48

Gravely 012356

TIRE
(Superseded to 20093800)

$

$

Not available

49

Gravely 010140

WHEEL, SULKY ASSEMBLY COMPLETE(INCLUDES ITEM NOS. 30,44,45,46,48)
(Superseded to 07132500)

Note: (INCLUDES ITEM NOS. 30,44,45,46,48)

$

$

Not available

50

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

51

Gravely 020933

DECAL, WARNING
(Superseded to 05200800)

$

$

Not available
