885008 - Gravely 32" Flail Mower for Professional 2-Wheel Tractor (SN: 000173 & Above) MOWER HOUSING Parts Diagram

32" Flail Mower for Professional 2-Wheel Tractor

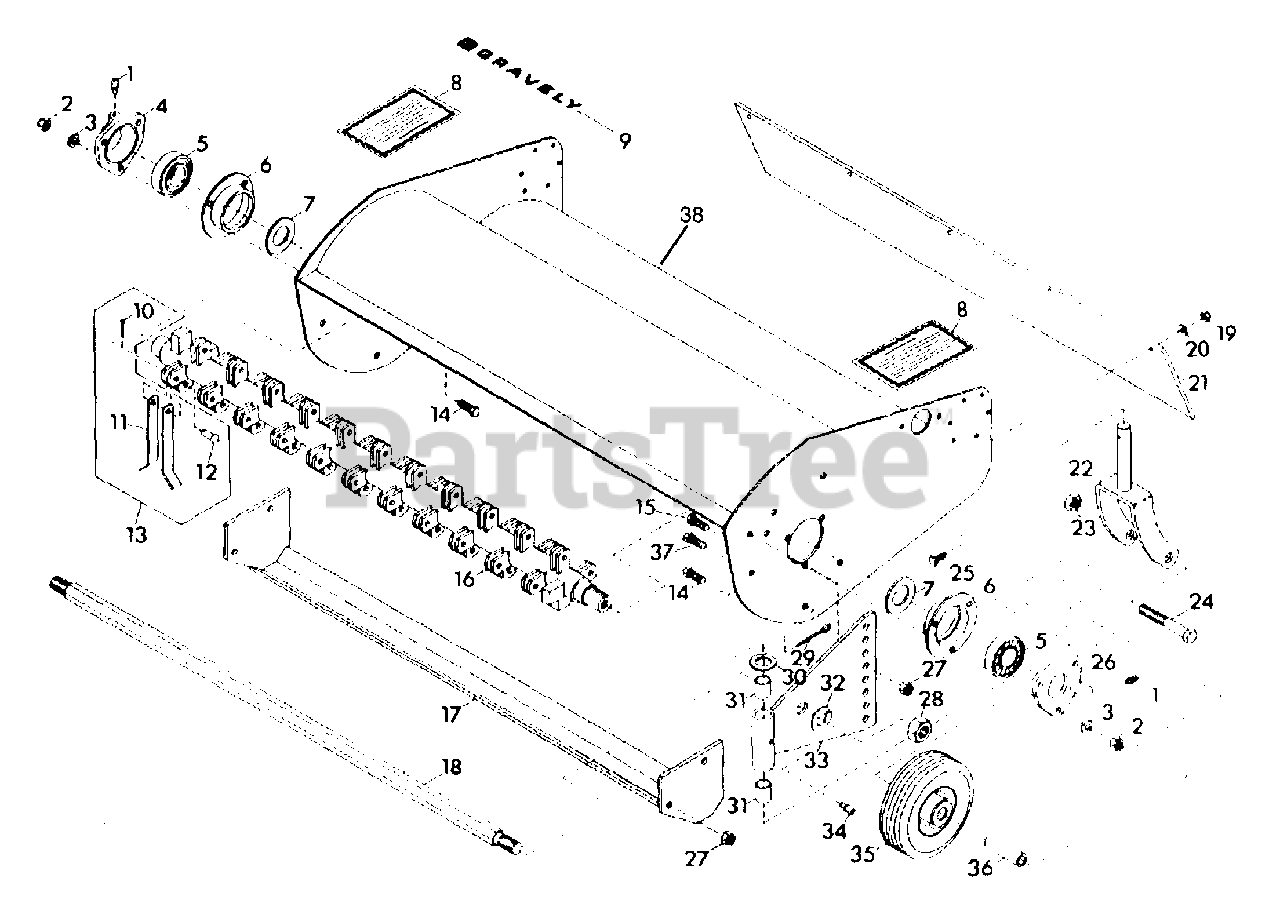

MOWER HOUSING Parts Diagram

  • Title

1

Gravely 012086

013, Lube
(Superseded to 20090900)

$

$

Not available

2

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 120382

Washer-Locking .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 012064

Cap, Bearing
(Superseded to 20090300)

$

$

Not available

5

Gravely 012063

Bearing, Cutter Shaft
(Superseded to 20090200)

$

$

Not available

6

Gravely 012062

Bearing, Cage
(Superseded to 20090100)

$

$

Not available

7

Gravely 012060

Washer, Bearing Shield
(Superseded to 20089900)

$

$

Not available

8

Gravely 018549

Decal, Danger
(Superseded to 05200100)

$

$

Not available

9

Gravely 024608

Decal, Gravely Logo
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0

10

Gravely 177923

Pin-Cotter .12 x .75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

11

Gravely 012066

Knife
(Superseded to 20090500)

$

$

Not available

12

Gravely 012067

Pin, Knife
(Superseded to 20090600)

$

$

Not available

13

Gravely 012091

Kit, Knife Replacement
(Superseded to 20091000)

$

$

Not available

13

Gravely 051271

Kit, Knife Heavy Duty
(Superseded to 20996800)

$

$

Not available

14

Gravely 181637

Bolt, Hex 3/8-24 x 1.00
(Superseded to 21059900)

$5.49

$

In Stock, only 1 left!

0

15

Gravely 180122

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 012059

Shaft, Cutter
(Superseded to 20089800)

$

$

Not available

17

Gravely 011959

Skid, Weldment
(Superseded to 08586800)

$45.99

$

Usually ships in 4-12 days

0

18

Gravely 020107

Rod
(Superseded to 08511800)

$25.99

$

Usually ships in 4-12 days

0

19

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

20

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 011977

Shield, Rear Deflector
(Superseded to 08587500)

$

$

Not available

22

Gravely 011385

Weldment, Caster Fork
(Superseded to 08585053)

$120.99

$

In Stock, only 2 left!

0

23

Gravely 120238

Nut-Jam .50-13 Grade 2
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 180193

Bolt-Hex .50-13 x 3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 012065

Retainer, Grease
(Superseded to 20090400)

$

$

Not available

27

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 414075

Nut-Locking-Center .625-11 Grade 2
(Superseded to 06535300)

$2.99

$

Usually ships in 4-12 days

0

29

Gravely 137204

Pin-Cotter .125 x 1.50
(Superseded to 06714300)

$1.99

$

Usually ships in 4-12 days

0

30

Gravely 131017

Washer-Flat .812 x 1.469 x .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 011375

Bearing-.752 x .877 x .75
(Superseded to 05518500)

$7.49

$

Usually ships in 4-12 days

0

32

Gravely 121574

Washer-Lock .625
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 019173

Weldment & Bushing Assembly
(Superseded to 08506900)

$

$

Not available

34

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

35

Gravely 011386

Wheel-Caster 6 x 2.00
(Superseded to 07132800)

$79.99

$

Usually ships in 4-12 days

0

36

Gravely 011387

Bushing, Sleeve .516 x .745 x 2.59
(Superseded to 08585100)

$23.99

$

Usually ships in 4-12 days

0

37

Gravely 05913300

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 021310

Housing, Flail Mower
(Superseded to 08514953)

$

$

Not available
