885008 - Gravely 32" Flail Mower for Professional 2-Wheel Tractor (SN: 000173 & Above) MOWER DRIVE Parts Diagram

32" Flail Mower for Professional 2-Wheel Tractor

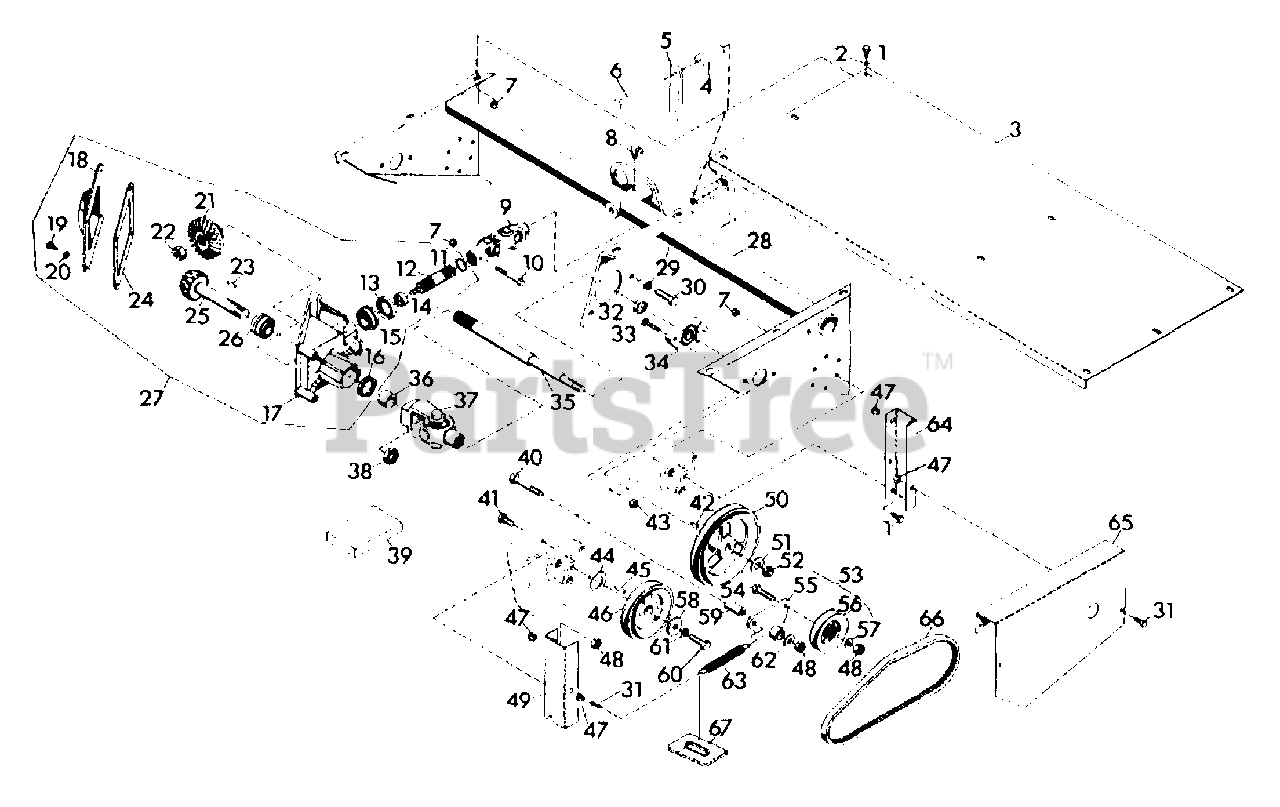

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 020110

Shield
(Superseded to 08512000)

$

$

Not available

4

Gravely 035054

Bushing Sleeve .501 x 1.00 x 2.30
(Superseded to 08538800)

$37.99

$

Usually ships in 4-12 days

0

5

Gravely 035053

Strap, Locking
(Superseded to 08538200)

$62.99

$

In Stock, only 2 left!

0

6

Gravely 05922700

Bolt-Hex .50-13 x 4.50 Grade 5
(Superseded to 05901932)

$5.99

$

In Stock, only 1 left!

0

7

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 411032

Fitting, Lube 90 Degree
(Superseded to 07012800)

$4.99

$

In Stock, Qty 5

0

9

Gravely 011967

Assembly, Double Joint
(Superseded to 08587200)

$517.99

$

Usually ships in 4-12 days

0

10

Gravely 180044

Bolt-Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 014642

Ring-Retaining 1.106 x .95
(Superseded to 05711600)

$9.49

$

Usually ships in 4-12 days

0

12

Gravely 020016

Shaft, Drive
(Superseded to 08511300)

$

$

Not available

13

Gravely 014646

Seal 1.250 x 1.983 x .250
(Superseded to 05613700)

$14.99

$

In Stock, only 2 left!

0

14

Gravely 014641

Bushing, Flange 1.00 x 1.25 x 1.25
(Superseded to 08700500)

$23.99

$

Usually ships in 4-12 days

0

15

Gravely 014640

Bearing,-Assembly 1.000 x 1.980 x 1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

16

Gravely 014645

Seal 1.250 x 1.691 x .310
(Superseded to 05613600)

$15.99

$

In Stock, only 4 left!

0

17

Gravely 014636

Casting, Gear Box
(Superseded to 08700400)

$298.99

$

Usually ships in 4-12 days

0

18

Gravely 010982

Cover, Gear Housing
(Superseded to 08860500)

$43.99

$

Usually ships in 4-12 days

0

19

Gravely 180016

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 120380

Washer-Lock .250
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 019607

Gear, Bevel
(Superseded to 08790300)

$240.99

$

Usually ships in 4-12 days

0

22

Gravely 456007

Nut-Locking-Nylon .75-10 Grade 2
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

23

Gravely 431787

Key Woodruff .19 x .63
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

24

Gravely 011231

Gasket, Gear Housing
(Superseded to 08570100)

$5.99

$

In Stock, only 1 left!

0

25

Gravely 019608

Shaft, Gear Pinion
(Superseded to 08790400)

$

$

Not available

26

Gravely 014644

Bearing
(Superseded to 05419400)

$105.99

$

Usually ships in 4-12 days

0

27

Gravely 014635

Assembly, Drive
(Superseded to 08570400)

$

$

Not available

28

Gravely 044889

Weldment, Support
(Superseded to 08558800)

$

$

Not available

29

Gravely 120384

Washer-Lock .50
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

30

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

31

Gravely 167260

Screw-Tapping .250-20 x .625
(Superseded to 07410400)

$2.49

$

In Stock, Qty 13

0

32

Gravely 034666

Bearing-Flange-Locking-Collar .75 x 1.85
(Superseded to 05424500)

$

$

Not available

33

Gravely 126363

Bolt-Round Head Square Neck .31-18 x 1.12
(Superseded to 06200407)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 012409

Bearing-Flange 2-Hole x .75
(Superseded to 05428600)

$75.99

$

In Stock, only 1 left!

0

35

Gravely 020108

Shaft
(Superseded to 08511900)

$

$

Not available

36

Gravely 020542

Bushing, Sleeve .753 x 1.25 x 1.25
(Superseded to 08512900)

$

$

Not available

37

Gravely 020105

Joint, Universal
(Superseded to 08511600)

$

$

Not available

38

Gravely 020106

Nut-Locking-Nylon .75-10
(Superseded to 06537900)

$15.99

$

Usually ships in 4-12 days

0

39

Gravely 012134

Kit, Repair U-Joint
(Superseded to 03155800)

$

$

Not available

39

Gravely 024560

Kit, Repair U-Joint
(Superseded to 03155800)

$

$

Not available

40

Gravely 180134

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

41

Gravely 180120

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 124549

Key-Woodruff .19 x .75
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 120376

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

44

Gravely 020798

Spacer, Pulley
(Superseded to 20307400)

$

$

Not available

45

Gravely 009213

Key-Square .248 x 1.0 x .248
(Superseded to 00966045)

$2.99

$

In Stock, only 2 left!

0

46

Gravely 011962

Pulley-V 1.002 x 5.25
(Superseded to 07319900)

$95.99

$

Usually ships in 4-12 days

0

47

Gravely 011777

Grommet, Plastic
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

48

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

49

Gravely 012076

Channel, Front
(Superseded to 08588100)

$

$

Not available

50

Gravely 012074

Sheave 7.25 x .656
(Superseded to 07320100)

$

$

Not available

51

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

52

Gravely 013412

Nut-Lock .625-18
(Superseded to 06530300)

$3.99

$

In Stock, only 3 left!

0

53

Gravely 011964

Idler, Assembly
(Superseded to 08587100)

$

$

Not available

54

Gravely 180127

Bolt-Hex .38-16 x 1.625
(Superseded to 05935000)

$3.99

$

Usually ships in 4-12 days

0

55

Gravely 012068

Weldment, Arm Idler Pivot
(Superseded to 08587800)

$

$

Not available

56

Gravely 012070

Idler-Flat 3.437 x .376
(Superseded to 07320000)

$

$

Not available

57

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

58

Gravely 012106

Washer, Retaining
(Superseded to 20091100)

$

$

Not available

59

Gravely 012071

Bushing, Sleeve .406 x .750 x 1.70
(Superseded to 08588000)

$

$

Not available

60

Gravely 181639

Bolt-Hex .38-24 x 1.25 Grade 5
(Superseded to 05960700)

$2.99

$

Usually ships in 4-12 days

0

61

Gravely 120382

Washer-Locking-External .313 x .025
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

62

Gravely 120388

Washer-Flat-Steel .438 x 1.000 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

63

Gravely 011263

Spring-Tension .095 x .500 x 5.5
(Superseded to 08353300)

$14.99

$

Usually ships in 4-12 days

0

64

Gravely 011974

Channel, Rear
(Superseded to 08587300)

$

$

Not available

65

Gravely 011976

Cover, Belt
(Superseded to 08587400)

$

$

Not available

66

Gravely 012077

V-Belt 4L-Section 40.9 x .672
(Superseded to 07224400)

$

$

Not available

67

Gravely 08566100

Spring Terminal

$

$

Not available
