885007 - Gravely 50" Deck for 2-Wheel Tractor (SN: 000340 & Above) MOWER DECK Parts Diagram

50" Deck for 2-Wheel Tractor

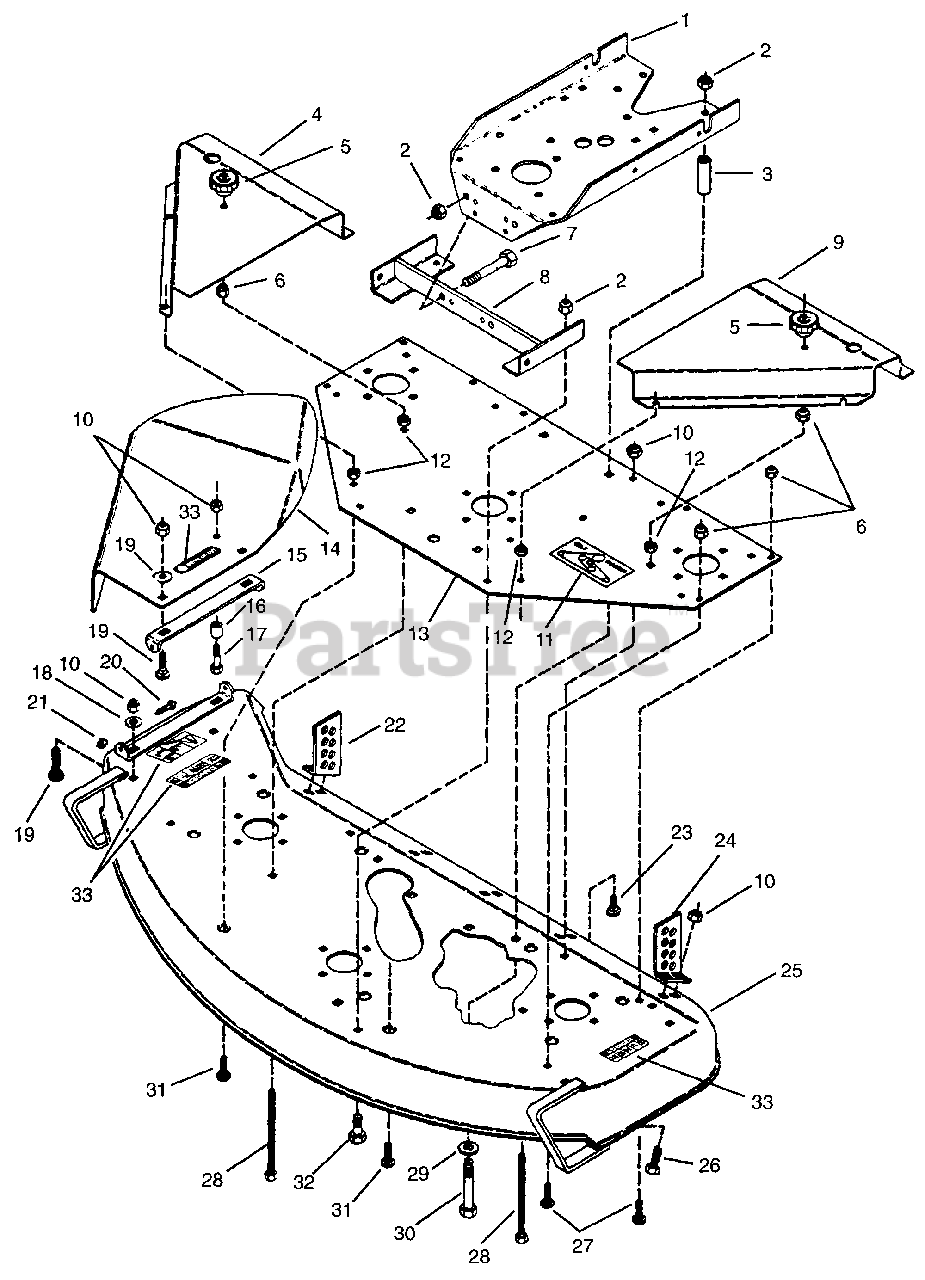

MOWER DECK Parts Diagram

  • Title

1

Gravely 045632

Support, Gear Housing
(Superseded to 08561300)

$203.99

$

Usually ships in 4-12 days

0

2

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 019348

Spacer .510 x .840 x 2.437
(Superseded to 08510400)

$33.99

$

Usually ships in 4-12 days

0

4

Gravely 040196

Cover, Pulley Right Hand
(Superseded to 08933500)

$

$

Not available

5

Gravely 041674

Knob
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 180176

Bolt-Hex .50-13 x 1.375
(Superseded to 05935800)

$

$

Not available

8

Gravely 035001

Bracket, Height Adjustment
(Superseded to 08912500)

$

$

Not available

9

Gravely 040195

Cover, Pulley Left Hand
(Superseded to 08933400)

$

$

Not available

10

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

11

Gravely 011715

Decal, Belt Installation
(Superseded to 05216600)

$22.99

$

Usually ships in 4-12 days

0

12

Gravely 124824

Nut-Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 040201

Plate, Support
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

14

Gravely 038675

Shield, Safety External 50" Mower

$

$

Not available

15

Gravely 045641

Bracket, Chute
(Superseded to 08827653)

$

$

Not available

16

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

17

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

18

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

20

Gravely 180021

Bolt-Hex .25-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

21

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

22

Gravely 037809

Plate, Rear Adjustment
(Superseded to 08925500)

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 126227

Bolt-Round Head Square Neck .375-16 x .75 Grade 1
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

24

Gravely 037810

Plate, Rear Adjustment
(Superseded to 08925600)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 045754

Weldment, 50" Mower Deck
(Superseded to 58502600)

$517.99

$

Usually ships in 4-12 days

0

26

Gravely 180124

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 126216

Bolt-Round Head Square Neck .31-18 x .75 Grade 5

$

$

Not available

28

Gravely 040193

Bolt-Round Head Square Neck .31-18 x 3.5
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 180193

Bolt-Hex .50-13 x 3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 126358

Bolt-Round Head Square Neck .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 180175

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

33

Gravely 07731800

Mower Deck Decal
(Superseded to 53610000)

$66.99

$

In Stock, only 1 left!

0
