885006 - Gravely 50" Deck for 2-Wheel Tractor (SN: 010000 & Above) 50" Mower Deck Assembly Parts Diagram

50" Deck for 2-Wheel Tractor

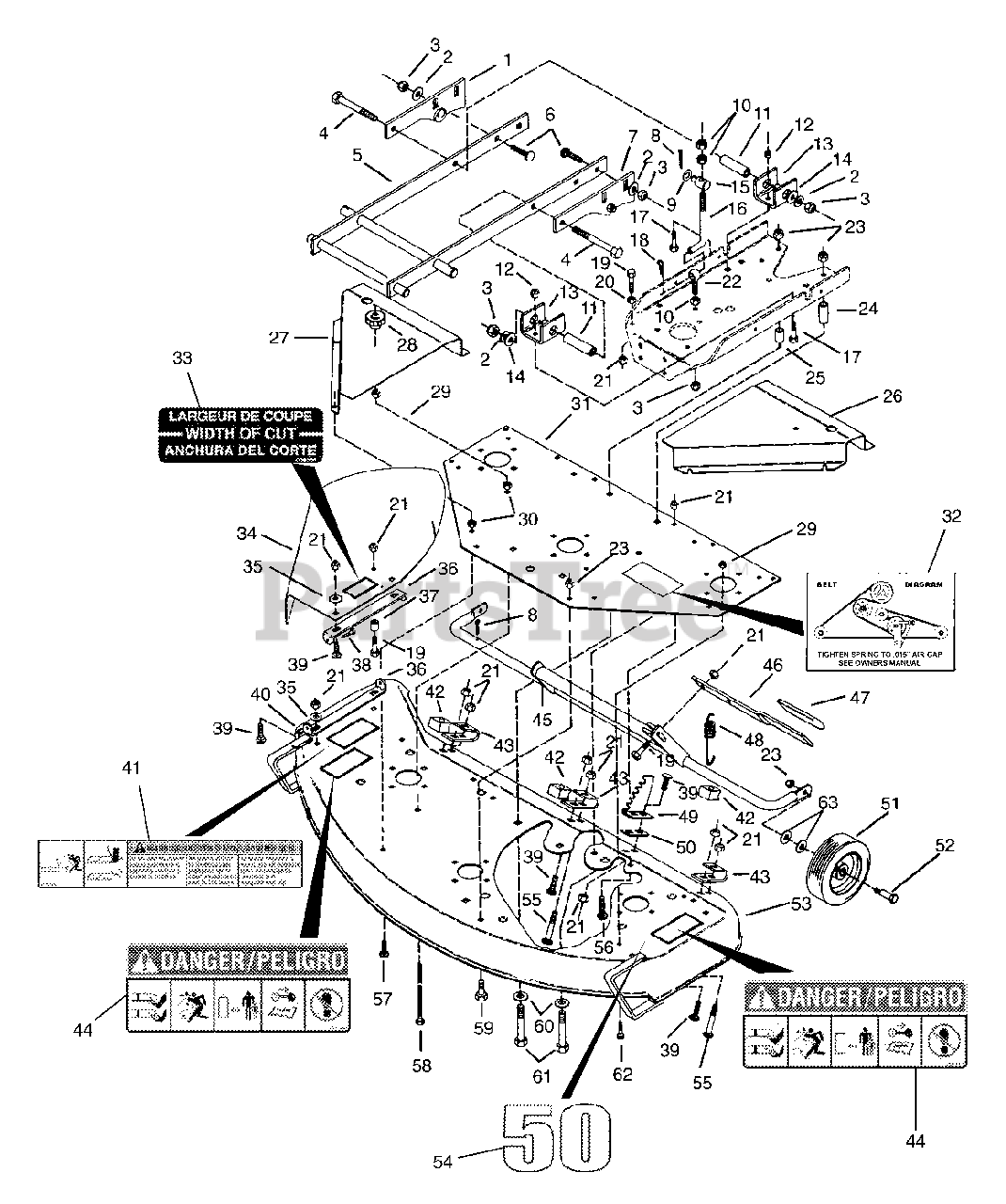

50" Mower Deck Assembly Parts Diagram

  • Title

1

Gravely 038986

Weldment, Deck Leveling Right Hand
(Superseded to 08540800)

$139.99

$

Usually ships in 4-12 days

0

2

Gravely 415543

Washer-Flat-Steel .531 x 1.25 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

3

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

4

Gravely 05960000

Bolt-Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

5

Gravely 038992

Weldment, Pivot Arm
(Superseded to 08541200)

$375.99

$

Usually ships in 4-12 days

0

6

Gravely 06224700

Bolt-Round Head Square Neck .50-13 x 1.25 Grade 5
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 038988

Weldment, Deck Leveling Left Hand
(Superseded to 08541000)

$

$

Not available

8

Gravely 06712600

Pin-Cotter .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 417098

Washer-Flat-Steel .531 x 1.000 x .063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06529300

Nut-Jam .50-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 022414

Spacer .510 x .750 x 2.02 Steel
(Superseded to 08522700)

$21.99

$

Usually ships in 4-12 days

0

12

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 022415

Support, Mower Pivot
(Superseded to 08522800)

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 423315

Washer-Flat-Steel .813 x 1.370 x .100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 040625

Pivot, Mower Lift
(Superseded to 08811600)

$45.99

$

In Stock, only 3 left!

0

16

Gravely 019201

Rod, Lift
(Superseded to 08599900)

$67.99

$

Usually ships in 4-12 days

0

17

Gravely 05947800

Bolt-Hex .31-18X.875 Grade 5
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 015691

Pin-Cotter .12 x 2.0
(Superseded to 06714900)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

20

Gravely 124829

Nut-Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 019350

Bolt, Eye
(Superseded to 07015300)

$32.99

$

In Stock, only 1 left!

0

23

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

24

Gravely 019348

Spacer .510 x .840 x 2.437 Steel
(Superseded to 08510400)

$33.99

$

Usually ships in 4-12 days

0

25

Gravely 042988

Rod, PTO Control
(Superseded to 08820400)

$

$

Not available

26

Gravely 040195

Cover, Pulley Left Hand
(Superseded to 08933400)

$

$

Not available

27

Gravely 040196

Cover, Pulley Right Hand
(Superseded to 08933500)

$

$

Not available

28

Gravely 041674

Knob
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

29

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06536100

Nut-Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 052760

Plate,Support 50
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

32

Gravely 011715

Decal, Belt Installation
(Superseded to 05216600)

$22.99

$

Usually ships in 4-12 days

0

33

Gravely 039758

Width of Cut Decal
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

34

Gravely 038675

Shield, Safety External Weldment 50" Mower

$

$

Not available

35

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 08827653

Bracket, Chute

$

$

Not available

37

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

38

Gravely 180021

Bolt-Hex .25-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

39

Gravely 06212000

Bolt-Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

41

Gravely 07742300

Decal, Mower Pan Danger

$11.99

$

Usually ships in 4-12 days

0

42

Gravely 011260

Stop, Nylon
(Superseded to 07519500)

$10.99

$

In Stock, only 2 left!

0

43

Gravely 011264

Bracket, Axle Support
(Superseded to 03349000)

$16.99

$

Usually ships in 4-12 days

0

44

Gravely 07731400

Decal, Warning

$21.99

$

In Stock, only 2 left!

0

45

Gravely 045711

Weldment, Axle Pivot
(Superseded to 08561600)

$

$

Not available

46

Gravely 038990

Lever, Height of Cut
(Superseded to 03499300)

$

$

Not available

47

Gravely 034067

Grip, Handle
(Superseded to 07523000)

$5.99

$

Usually ships in 4-12 days

0

48

Gravely 021471

Spring-Tension .095 x .85 x 4.38
(Superseded to 08329500)

$14.99

$

In Stock, only 2 left!

0

49

Gravely 011265

Bracket, Height Adjustment
(Superseded to 08598000)

$41.99

$

In Stock, only 1 left!

0

50

Gravely 021462

Shim, Mower Height Adjuster Bracket
(Superseded to 08517400)

$

$

Not available

51

Gravely 034426

Tire/Wheel Assembly 6 x 2
(Superseded to 07128800)

$102.99

$

In Stock, only 2 left!

0

52

Gravely 038985

Bolt, Eccentric
(Superseded to 03499200)

$

$

Not available

53

Gravely 046209

Weldment, 50" Mower Deck
(Superseded to 58502500)

$517.99

$

Usually ships in 4-12 days

0

54

Gravely 05231900

Decal, 50

$

$

Not available

55

Gravely 06224300

Bolt-Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0

56

Gravely 06224600

Bolt-Round Head Square Neck .50-13 x 1.00 Grade 5
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

57

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

58

Gravely 06221300

Bolt-Round Head Square Neck .31-18 x 3.50 Grade 5
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

59

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

60

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

61

Gravely 05960100

Bolt-Hex .50-13 x 3.75 Grade 5
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

62

Gravely 06204100

Bolt-Round Head Square Neck .31-18 x .75
(Superseded to 06220800)

$2.49

$

In Stock, Qty 20+

0

63

Gravely 06436400

Washer-Flat-Steel .511 x 1 .441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0
