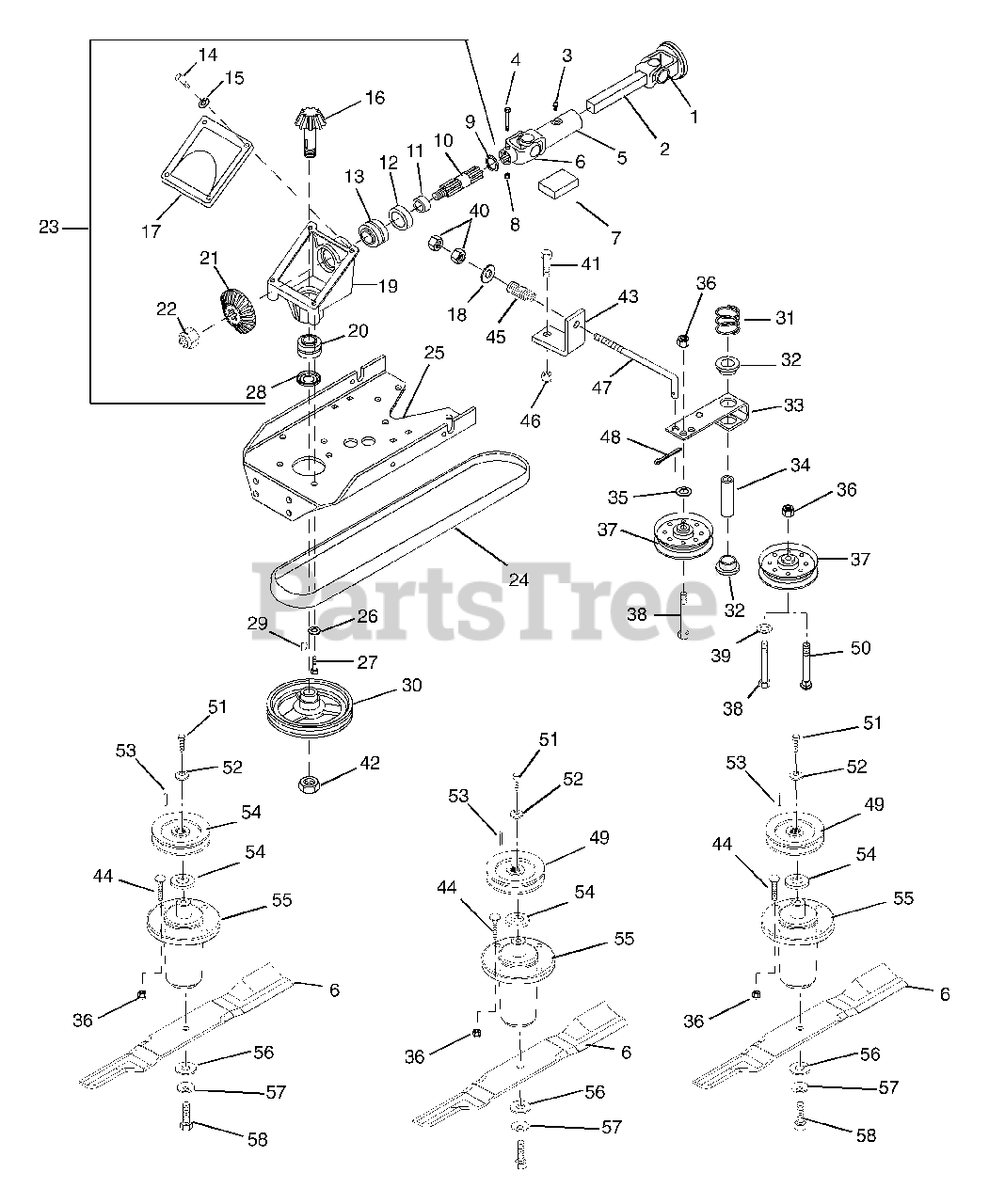

885006 - Gravely 50" Deck for 2-Wheel Tractor (SN: 010000 & Above) 40" & 50" Mower Drive Parts Diagram

50" Deck for 2-Wheel Tractor

40" & 50" Mower Drive Parts Diagram

  • Title

1

Gravely 045954

Q. D. Yoke
(Superseded to 20823200)

$258.99

$

Usually ships in 4-12 days

0

2

Gravely 08713900

Shaft,Propelled Square Bar

$646.99

$

Usually ships in 4-12 days

0

3

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

4

Gravely 05967100

Bolt-Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 013518

Joint-U Female End
(Superseded to 08700200)

$

$

Not available

6

Gravely 08899300

Mower Blade Tungsten Carbide
(Superseded to 08861600)

$23.99

$

In Stock, Qty 20+

0

6

Gravely 08899800

Mower Blade Tungsten Carbide
(Superseded to 03498400)

$19.99

$

In Stock, Qty 20+

0

7

Gravely 012134

Kit-Repair U-Joint
(Superseded to 03155800)

$

$

Not available

8

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 014642

Ring-Retaining 1.106 x .95
(Superseded to 05711600)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 031412

Shaft
(Superseded to 08729500)

$234.99

$

Usually ships in 4-12 days

0

11

Gravely 014641

Bushing Flange 1.00 x 1.25 x 1.25
(Superseded to 08700500)

$23.99

$

Usually ships in 4-12 days

0

12

Gravely 014646

Seal 1.250 x 1.983 x .250
(Superseded to 05613700)

$14.99

$

In Stock, only 2 left!

0

13

Gravely 014640

Bearing-Assembly 1.000 x 1.980 x 1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

14

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 051326

Shaft-Pinion Gear
(Superseded to 08790400)

$

$

Not available

17

Gravely 010982

Cover-Gear Housing
(Superseded to 08860500)

$43.99

$

Usually ships in 4-12 days

0

18

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 014636

Casting-Gear Box
(Superseded to 08700400)

$298.99

$

Usually ships in 4-12 days

0

20

Gravely 014644

Bearing-Assembly .75 x 1.781 x 1.499
(Superseded to 05419400)

$105.99

$

Usually ships in 4-12 days

0

21

Gravely 051325

Gear-Bevel
(Superseded to 08790300)

$240.99

$

Usually ships in 4-12 days

0

22

Gravely 06540800

Nut-Locking-Nylon .75-10

$5.99

$

In Stock, Qty 6

0

23

Gravely 08570300

Assembly-Gearbox

$1066.99

$

Usually ships in 4-12 days

0

24

Gravely 07226700

V-Belt, Centermount

Note: (Model 005)

$67.99

$

In Stock, Qty 12

0

24

Gravely 07226600

V-Belt, Centermount
(Superseded to 07219600)

Note: (Model 006)

$80.99

$

In Stock, only 3 left!

0

25

Gravely 045632

Support-Gear Housing
(Superseded to 08561300)

$203.99

$

Usually ships in 4-12 days

0

26

Gravely 06307300

Washer-Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 17

0

27

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

28

Gravely 014645

Seal 1.250 x 1.691 x .310
(Superseded to 05613600)

$15.99

$

In Stock, only 4 left!

0

29

Gravely 431787

Key-Woodruff .19 x .63
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

30

Gravely 045649

Sheave,Drive
(Superseded to 08770000)

$140.99

$

Usually ships in 4-12 days

0

31

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

32

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

33

Gravely 034120

Arm-Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

34

Gravely 034119

Spacer .560 x .750 x 2.437 Steel
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

35

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

36

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

37

Gravely 021060

Pulley-Idler 4.50 x .380
(Superseded to 07314800)

$39.99

$

In Stock, Qty 5

0

38

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

Note: (Model 005)

$2.99

$

In Stock, only 1 left!

0

38

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

Note: (Model 006)

$2.99

$

In Stock, only 1 left!

0

39

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

Note: (Model 005)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

41

Gravely 05962000

Bolt-Hex .50-13 x 1.50
(Superseded to 05901631)

Note: (Model 006)

$3.99

$

In Stock, only 1 left!

0

41

Gravely 180176

Bolt-Hex .50-13 x 1.375
(Superseded to 05935800)

Note: (Model 005)

$

$

Not available

42

Gravely 06537700

Nut-Hex-Jam .75-10

$2.49

$

In Stock, only 2 left!

0

43

Gravely 034431

Support-Spring
(Superseded to 08537000)

$22.99

$

Usually ships in 4-12 days

0

44

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

45

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

46

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 5

0

47

Gravely 021111

Rod, Idler 50 In. Mower
(Superseded to 08598300)

Note: (Model 006)

$42.99

$

Usually ships in 4-12 days

0

47

Gravely 021112

Rod, Idler 40 In. Mower
(Superseded to 03351200)

Note: (Model 005)

$

$

Not available

48

Gravely 121224

Pin-Cotter .09 x 1.00

$0.99

$

Usually ships in 4-12 days

0

49

Gravely 04906100

Sheave, Spindle

Note: (Model 005)

$113.99

$

Usually ships in 4-12 days

0

49

Gravely 04903900

Sheave, Spindle
(Superseded to 07333467)

Note: (Model 006)

$67.99

$

In Stock, only 1 left!

0

50

Gravely 06223800

Bolt-Round Head Square Neck .38-16X1.75 Grade 5
(Superseded to 06200417)

Note: (Model 006)

$3.99

$

In Stock, only 2 left!

0

51

Gravely 05974500

Bolt-Hex .38-16 x 1.00 Grade 8 with Epoxy Patch
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

52

Gravely 00597000

Washer, Cupped, Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

53

Gravely 06602200

Key-Square .25X1.00X.25 SAE 860 OR SAE 1035

$3.99

$

In Stock, only 2 left!

0

54

Gravely 09238200

Slinger, Dust

$17.99

$

In Stock, only 4 left!

0

55

Gravely 58803600

Maintenance Free Spindle Assembly

$262.99

$

In Stock, only 1 left!

0

56

Gravely 06435200

Washer, Flat .64 x 1.81 x .25
(Superseded to 06400829)

$3.99

$

In Stock, only 4 left!

0

57

Gravely 06445700

Washer-Bellville .63 x 1.63 x .14

$4.99

$

In Stock, Qty 20+

0

58

Gravely 07053400

Bolt, Blade

$46.99

$

In Stock, Qty 7

0

Gravely 036799

Spring
(Superseded to 08738900)

Note: NS

$9.49

$

In Stock, only 1 left!

0

Gravely 036800

Collar
(Superseded to 08739000)

Note: NS

$25.99

$

Usually ships in 4-12 days

0

Gravely 036801

Ring Snap
(Superseded to 08739100)

Note: NS

$14.99

$

Usually ships in 4-12 days

0

Gravely 145643

Ball, .375 Guard 2000
(Superseded to 05429800)

Note: NS

$3.49

$

Usually ships in 4-12 days

0
