885005 - Gravely 40" Deck for 2-Wheel Tractor (SN: 000101 - 000366) MOWER DECK ASSEMBLY 40" Parts Diagram

40" Deck for 2-Wheel Tractor

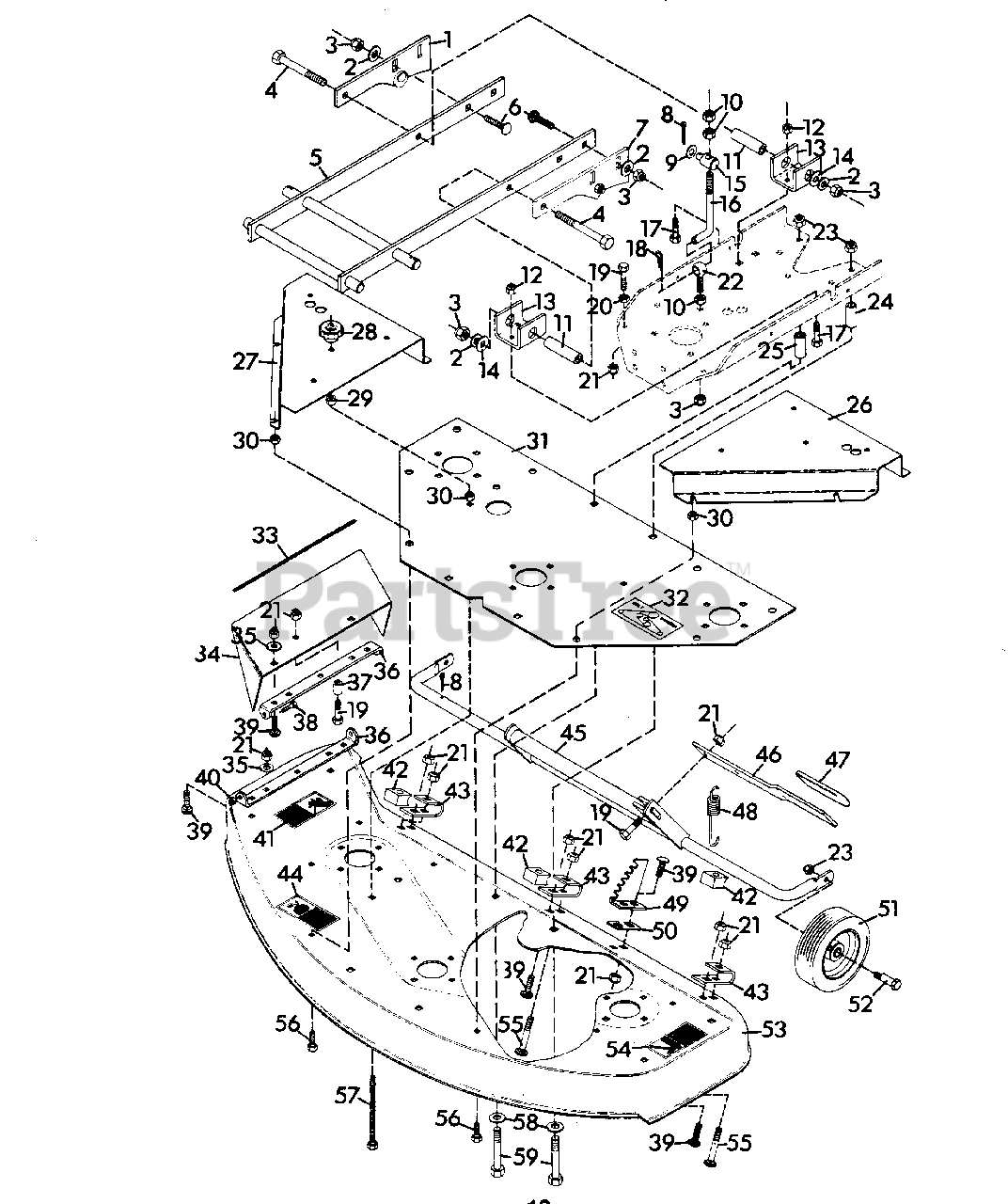

MOWER DECK ASSEMBLY 40" Parts Diagram

  • Title

1

Gravely 038986

Weldment, Deck Leveling R.H.
(Superseded to 08540800)

$139.99

$

Usually ships in 4-12 days

0

2

Gravely 415543

Washer, Flat .531x1.250x.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

3

Gravely 414074

Nut, Lock 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

4

Gravely 180191

Bolt, Hex 1/2-13x3.25
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 038992

Weldment, Pivot Arm
(Superseded to 08541200)

$375.99

$

Usually ships in 4-12 days

0

6

Gravely 126485

Bolt, Carriage 1/2-13x1.25
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 038988

Weldment, Deck Leveling L.H.
(Superseded to 08541000)

$

$

Not available

8

Gravely 120123

Pin, Cotter .125x1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 417098

Washer, Flat .531x1.000x.063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 120238

Nut, Jam 1/2-13 Hex
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 022414

Bushing, Pivot .510x.750x2.020
(Superseded to 08522700)

$21.99

$

Usually ships in 4-12 days

0

12

Gravely 413447

Nut, Lock 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 022415

Support, Mower Pivot
(Superseded to 08522800)

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 423315

Washer, Flat .813x1.37x.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 040625

Pivot, Mower Lift
(Superseded to 08811600)

$45.99

$

In Stock, only 3 left!

0

16

Gravely 019201

Rod, Lift
(Superseded to 08599900)

$67.99

$

Usually ships in 4-12 days

0

17

Gravely 180078

Bolt, Hex 5/16-18x.875
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 015691

Pin, Cotter Hair
(Superseded to 06714900)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 180126

Bolt, Hex 3/8-16x1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

20

Gravely 124829

Nut, Jam 3/8-16 Hex
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

22

Gravely 019350

Bolt, Eye
(Superseded to 07015300)

$32.99

$

In Stock, only 1 left!

0

23

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

24

Gravely 019348

Spacer, .510x.840x2.43
(Superseded to 08510400)

$33.99

$

Usually ships in 4-12 days

0

25

Gravely 034119

Spacer
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

26

Gravely 040533

Cover, Pulley L.H.
(Superseded to 08542300)

$51.99

$

Usually ships in 4-12 days

0

27

Gravely 040532

Cover, Pulley R.H.
(Superseded to 08542200)

$71.99

$

Usually ships in 4-12 days

0

28

Gravely 041674

Knob
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

29

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 124824

Nut, Jam 5/16-18 Hex
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 040531

Plate, Support
(Superseded to 08542100)

$175.99

$

Usually ships in 4-12 days

0

32

Gravely 011715

Decal, Belt Installation
(Superseded to 05216600)

$22.99

$

Usually ships in 4-12 days

0

33

Gravely 038769

Stripe
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

34

Gravely 038697

Chute, 40" Flip-Up
(Superseded to 03499000)

$

$

Not available

35

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 045664

Bracket, Chute 40" Mower
(Superseded to 03499500)

$29.99

$

Usually ships in 4-12 days

0

37

Gravely 038696

Stop, Chute
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

38

Gravely 180021

Bolt, Hex 1/4-20x.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

39

Gravely 120915

Bolt, 3/8-16x1 Rd Hd Sq Nk

$

$

Not available

40

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

41

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

42

Gravely 011260

Stop, Nylon
(Superseded to 07519500)

$10.99

$

In Stock, only 2 left!

0

43

Gravely 011264

Bracket, Axle Support
(Superseded to 03349000)

$16.99

$

Usually ships in 4-12 days

0

44

Gravely 033928

Decal, Warning Eye
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

45

Gravely 046053

Weldment, Axle Pivot
(Superseded to 08541300)

$

$

Not available

46

Gravely 038990

Lever, Height of Cut
(Superseded to 03499300)

$

$

Not available

47

Gravely 034067

Grip, Handle
(Superseded to 07523000)

$5.99

$

Usually ships in 4-12 days

0

48

Gravely 021471

Spring, 40 and 50 Inch Mower
(Superseded to 08329500)

$14.99

$

In Stock, only 2 left!

0

49

Gravely 011265

Bracket, Height Adjust
(Superseded to 08598000)

$41.99

$

In Stock, only 1 left!

0

50

Gravely 021462

Shim, Mower Ht. Adj. Bkt.
(Superseded to 08517400)

$

$

Not available

51

Gravely 034426

Wheel, Gauge
(Superseded to 07128800)

$102.99

$

In Stock, only 2 left!

0

52

Gravely 038985

Bolt, Eccentric
(Superseded to 03499200)

$

$

Not available

53

Gravely 045805

Weldment, 40" Deck
(Superseded to 58502400)

$517.99

$

Usually ships in 4-12 days

0

54

Gravely 033927

Decal, Danger Foot
(Superseded to 05350100)

$

$

Not available

55

Gravely 126419

Bolt, 3/8-16x2 Rd Hd Sq Nk
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0

56

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

57

Gravely 040193

Bolt, Hex 5/16-18x3.50
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

58

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

59

Gravely 180193

Bolt, Hex 1/2-13x3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

Gravely 014666

Baffle
(Superseded to 21099000)

$

$

Not available
