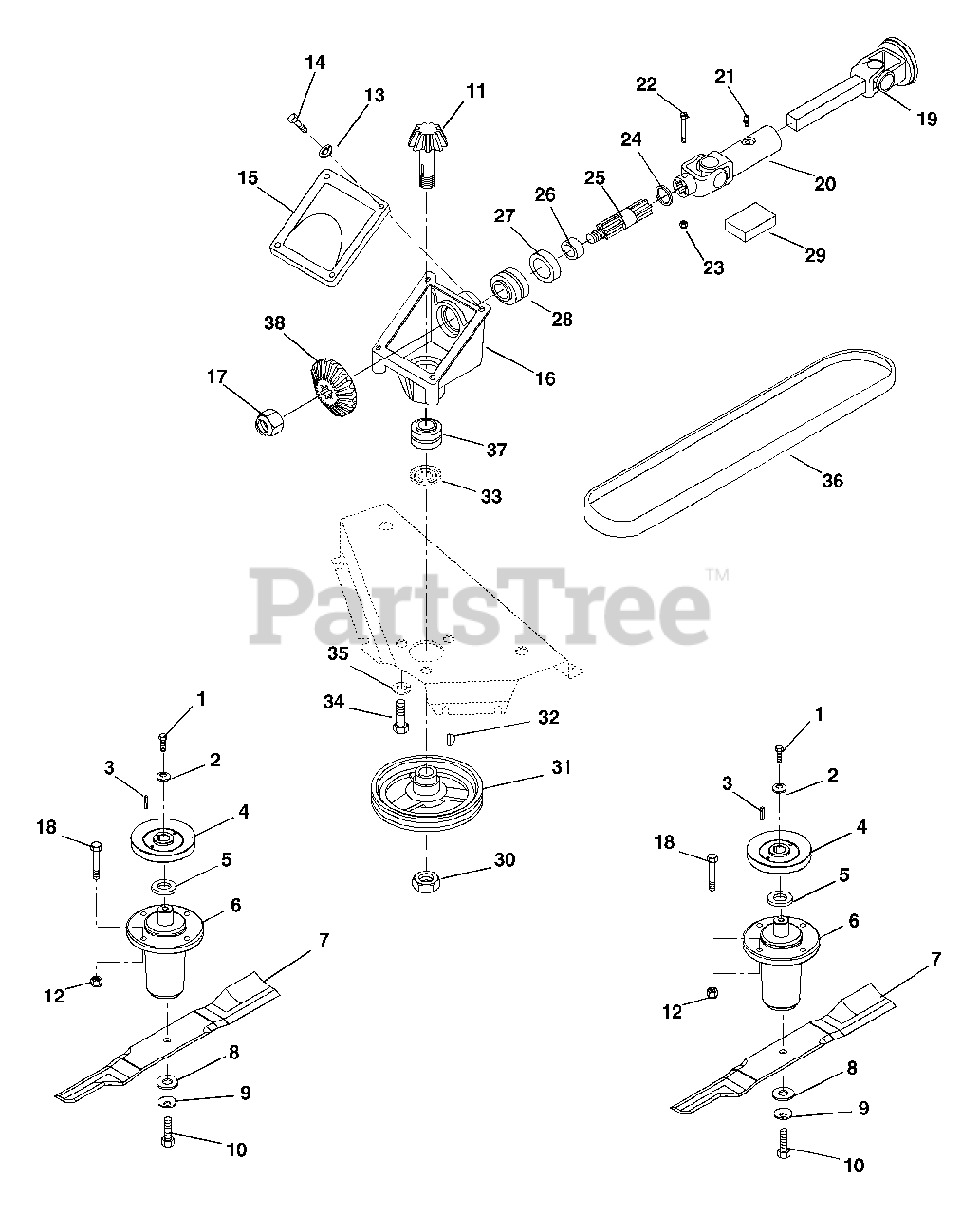

885003 - Gravely 40" Deck for 2-Wheel Tractor (SN: 010000 & Above) Mower Drive Parts Diagram

40" Deck for 2-Wheel Tractor

Mower Drive Parts Diagram

  • Title

1

Gravely 05974500

Bolt-Hex .38-16 x 1.00 YZ Grade 8 with Epoxy Patch
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 00597000

Washer, Cupped, Serrated .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 06602200

Key-Square .25X1.00 x .25 SAE 860 OR SAE 1035

$3.99

$

In Stock, only 2 left!

0

4

Gravely 04906000

Sheave, Spindle

$113.99

$

Usually ships in 4-12 days

0

5

Gravely 09238200

Slinger, Dust

$17.99

$

In Stock, only 1 left!

0

6

Gravely 58803600

Maintenance Free Spindle Assembly

$267.99

$

In Stock, only 1 left!

0

7

Gravely 08899000

Mower Blade Tungsten Carbide
(Superseded to 08904600)

$34.99

$

In Stock, only 1 left!

0

8

Gravely 06435200

Washer,Flat .64 x 1.81 x .250
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06445700

Washer-Bellville .63 x X1.63 x .14

$4.99

$

In Stock, Qty 6

0

10

Gravely 07053400

Bolt, Blade

$46.99

$

In Stock, Qty 7

0

11

Gravely 051326

Shaft, Gear Pinion
(Superseded to 08790400)

$

$

Not available

12

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

13

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 19

0

14

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 010982

Cover, Gear Housing
(Superseded to 08860500)

$43.99

$

Usually ships in 4-12 days

0

16

Gravely 014636

Casting, Gear Box
(Superseded to 08700400)

$298.99

$

Usually ships in 4-12 days

0

17

Gravely 06540800

Nut-Locking-Nylon .75-10

$5.99

$

In Stock, Qty 6

0

18

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 025135

Shaft, Prop Square Bar
(Superseded to 08532000)

$

$

Not available

20

Gravely 013518

Joint, U Female Eng
(Superseded to 08700200)

$

$

Not available

21

Gravely 411027

Fitting, Lube .25-28
(Superseded to 07012600)

$

$

Not available

22

Gravely 05967100

Bolt-Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

In Stock, only 1 left!

0

24

Gravely 014642

Ring-Retaining 1.106 x .95
(Superseded to 05711600)

$9.49

$

Usually ships in 4-12 days

0

25

Gravely 031412

Shaft
(Superseded to 08729500)

$

$

Not available

26

Gravely 014641

Bushing Flange 1.00 x 1.25 x 1.25
(Superseded to 08700500)

$23.99

$

Usually ships in 4-12 days

0

27

Gravely 014646

Seal 1.250 x 1.983 x .250
(Superseded to 05613700)

$14.99

$

In Stock, only 1 left!

0

28

Gravely 014640

Bearing-Assembly 1.000 x 1.980 x 1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

29

Gravely 039739

Journal Cross and Bearing Assembly
(Superseded to 03155800)

$

$

Not available

30

Gravely 06537700

Nut-Jam .75-10

$2.49

$

In Stock, only 2 left!

0

31

Gravely 025131

Sheave, Drive
(Superseded to 08531800)

$

$

Not available

32

Gravely 431787

Key-Woodruff .19 x .63
(Superseded to 06609300)

$2.99

$

In Stock, Qty 10

0

33

Gravely 014645

Seal 1.250 x 1.691 x .310
(Superseded to 05613600)

$15.99

$

In Stock, only 4 left!

0

34

Gravely 05947100

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

35

Gravely 06307300

Washer-Locking .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

36

Gravely 025129

V-Belt A-Section 33.25 x .504
(Superseded to 07219500)

$42.99

$

Usually ships in 4-12 days

0

37

Gravely 014644

Bearing-Assembly .75 x 1.781 x 1.499
(Superseded to 05419400)

$105.99

$

Usually ships in 4-12 days

0

38

Gravely 051325

Gear, Bevel
(Superseded to 08790300)

$240.99

$

Usually ships in 4-12 days

0
