885002 - Gravely 30" Deck for 2-Wheel Tractor (SN: 000101 & Above) 30" Mower Decks Parts Diagram

30" Deck for 2-Wheel Tractor

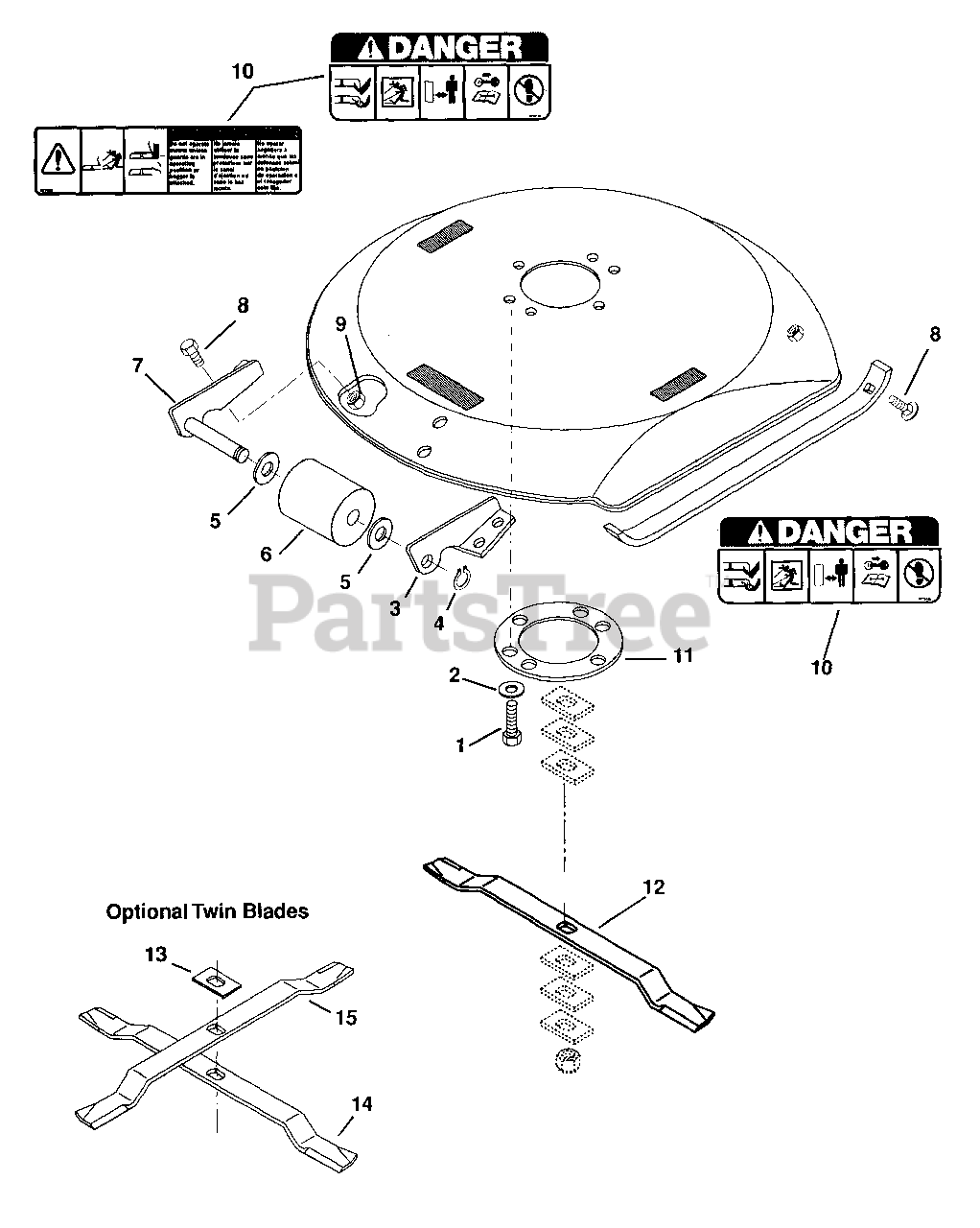

30" Mower Decks Parts Diagram

  • Title

1

Gravely 05970600

Bolt-Hex .50-13 x 1.75 Grade 5
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

3

Gravely 021399

Bracket-Wheel LH
(Superseded to 08517100)

$

$

Not available

4

Gravely 05708300

Ring-Retaining-External .625 x .042

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06430300

Washer-Flat-Stainless-Steel .656 x 1.25 x .1

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 015351

Roller-Gage
(Superseded to 07520100)

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 021400

Weldment-Bracket
(Superseded to 08517200)

$145.99

$

Usually ships in 4-12 days

0

8

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 63611400

Decal Set Decks
(Superseded to 53610000)

$66.99

$

In Stock, only 1 left!

0

11

Gravely 037062

Support Deck
(Superseded to 08539400)

$

$

Not available

12

Gravely 022528

Rotary Mower Blade .375
(Superseded to 08526100)

Note: (Model 885002)

$

$

Not available

12

Gravely 044933

Rotary Mower Blade .375
(Superseded to 08526100)

Note: (Model 885301)

$

$

Not available

13

Gravely 022527

Spacer-Cutting Height-Thin 1/8
(Superseded to 08526000)

Note: Optional Twin Blades

$8.49

$

Usually ships in 4-12 days

0

14

Gravely 022529

Blade-30" Mower-Thin
(Superseded to 08526200)

Note: Optional Twin Blades

$

$

Not available

15

Gravely 022530

Blade-30" Mower-Thin Cross Slot
(Superseded to 08526300)

Note: Optional Twin Blades

$

$

Not available
