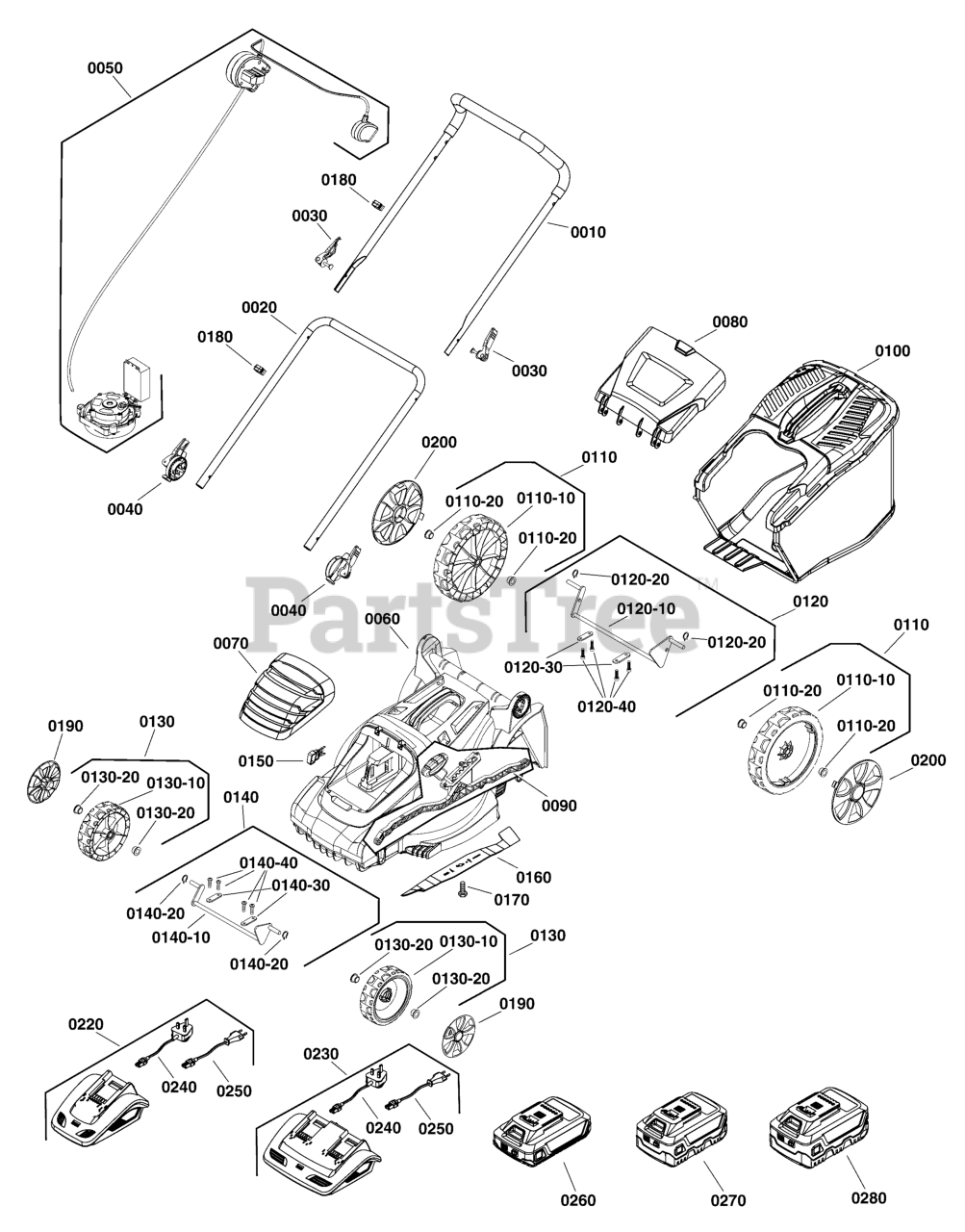

883265 - Murray Twin, 18V 37cm Walk-Behind Mower Kit Walk Mower Parts Diagram

Twin, 18V 37cm Walk-Behind Mower Kit

Walk Mower Parts Diagram

  • Title
0010

Murray BP20211A

UPPER HANDLE ASSEMBLY

$

$

Currently unavailable

0020

Murray BP20212A

LOWER HANDLE ASSEMBLY

$

$

Currently unavailable

0030

Murray BP20202A

UPPER CAM LOCK ASSEMBLY

$

$

Currently unavailable

0040

Murray BP20213A

LOWER CAM LOCK ASSEMBLY

$

$

Currently unavailable

0050

Murray BP20214A

MOTOR & CONTROL ASSEMBLY

$

$

Currently unavailable

0060

Murray BP20215A

DECK & MOTOR COVER ASSEMBLY

$

$

Currently unavailable

0070

Murray BP20216A

BATTERY COVER ASSEMBLY

$

$

Currently unavailable

0080

Murray BP20217A

REAR FLAP ASSEMBLY

$

$

Currently unavailable

0090

Murray BP20218A

HEIGHT ADJUSTMENT ASSEMBLY

$

$

Currently unavailable

0100

Murray BP20219A

GRASS CATCHER ASSEMBLY

$

$

Currently unavailable

0110

Murray BP20171A

REAR WHEEL ASSEMBLY

$

$

Currently unavailable

0110-10

WHEEL, Rear

$

$

Not available

0110-20

BUSHING

$

$

Not available

0120

Murray BP20220A

REAR AXLE ASSEMBLY

$

$

Currently unavailable

0120-10

AXLE, Rear

$

$

Not available

0120-20

CLIP, Wheel

$

$

Not available

0120-30

TAB

$

$

Not available

0120-40

SCREW

$

$

Not available

0130

Murray BP20173A

FRONT WHEEL ASSEMBLY

$

$

Currently unavailable

0130-10

WHEEL, Front

$

$

Not available

0130-20

BUSHING

$

$

Not available

0140

Murray BP20221A

FRONT AXLE ASSEMBLY

$

$

Currently unavailable

0140-10

AXLE, Front

$

$

Not available

0140-20

CLIP, Wheel

$

$

Not available

0140-30

TAB

$

$

Not available

0140-40

SCREW

$

$

Not available

0150

Murray BP20175A

SAFETY KEY

$

$

Currently unavailable

0160

Murray BP20222A

BAR BLADE, 37CM

$

$

Currently unavailable

--

Murray 1688037

RETAIL BLADE ASSEMBLY

Note: (Option)

$

$

Currently unavailable

0170

Murray BP20223A

BOLT, Blade

$

$

Currently unavailable

0180

Murray BP20178A

CLIP, Cable

$

$

Currently unavailable

0190

Murray BP20225A

HUB CAP, Front

$

$

Currently unavailable

0200

Murray BP20224A

HUB CAP, Rear

$

$

Currently unavailable

0220

Murray 1697083

CHARGER, 18V, 3A

Note: (Option, Includes Ref. Nos. 0240 & 250)

$

$

Currently unavailable

0230

Murray 1697084

CHARGER, Twin, 18V 6A

Note: (Option, Includes Ref. Nos. 0240 & 250)

$

$

Currently unavailable

0240

Murray BP20190A

ELECTRICAL CORD UK, 18V Charger

Note: (Option)

$

$

Currently unavailable

0250

Murray BP20189A

ELECTRICAL CORD EU, 18V Charger

Note: (Option)

$

$

Currently unavailable

0260

Murray 883251

BATTERY, 18V, 2.5AH

Note: (Option)

$

$

Currently unavailable

0270

Murray 883252

BATTERY, 18V, 4.0AH

Note: (Option)

$

$

Currently unavailable

0280

Murray 883253

BATTERY, 18V, 5.0AH

Note: (Option)

$

$

Currently unavailable
