883243 - Murray 26cc Leaf Blower Vac Engine Group (883243) Parts Diagram

26cc Leaf Blower Vac

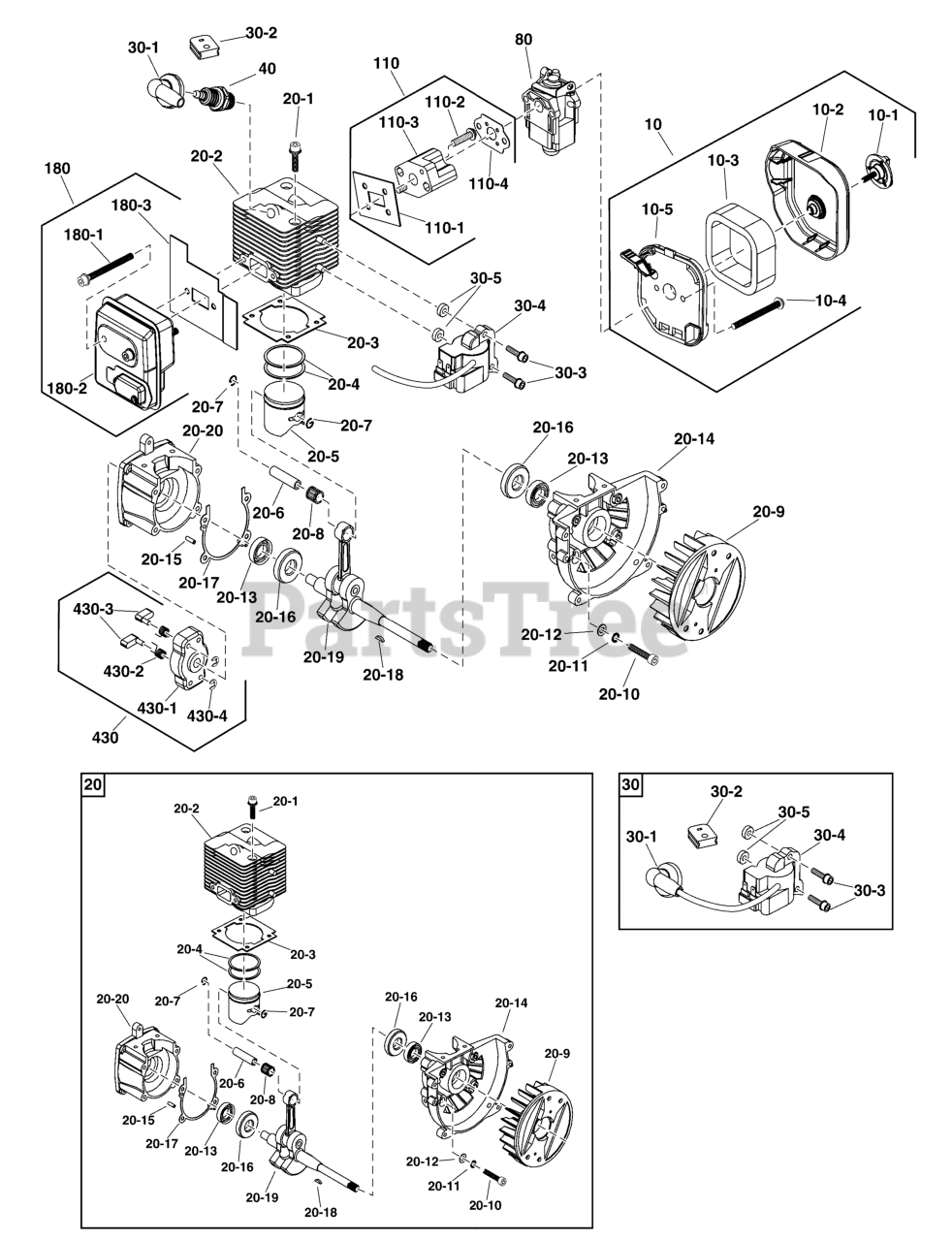

Engine Group (883243) Parts Diagram

  • Title

10

Murray 771949

COVER ASSEMBLY, Carburetor

Note: (Includes Ref. Nos. 10-1 through 10-5

$26.99

$

Usually ships in 2-12 days

0

10-1

Murray 771950

KNOB

$5.49

$

Usually ships in 2-12 days

0

10-2

Murray 771951

COVER, Air Filter

$10.99

$

Usually ships in 2-12 days

0

10-3

Murray 771952

AIR CLEANER ELEMENT

$3.99

$

Usually ships in 2-12 days

0

10-4

SCREW, M5 x 55

Note: (Not a serviceable part. Order Ref. 10)

$

$

Not available

10-5

INSIDE COVER ASSEMBLY, Air Cleaner

Note: (Not a serviceable part. Order Ref. 10)

$

$

Not available

20

SHORT BOCK ASSEMBLY, 26cc

Note: (Not a serviceable part. Order 883243)

$

$

Not available

20-1

CAPSCREW, M5 x 25

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-2

CYLINDER HEAD

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-3

GASKET, Cylinder Head

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-4

PISTON Ring

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-5

PISTON

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-6

PIN, Piston

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-7

CIRCLIP, Piston

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-8

NEEDLE BEARING

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-9

FLYWHEEL

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-10

CAPSCREW, Socket Head, M5 x 25

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-11

WASHER, Split Lock, M5

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-12

WASHER, M5

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-13

OIL SEAL

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-14

CRANKCASE, Front

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-15

ORIENTATION PIN

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-16

BALL BEARING

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-17

GASKET, Crankcase

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-18

KEY, Crankshaft

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-19

CRANKSHAFT ASSEMBLY

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

20-20

CRANKCASE, Rear

Note: (Not a serviceable part. Order Ref. 20)

$

$

Not available

30

Murray 771953

IGNITION UNIT

Note: (Includes Ref. Nos. 30-1 through 30-5

$30.99

$

Usually ships in 2-12 days

0

30-1

BOOT, Spark Plug

Note: (Not a serviceable part. Order Ref. 30)

$

$

Not available

30-2

PLUG

Note: (Not a serviceable part. Order Ref. 30)

$

$

Not available

30-3

SCREW M4 x 16

Note: (Not a serviceable part. Order Ref. 30)

$

$

Not available

30-4

MAGNETO STARTER

Note: (Not a serviceable part. Order Ref. 30)

$

$

Not available

30-5

PAD, Insulation

Note: (Not a serviceable part. Order Ref. 30)

$

$

Not available

40

Murray 771954

SPARK PLUG, NGK BPMR7A

$12.99

$

Usually ships in 2-12 days

0

80

Murray 771955

CARBURETOR

$46.99

$

Usually ships in 2-12 days

0

110

Murray 771956

INTAKE MANIFOLD ASSEMBLY

Note: (Includes Ref. Nos. 110-1 through 110-4

$10.99

$

Usually ships in 2-12 days

0

110-1

GASKET, Cylinder

Note: (Not a serviceable part. Order Ref. 110)

$

$

Not available

110-2

SCREW, M5 x 20

Note: (Not a serviceable part. Order Ref. 110)

$

$

Not available

110-3

INLET MANIFOLD

Note: (Not a serviceable part. Order Ref. 110)

$

$

Not available

110-4

GASKET, Carburetor

Note: (Not a serviceable part. Order Ref. 110)

$

$

Not available

180

Murray 771957

MUFFLER ASSEMBLY

Note: (Includes Ref. Nos. 180-1 through 180-3

$20.99

$

Usually ships in 2-12 days

0

180-1

CAPSCREW, M5 x 55

Note: (Not a serviceable part. Order Ref. 180)

$

$

Not available

180-2

MUFFLER

Note: (Not a serviceable part. Order Ref. 180)

$

$

Not available

180-3

GASKET, Muffler

Note: (Not a serviceable part. Order Ref. 180)

$

$

Not available

430

Murray 771958

STARTER PULLEY ASSEMBLY

Note: (Includes Ref. Nos. 430-1 through 430-4

$5.49

$

Usually ships in 2-12 days

0

430-1

BODY, Starter Pulley

Note: (Not a serviceable part. Order Ref. 430)

$

$

Not available

430-2

SPRING, Starter Pulley

Note: (Not a serviceable part. Order Ref. 430)

$

$

Not available

430-3

ARM, Starter Pulley

Note: (Not a serviceable part. Order Ref. 430)

$

$

Not available

430-4

E-CLIP

Note: (Not a serviceable part. Order Ref. 430)

$

$

Not available
