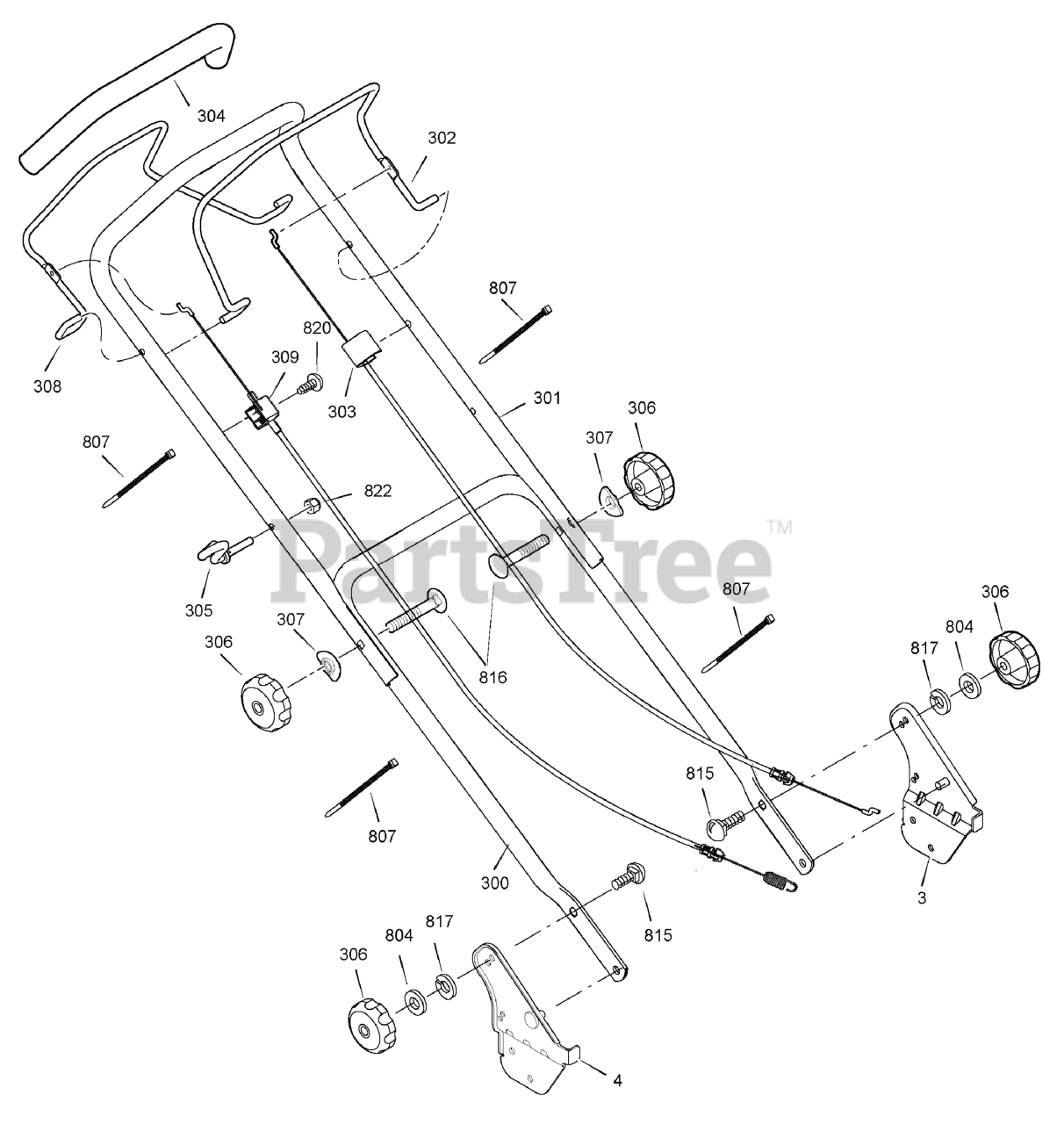

880419X51N - Murray 16" Walk-Behind Mower, Canada (2009) Handle Assembly Parts Diagram

16" Walk-Behind Mower, Canada

Handle Assembly Parts Diagram

  • Title

300

Murray 700143

HANDLE, Lower
(Superseded to 880608AYP)

$52.99

$

Usually ships in 2-12 days

0

301

Murray 700144

HANDLE, Upper
(Superseded to 880470AYP)

$85.99

$

Usually ships in 2-12 days

0

302

Murray 700157

LEVER, Engine Stop

$

$

Currently unavailable

303

Murray 700158

CABLE, Engine Stop
(Superseded to 880279YP)

$18.99

$

In Stock, only 1 left!

0

304

Murray 700244

TUBING, Foam
(Superseded to 880729YP)

$13.99

$

Usually ships in 2-12 days

0

305

Murray 672510MA

GUIDE, Rope, 1/4-20

$5.99

$

Usually ships in 2-12 days

0

306

Murray 700145

KNOB, 5/16-18

$

$

Currently unavailable

307

Murray 700148

WASHER, Formed
(Superseded to 880615YP)

$4.99

$

Usually ships in 2-12 days

0

308

Murray 700175

LEVER, Drive

$

$

Currently unavailable

309

Murray 700115

CABLE ASSEMBLY, Drive
(Superseded to 880297YP)

$32.99

$

Usually ships in 2-12 days

0

804

Murray 700150

WASHER, 5/8
(Superseded to 880607YP)

$3.99

$

Usually ships in 2-12 days

0

807

Murray 700010

CABLE TIE
(Superseded to 880029YP)

$3.99

$

Usually ships in 2-12 days

0

815

Murray 700146

BOLT, Carriage, 5/16-18 x 1-1/8
(Superseded to 880576YP)

$3.49

$

Usually ships in 2-12 days

0

816

Murray 002X77MA

BOLT, Carriage, 5/16-18 x 2

$3.99

$

In Stock, only 2 left!

0

817

Murray 700078

Washer, Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

820

Murray 26X256MA

SCREW, Tap, #10 x 1-1/4

$

$

Not available
