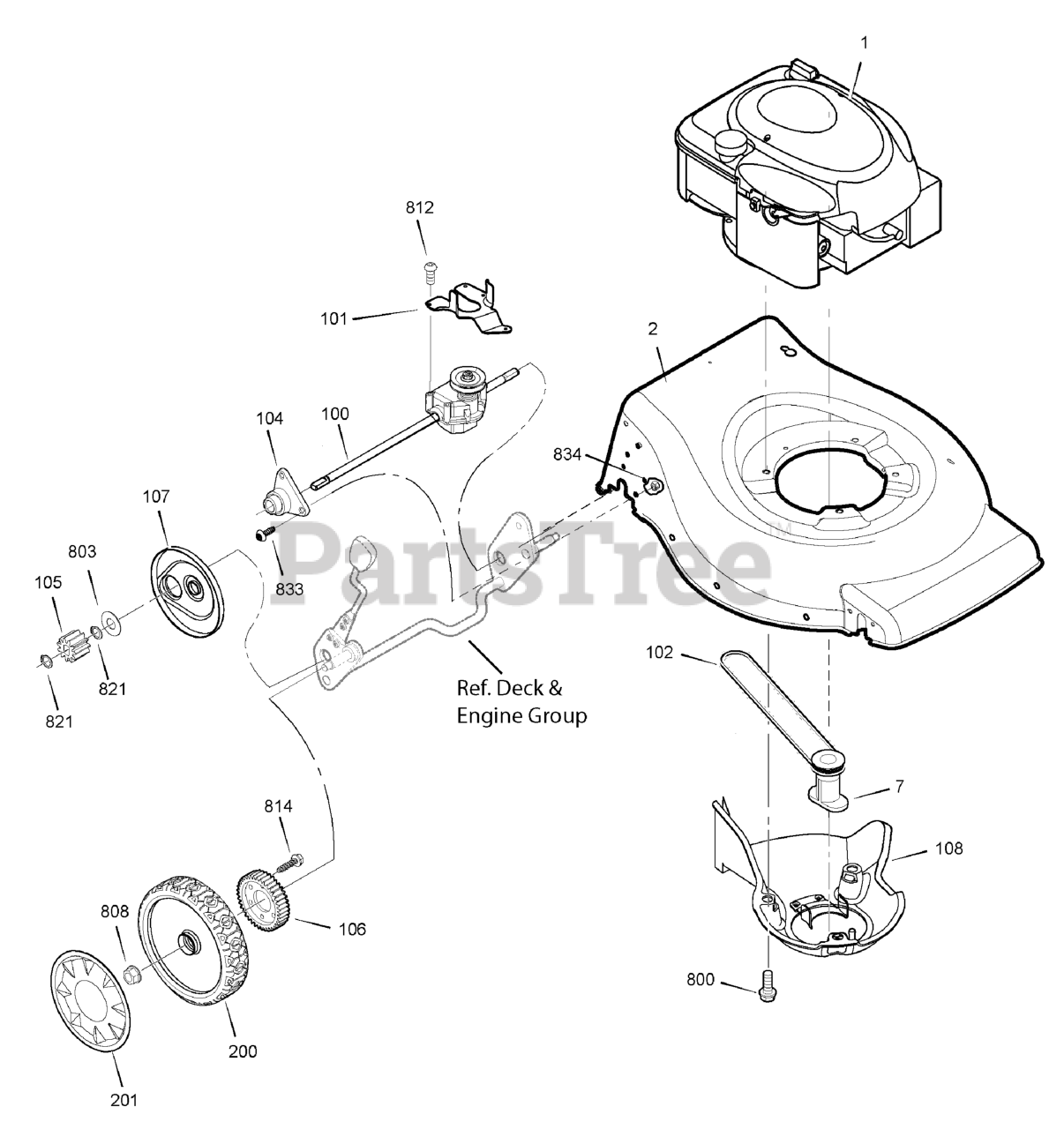

880419X51N - Murray 16" Walk-Behind Mower, Canada (2009) Drive Group Parts Diagram

16" Walk-Behind Mower, Canada

Drive Group Parts Diagram

  • Title

1

Murray 09T502-0131-B1

* ENGINE

Note: (Engine Model: 09T5020131B1)

$

$

Currently unavailable

2

Murray 880870YP

MOWER HOUSING

$

$

Currently unavailable

7

Murray 700214

BLADE ADAPTER ASSEMBLY
(Superseded to 880567YP)

$31.99

$

In Stock, only 1 left!

0

100

Murray 700217

TRANSMISSION
(Superseded to 880379YP)

$91.99

$

Usually ships in 2-12 days

0

101

Murray 700120

BELT GUIDE, Transmission
(Superseded to 880282YP)

$12.99

$

Usually ships in 2-12 days

0

102

Murray 700216

V-BELT
(Superseded to 880424YP)

$22.99

$

Usually ships in 2-12 days

0

104

Murray 880787YP

SLEEVE ASSEMBLY, Rear Axle

$17.99

$

Usually ships in 2-12 days

0

105

Murray 700132

GEAR, Pinion
(Superseded to 880226YP)

$7.99

$

Usually ships in 2-12 days

0

106

Murray 700134

GEAR, Drive

$

$

Not available

107

Murray 700161

DUST COVER
(Superseded to 880640YP)

$22.99

$

In Stock, only 1 left!

0

108

Murray 700221

BELT COVER ASSEMBLY
(Superseded to 700221YP)

$41.99

$

Usually ships in 2-12 days

0

200

Murray 700133

WHEEL, Rear
(Superseded to 880194YP)

$

$

Not available

201

Murray 700195

HUBCAP, Rear
(Superseded to 880699YP)

$13.99

$

Usually ships in 2-12 days

0

800

Murray 0025X6MA

SCREW, Hex Head, 3/8-16 x 1

$5.49

$

Usually ships in 2-12 days

0

803

Murray 700131

WASHER, Thrust
(Superseded to 880324YP)

$3.49

$

Usually ships in 2-12 days

0

808

Murray 015X84MA

NUT, Flange, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

812

Murray 880760YP

SCREW, #10 x 1

$4.49

$

Usually ships in 2-12 days

0

814

Murray 26X296MA

SCREW, 1/4-15 x 3/4

$4.49

$

In Stock, only 1 left!

0

821

Murray 700237

RING, External Retaining
(Superseded to 880269YP)

$3.99

$

Usually ships in 2-12 days

0

822

Murray 15X116MA

NUT, Hex, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

833

Murray 880845YP

SCREW, Torx, 1/4-20 x 5/8

$3.49

$

Usually ships in 2-12 days

0

834

Murray 880859YP

NUT, Flange Lock, 1/4-20

$3.99

$

Usually ships in 2-12 days

0
