880395x57NA - Murray 19" Walk-Behind Mower (2006) 482mm (19 in) Push Mower Parts Diagram

19" Walk-Behind Mower

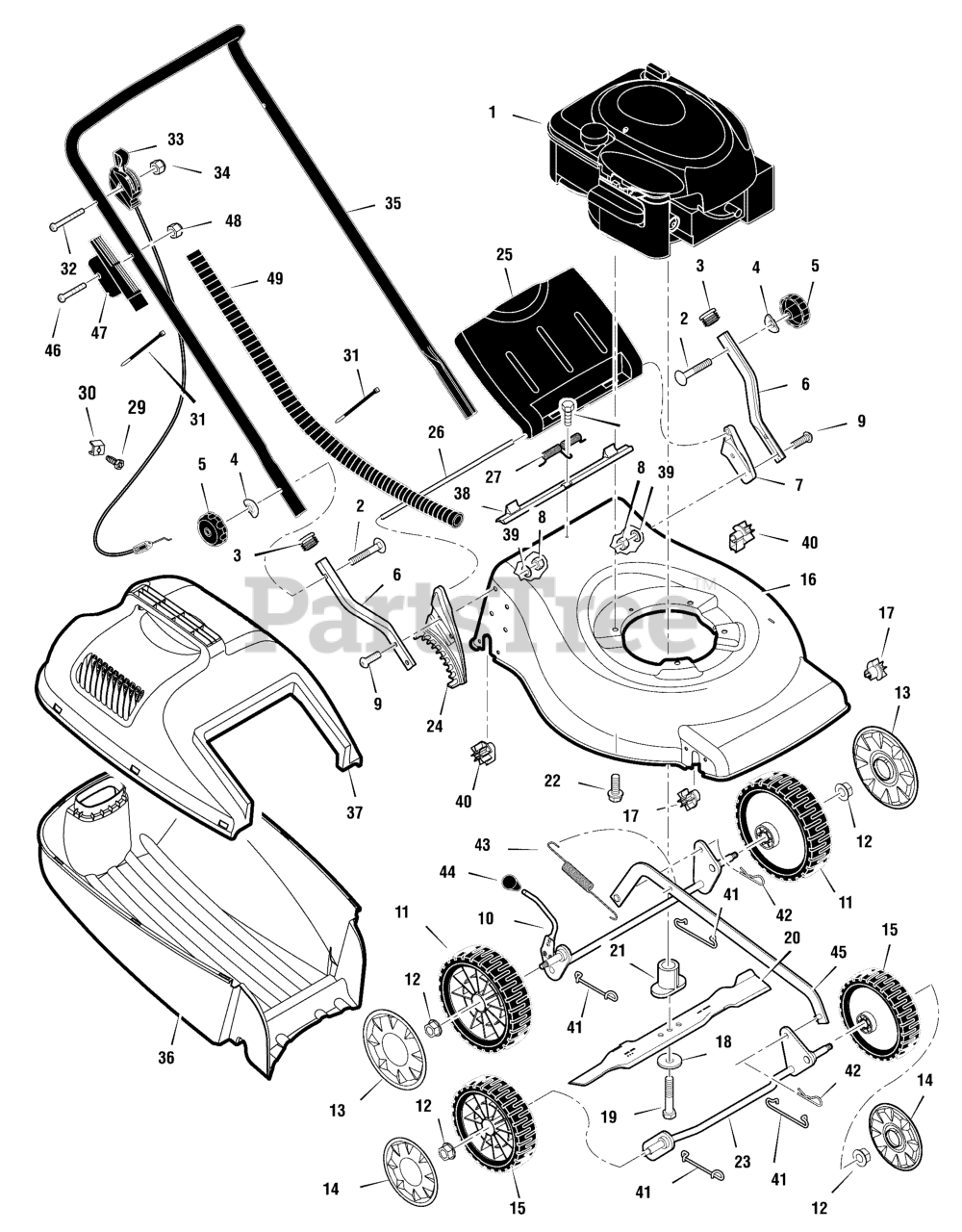

482mm (19 in) Push Mower Parts Diagram

  • Title

1

ENGINE, Briggs & Stratton

$

$

Not available

2

Murray 700004

BOLT

$

$

Currently unavailable

3

Murray 700019

PLUG, 7/8 inch

$

$

Currently unavailable

4

Murray 700006

WASHER

$

$

Currently unavailable

5

Murray 700005

KNOB

$

$

Currently unavailable

6

Murray 700018

HANDLE, Lower

$

$

Currently unavailable

7

Murray 700052

BRACKET, Left Handle

$

$

Currently unavailable

8

Murray 700002

LOCKNUT
(Superseded to 880020YP)

$3.99

$

Usually ships in 2-12 days

0

9

Murray 700003

BOLT, M8x1.25

$

$

Currently unavailable

10

Murray 700053

CROSSBAR, Rear Assembly

$

$

Currently unavailable

11

Murray 700054

WHEEL, 200 mm

$

$

Currently unavailable

12

Murray 700016

LOCKNUT, 3/18-16

$

$

Currently unavailable

13

Murray 700055

CAP, Hub, 200 mm

$

$

Not available

14

Murray 700015

CAP, Hub, 175 mm

$

$

Not available

15

Murray 700057

Wheel, 175 mm

$

$

Currently unavailable

16

Murray 700058

HOUSING, Mower

$

$

Currently unavailable

17

Murray 700059

BUSHING, Front Crossbar
(Superseded to 880050YP)

$4.99

$

Usually ships in 2-12 days

0

18

Murray 700012

WASHER, Belleville

$

$

Not available

19

Murray 700011

BOLT
(Superseded to 880034YP)

$4.49

$

Usually ships in 2-12 days

0

20

Murray 700060

BLADE, 19 inch

$

$

Currently unavailable

21

Murray 700000

ADAPTER, Blade
(Superseded to 880009YP)

$18.99

$

Usually ships in 2-12 days

0

22

Murray 700013

BOLT, Engine Mounting

$

$

Currently unavailable

23

Murray 700061

CROSSBAR, Front Assembly
(Superseded to 880053YP)

$48.99

$

Usually ships in 2-12 days

0

24

Murray 700062

BRACKET, Right Handle Index

$

$

Currently unavailable

25

Murray 700063

DOOR, Rear

$

$

Currently unavailable

26

Murray 700064

ROD, Rear Door

$

$

Currently unavailable

27

Murray 700001

SPRING, Torsion
(Superseded to 700001YP)

$5.49

$

Usually ships in 2-12 days

0

28

Murray 700047

SCREW

$

$

Currently unavailable

29

Murray 700048

SCREW

$

$

Currently unavailable

30

Murray 700049

CLAMP, Cable

$

$

Currently unavailable

31

Murray 700010

TIE, Cable
(Superseded to 880029YP)

$3.99

$

Usually ships in 2-12 days

0

32

Murray 700009

SCREW

$

$

Not available

33

Murray 700065

CONTROL, Throttle

$

$

Currently unavailable

34

Murray 700008

LOCKNUT

$

$

Currently unavailable

35

Murray 700066

HANDLE, Upper

$

$

Currently unavailable

36

Murray 700067

CATCHER, Grass Bottom, 19"

$

$

Currently unavailable

37

Murray 700068

CATCHER, Grass Top, 19"

$

$

Currently unavailable

38

Murray 700069

SEAL, Rear Door, 19"

$

$

Currently unavailable

39

Murray 700078

WASHER, Lock Split
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

40

Murray 700070

BUSHING, Rear Crossbar

$

$

Currently unavailable

41

Murray 700071

CLIP, Crossbar
(Superseded to 881163YP)

$8.99

$

In Stock, Qty 7

0

42

Murray 700072

CLIP, Hair Pin

$

$

Currently unavailable

43

Murray 700073

SPRING, Extension
(Superseded to 880052YP)

$6.99

$

Usually ships in 2-12 days

0

44

Murray 700074

KNOB, Height Adjuster

$

$

Currently unavailable

45

Murray 700075

LINK, Assembly Single Lever, 19"

$

$

Currently unavailable

46

Murray 94120

SCREW
(Superseded to 690670)

$5.99

$

In Stock, only 4 left!

0

47

Murray 498197

INTAKE, Remote Air

$

$

Currently unavailable

48

Murray 95093

LOCKNUT

$

$

Currently unavailable

49

Murray 273308

HOSE, Remote Air Cleaner

$

$

Currently unavailable

--

Murray 880429

MANUAL, Owner's

$

$

Currently unavailable
