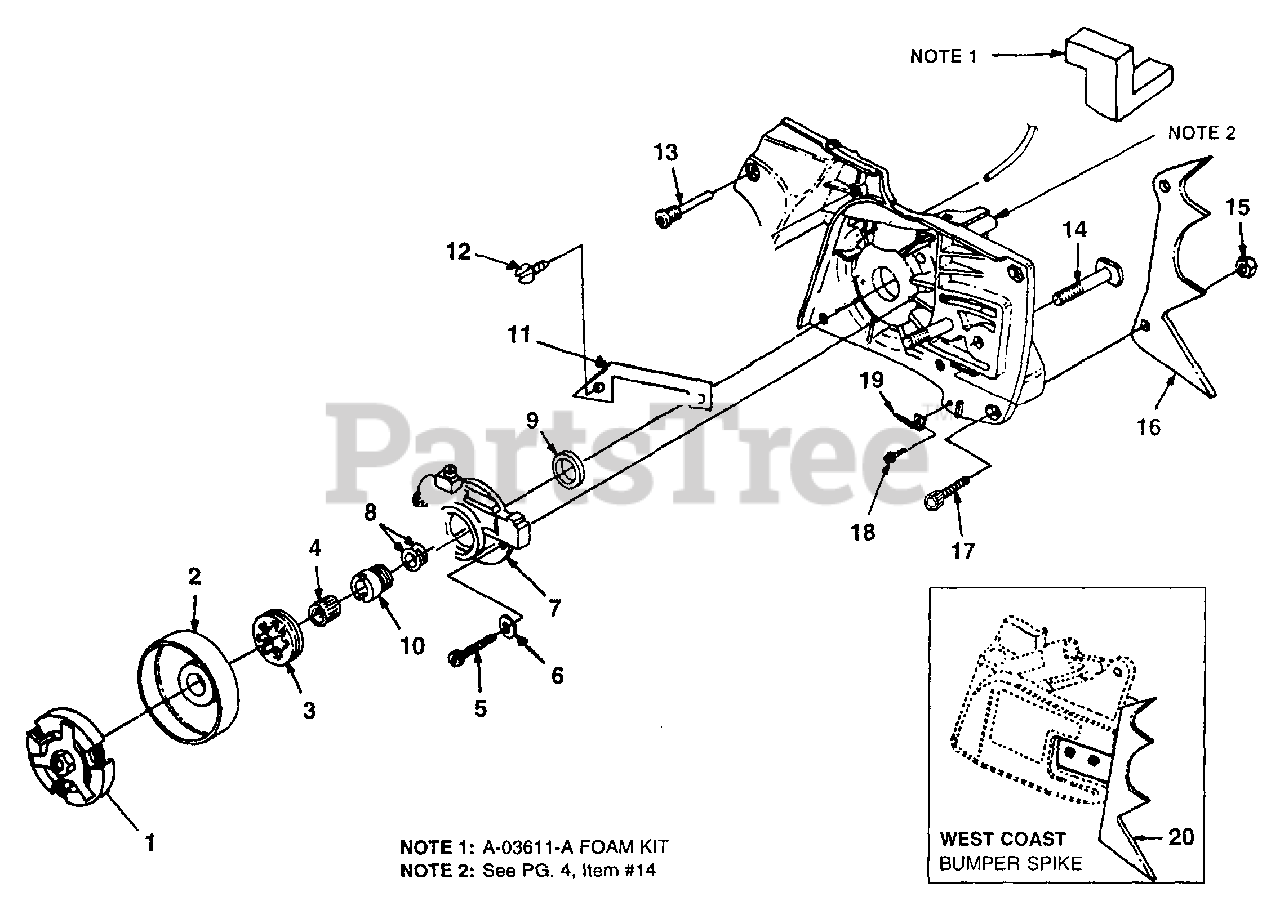

8800 HG (UT-10810) - Homelite Chainsaw Clutch - Oil Pump Parts Diagram

Chainsaw

Clutch - Oil Pump Parts Diagram

  • Title

1

Homelite A00022A

CLUTCH
(Superseded to UP05841)

$

$

Not available

2

Homelite A003511

DRUM & HUB

$

$

Not available

3

Homelite 95058A

SPROCKET (7T X 3/8P)

$

$

Currently unavailable

Homelite 63285A

SPROCKET (7T X .404)

$

$

Not available

4

Homelite 98883

BEARING - Needle

$

$

Not available

5

Homelite 82562

SCREW - Cap Socket Hd. (10-24 X 7/8")
(Superseded to UP06535)

Note: Torque Spec. 20 - 25 In/Lbs, 2.3 - 2.8 Nm; 262 Red Loctite Required

$

$

Not available

6

Homelite 84003

WASHER - Flat (010)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite A04891

OIL PUMP

$

$

Not available

8

Homelite 84119

WASHER-Thrust

$

$

Not available

9

Homelite 58308B

SEAL - Shaft
(Superseded to UP07021)

$

$

Not available

10

Homelite A00357A

WORM & BEARING

$

$

Not available

11

Homelite 04621

SHIELD - Pump

$

$

Not available

12

Homelite 80575

SCREW - Slotted Hd. (8-32 X 1/4")

Note: Torque Spec. 30 - 40 In/Lbs, 3.4 - 4.5 Nm; 242 Blue Loctite Required

$

$

Not available

13

Homelite 93367

PIN - Isolator

Note: Torque Spec. 60 - 70 In/Lbs, 6.8 - 7.9 Nm

$

$

Not available

14

Homelite 93918A

BOLT - Guide Bar (3/8-16 X 2")
(Superseded to UP07169)

$

$

Not available

15

Homelite 81225

NUT - Hex (#12-24)

$

$

Not available

16

Homelite 01233

BUMPER SPIKE

$

$

Not available

17

Homelite 82572

SCREW - Socket Cap (12-24 X 5/8")

Note: Hand Tight

$

$

Not available

18

Homelite 96620

SCREW - Torx Hd. (10-24 X 1/2")

Note: Torque Spec. 50 - 60 In/Lbs, 5.6 - 6.8 Nm

$4.99

$

Usually ships in 3-7 days

0

19

Homelite 04626

CHAIN - Stop

$

$

Not available

20

Homelite A98969A

BUMPER SPIKE (West Coast)

$

$

Not available
