88-0600 - Toro Snow Cab Kit for CCR 1000/2000, 521, 622 and 724 Snow Throwers FRAME ASSEMBLY Parts Diagram

Snow Cab Kit for CCR 1000/2000, 521, 622 and 724 Snow Throwers

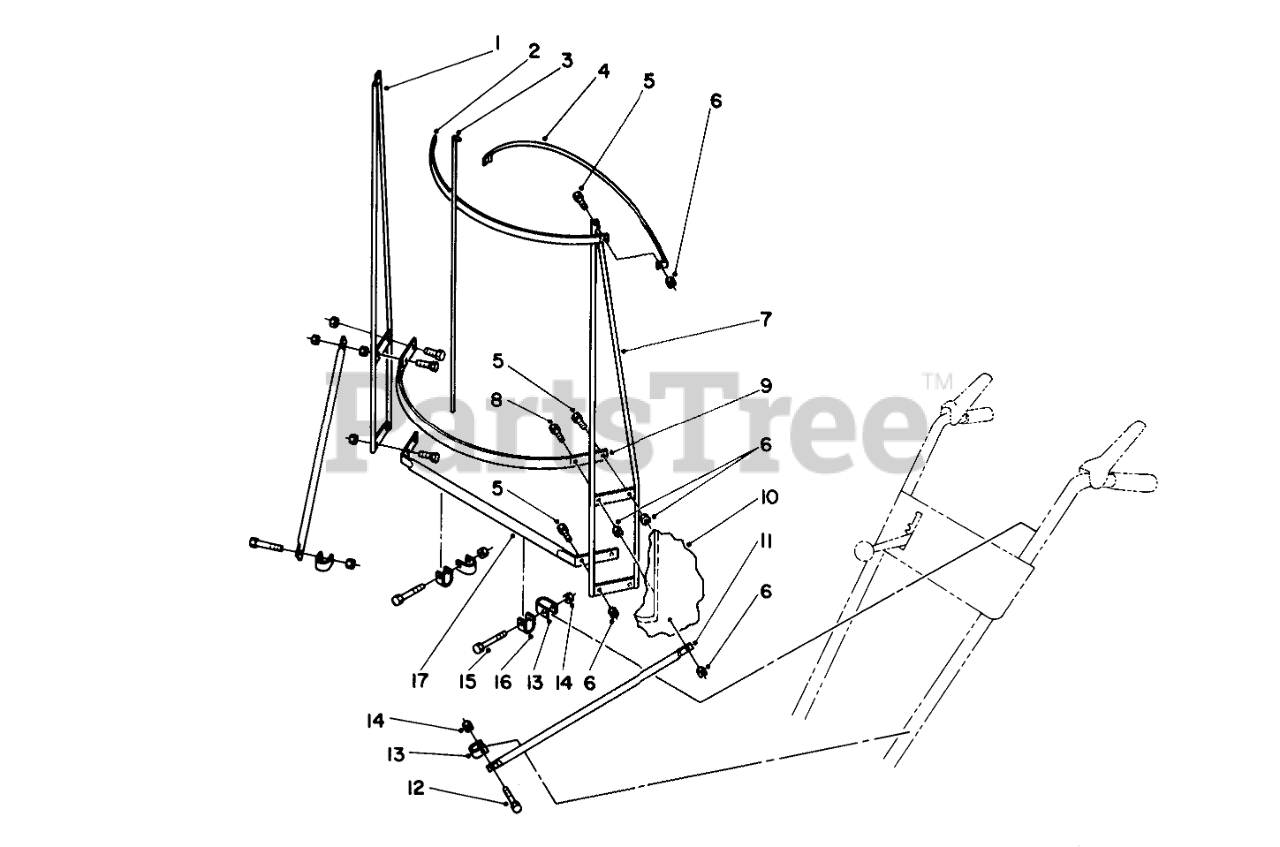

FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 88-0640

RH SIDE FRAME

$

$

Not available

2

Toro 88-0630

TOP BOW

$

$

Not available

3

Toro 88-0650

CENTER SUPPORT

$

$

Not available

4

Toro 88-0620

TOP FRAME

$

$

Not available

5

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

7

Toro 88-0700

LH SIDE FRAME

$

$

Not available

8

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 88-0670

BOTTOM BOW

$

$

Not available

10

Toro 88-0610

VINYL COVER

$570.99

$

Usually ships in 3-6 days

0

11

Toro 88-0660

BRACE

$

$

Not available

12

Toro 322-41

SCREW-HH
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

13

Toro 88-0710

"U" CLAMP - .875

$

$

Not available

Toro 88-0720

"U" CLAMP - 1.125

Note: Not illustrated

$

$

Not available

14

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

15

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

16

Toro 88-0690

"U" CLAMP - .750

$

$

Not available

17

Toro 88-0680

CROSS BAR

$

$

Not available
