8799-1 - Niagara 5,000 Watt Portable Generator Receptacle And Control Panel Parts Diagram

5,000 Watt Portable Generator

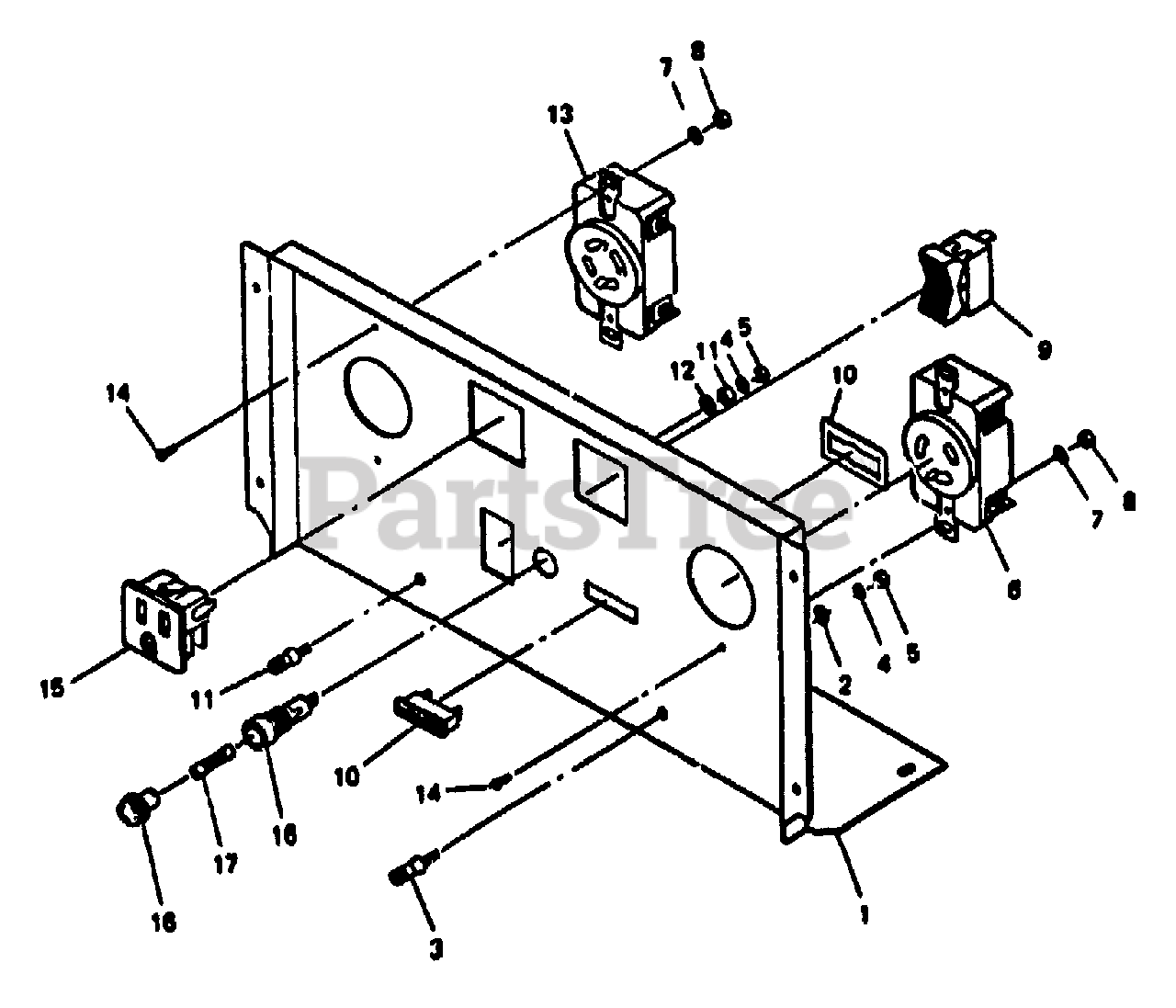

Receptacle And Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 45647

PANEL - Manual Start Units Only

$

$

Currently unavailable

1

Briggs & Stratton 47482

PANEL - Electric Start Units Only

$

$

Currently unavailable

2

Briggs & Stratton 26579

WASHER, External Shakeproof - No. 8

$

$

Not available

3

Briggs & Stratton 25368

TERMINAL, Battery Charge - Black

$

$

Not available

4

Briggs & Stratton 23365

WASHER, Internal Shakeproof - No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 37807

RECEPTACLE - 120 VAC, 30 Ampere

$

$

Currently unavailable

7

Briggs & Stratton 22152

WASHER, Lock - No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22158

NUT, Hex No. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 33868

SWITCH, Start/Stop - SPDT
(Superseded to 33868GS)

$25.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 27767

LIGHT, Overload Indicator

$

$

Not available

11

Briggs & Stratton 25367

TERMINAL, Battery Charge - Red
(Superseded to 25367GS)

$21.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 30798

WASHER - Fiber

$

$

Currently unavailable

13

Briggs & Stratton 43482

RECEPTACLE - 240 VAC, 20 Ampere
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 36933

SCREW, Pan Head Machine - No. 10-32 x 3/8"

$

$

Not available

15

Briggs & Stratton 22693

RECEPTACLE, 120 VAC, 15 Ampere
(Superseded to 7022693YP)

$52.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22669

HOLDER, Fuse

$

$

Currently unavailable

17

Briggs & Stratton 22668

FUSE - 30 Ampere

$

$

Currently unavailable

Briggs & Stratton 37806

PLUG, Connector - 120 VAC, 30 Ampere
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, Connector - 240 VAC, 20 Ampere
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
