8799-1 - Niagara 5,000 Watt Portable Generator 12 V Starting Motor Model No. 252415-0248-01 Parts Diagram

5,000 Watt Portable Generator

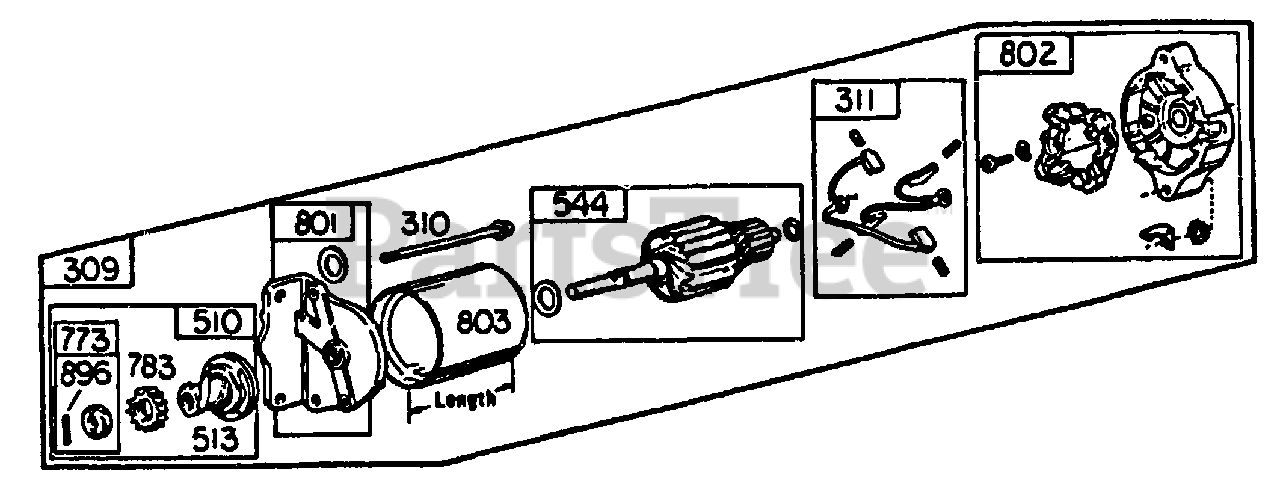

12 V Starting Motor Model No. 252415-0248-01 Parts Diagram

  • Title

309

Briggs & Stratton 393851

Motor and Drive Assembly
(Superseded to 396505)

Note: Contact Generac for Quantity Required.

$319.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 93889

Thru Bolt Assembly
(Superseded to 690318)

Note: Contact Generac for Quantity Required.

$6.49

$

In Stock, only 2 left!

0

311

Briggs & Stratton 393612

Brush Assembly

Note: Contact Generac for Quantity Required.

$45.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 391461

Drive Assembly
(Superseded to 696535)

Note: Includes items 513, 783, 773, & 896 - Contact Generac for Quantity Required.

$36.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 391135

Clutch Assembly
(Superseded to 692024)

Note: Contact Generac for Quantity Required.

$21.99

$

In Stock, only 2 left!

0

783

Briggs & Stratton 280104

Gear
(Superseded to 695708)

Note: Contact Generac for Quantity Required.

$6.99

$

In Stock, only 2 left!

0

773

Briggs & Stratton 391462

Retainer and Pin

Note: Contact Generac for Quantity Required.

$10.99

$

Usually ships in 2-12 days

0

896

Briggs & Stratton 93754

Roll Pin
(Superseded to 94192)

Note: Contact Generac for Quantity Required.

$4.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 393607

Armature Assembly
(Superseded to 396505)

Note: Contact Generac for Quantity Required.

$319.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 393228

Drive End Cap Assembly
(Superseded to 394398)

Note: Contact Generac for Quantity Required.

$31.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 393833

Comm. End Cap Assembly

Note: Contact Generac for Quantity Required.

$

$

Not available

803

Briggs & Stratton 393433

Housing Assembly
(Superseded to 394254)

Note: Contact Generac for Quantity Required.

$61.99

$

Usually ships in 2-12 days

0
