8797-0 - Niagara 4,000 Watt Portable Generator Idle Control Components No. 65152 Parts Diagram

4,000 Watt Portable Generator

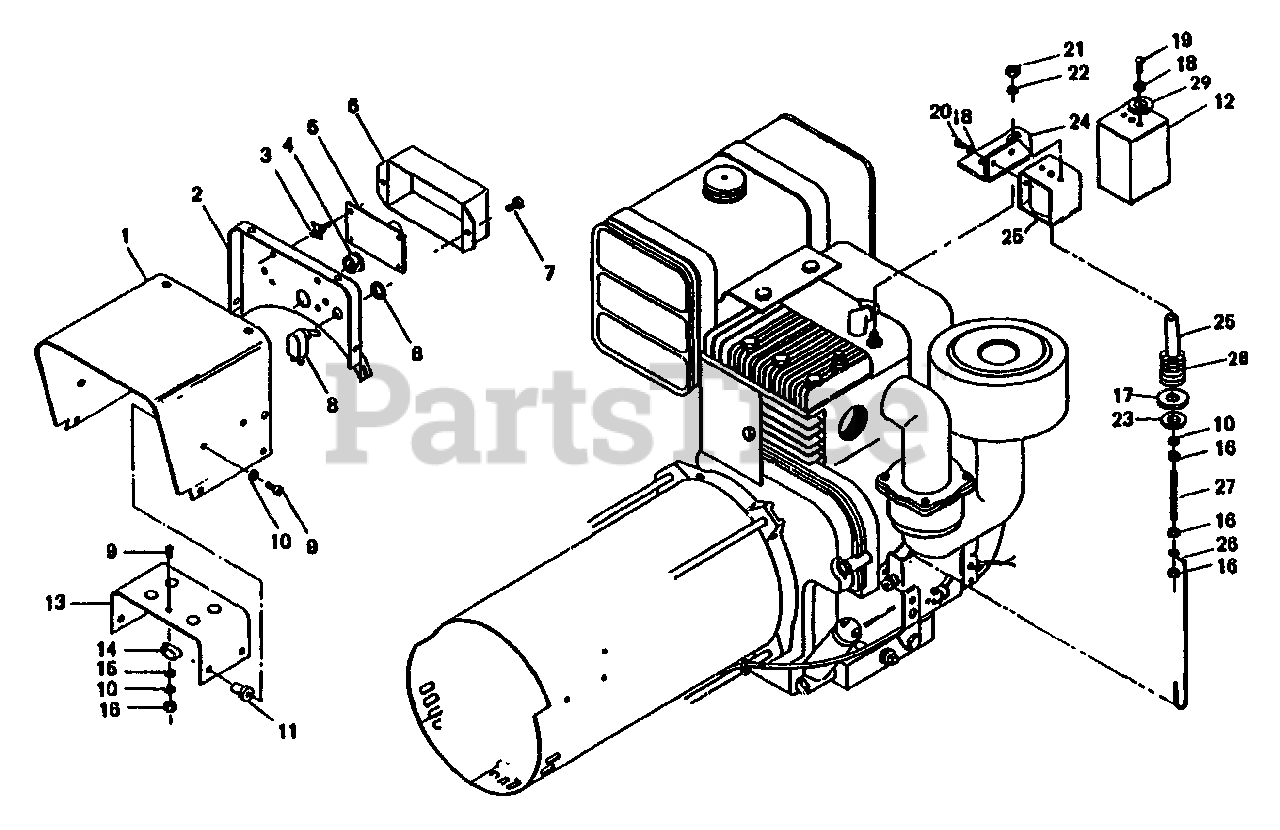

Idle Control Components No. 65152 Parts Diagram

  • Title

1

Briggs & Stratton 45170

SHROUD, Panel

$

$

Currently unavailable

2

Briggs & Stratton 49005

BACK, Panel Shroud
(Superseded to 5049005)

$58.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 40213

FASTENER, Circuit Board

$6550.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 23484E

BUSHING

$

$

Currently unavailable

5

Briggs & Stratton 49006

BOARD, Printed Circuit

$

$

Currently unavailable

6

Briggs & Stratton 49007

COVER, Circuit Board

$

$

Currently unavailable

7

Briggs & Stratton 24489

SCREW (Taptite) - No. 10-32 x 3/8"

$

$

Currently unavailable

8

Briggs & Stratton 34649

SWITCH, Toggle

$

$

Currently unavailable

9

Briggs & Stratton 36936

SCREW, Pan Head Machine - No. 10-32 x 7/8"

$

$

Currently unavailable

10

Briggs & Stratton 22152

WASHER, Lock - No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 26870

NUT, Well - No. 10-32

$

$

Currently unavailable

12

Briggs & Stratton 49048

COVER, Idle Control Solenoid

$

$

Currently unavailable

13

Briggs & Stratton 65153

ASSEMBLY, Heat Sink

$

$

Currently unavailable

14

Briggs & Stratton 30641

CLAMP

$

$

Currently unavailable

15

Briggs & Stratton 23897

WASHER, Flat - No. 10
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22158

NUT, Hex - No. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

17

Briggs & Stratton 49053

WASHER (Nylon) - No. 10

$

$

Currently unavailable

18

Briggs & Stratton 22264

WASHER, Lock - No. 8

$

$

Not available

19

Briggs & Stratton 36916

SCREW, Pan Head Machine - No. 8-32 x 1/4"

$

$

Not available

20

Briggs & Stratton 36917

SCREW, Pan Head Machine - No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 23897

WASHER, Flat - No. 10
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 49010

BRACKET, Solenoid Mounting

$

$

Currently unavailable

25

Briggs & Stratton 34632

SOLENOID, Idle Control

$

$

Currently unavailable

26

Briggs & Stratton 42433

LINK - Idle Control to Governor

$80.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 43463

STUD - No. 10-32 x 2" Long

$

$

Currently unavailable

28

Briggs & Stratton 34646

SPRING, Plunger

$

$

Currently unavailable

29

Briggs & Stratton 38150

WASHER, Flat - No. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0
