8795-1 - Niagara 4,000 Watt Portable Generator Control Panel No. 64872 Parts Diagram

4,000 Watt Portable Generator

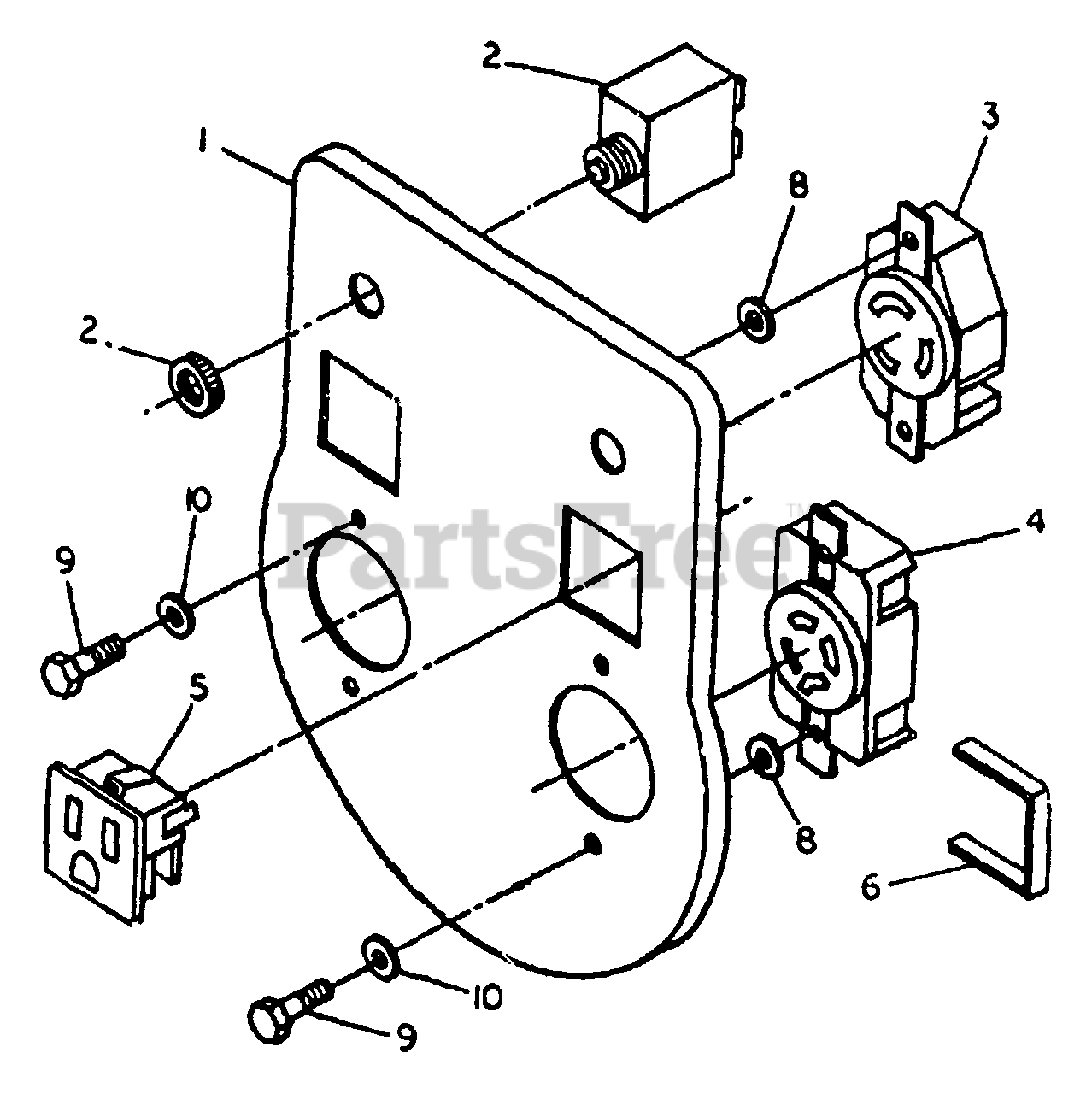

Control Panel No. 64872 Parts Diagram

  • Title

1

Briggs & Stratton 65120B

PANEL, Front (Silkscreened)

$

$

Currently unavailable

2

Briggs & Stratton 56286

BREAKER, Circuit- 15 Ampere

$

$

Not available

3

Briggs & Stratton 37807

RECEPTACLE- 120 VAC, 30 Ampere

$

$

Currently unavailable

4

Briggs & Stratton 43482

RECEPTACLE- 240 VAC, 20 Ampere
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22693

RECEPTACLE- 120 VAC, Parallel Blade
(Superseded to 7022693YP)

$52.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 27272

RETAINER, Parallel Blade Receptacle

$

$

Currently unavailable

8

Briggs & Stratton 45805

WASHER, (Nylon)

$

$

Currently unavailable

9

Briggs & Stratton 36901

SCREW, Pan Head Machine- No. 6-32 x 3/8"

$

$

Currently unavailable

10

Briggs & Stratton 22155

WASHER, Lock- No. 6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806

PLUG, CONNECTOR- 120 VAC, 30 ampere
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, CONNECTOR- 240 VAC, 20 ampere
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
