87521 RES (961430022-00) - Husqvarna 21" Walk-Behind Mower (2007-02) 87521RES Parts Diagram

21" Walk-Behind Mower

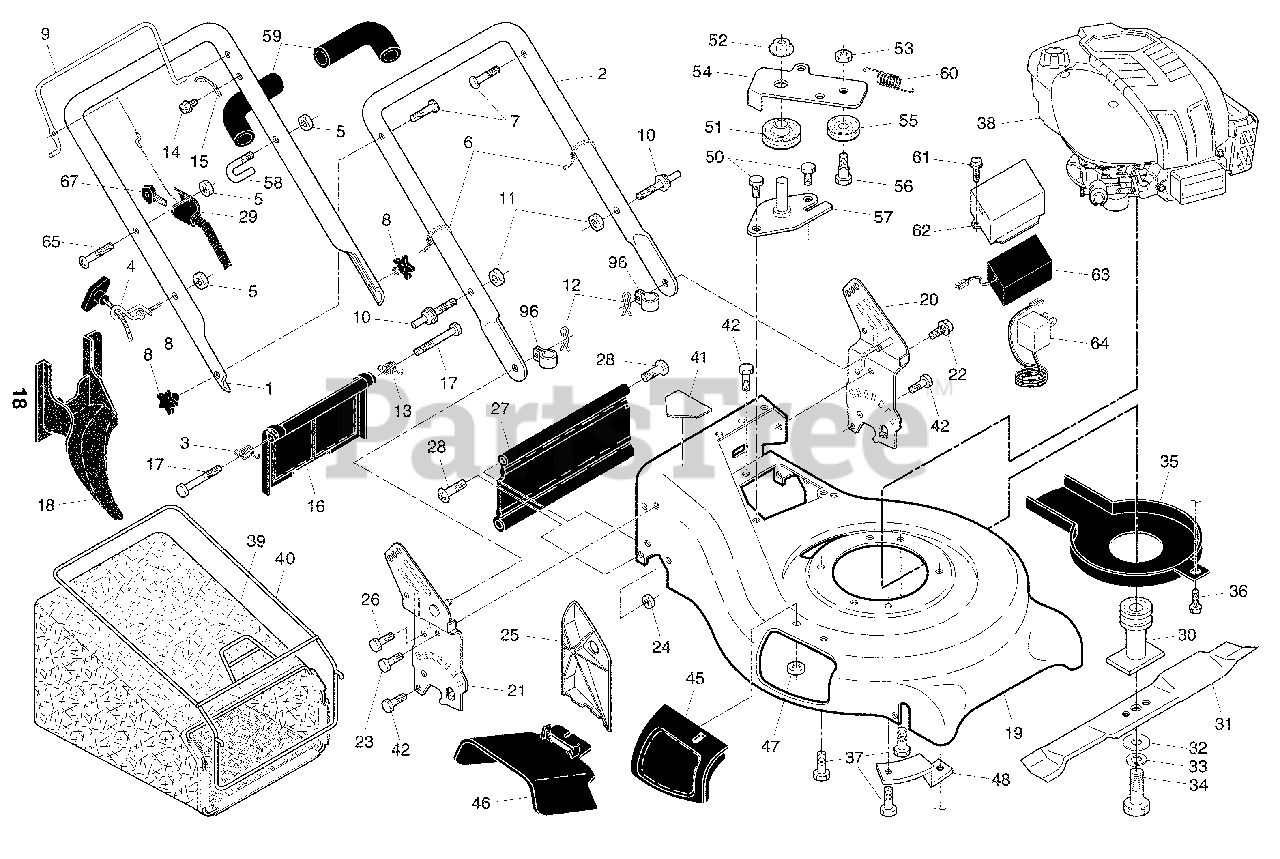

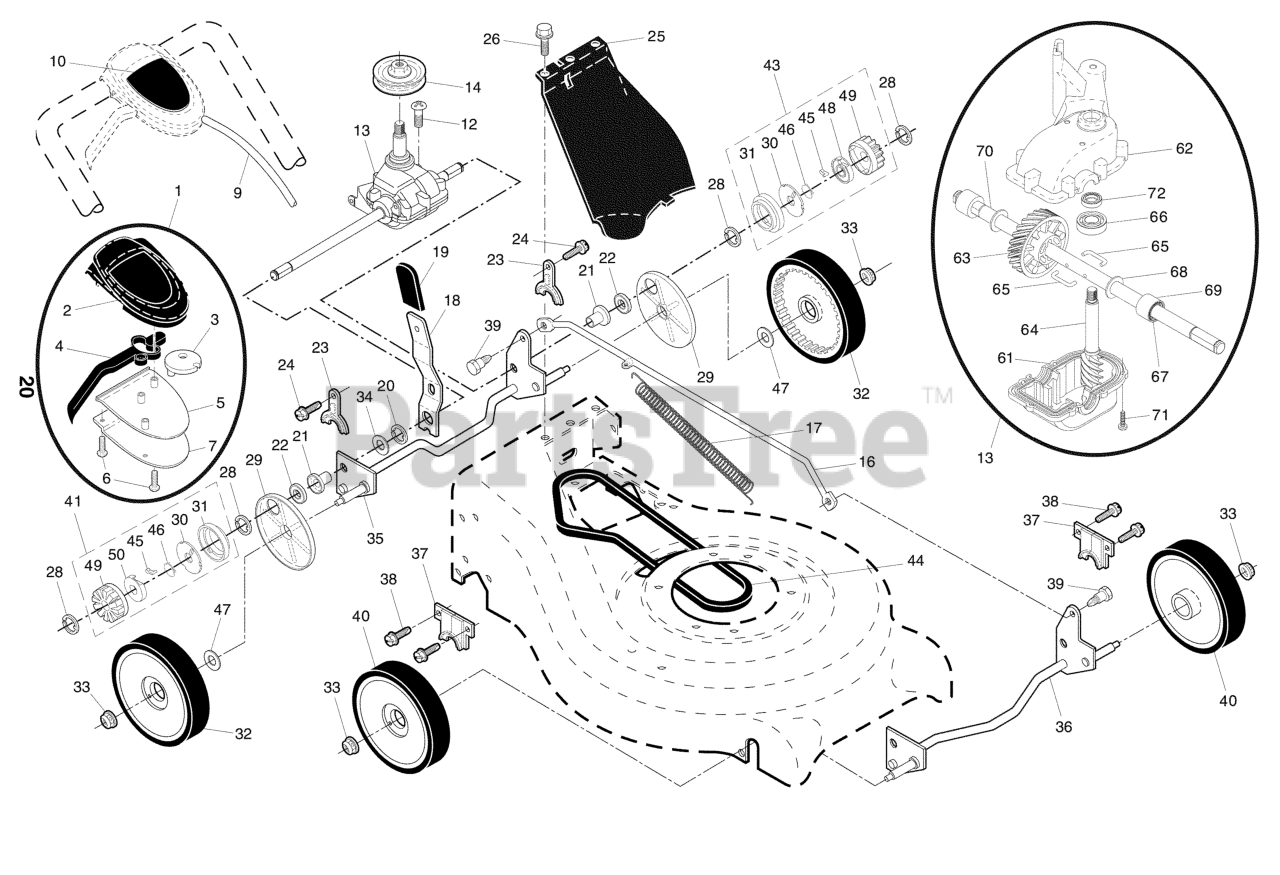

87521RES Parts Diagram

  • Title

1

Husqvarna 532199982

Handle, Upper
(Superseded to 583444201)

Note: (Includes Foam Grip)

$

$

Not available

2

Husqvarna 532196005

Handle, Lower
(Superseded to 532197202)

$

$

Not available

3

Husqvarna 532405416

Spring, Rear Door, RH

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532194788

Guide, Rope, Side
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

5

Husqvarna 532132004

Nut, Hex Lockwasher Insert 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532066426

Wire, Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532191574

Bolt, Handle 5/16-18 x 1.75

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 532185588

Knob, Handle

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532197019

Bail, Flat, Auto-Walk, Orange

$

$

Not available

10

Husqvarna 532188821

Bolt, Carriage

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 532751153

Nut, Hex, Centerlock 5/16-18 UNC

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 532051793

Cotter, Hairpin

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532405415

Spring, Rear Door, LH

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532750634

Screw

$6.49

$

In Stock, Qty 5

0

15

Husqvarna 532125162

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532408888

Rear Door Assembly
(Superseded to 532401815)

$18.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532184193

Bolt, Rear Door

$

$

Not available

18

Husqvarna 532198170

Plug, Mulcher

$37.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532410453

Kit, Housing

$

$

Not available

20

Husqvarna 532194029

Handle Bracket Assembly, LH
(Superseded to 532193917)

$

$

Not available

21

Husqvarna 532194031

Handle Bracket Assembly, RH

$37.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532150078

Screw, Hex Washer Head
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532163183

Bolt, Hex Head 5/16-18 x 5/8

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873800500

Nut, Hex, with Lock Washer Insert 5/16-18

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161333

Baffle, Side

$11.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532163409

Screw 12 x 5/8

$7.49

$

In Stock, Qty 6

0

27

Husqvarna 532188986

Skirt, Rear
(Superseded to 532408442)

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532088652

Screw, Hinge 1/4-20 x 1.25

$7.49

$

In Stock, only 2 left!

0

29

Husqvarna 532194953

Key Start Switch

Note: (Includes Cable and Key)

$103.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532189179

Blade Adapter / Pulley
(Superseded to 532421176)

$28.99

$

In Stock, only 1 left!

0

31

Husqvarna 532406712

Blade, 21"
(Superseded to 594893001)

$20.99

$

In Stock, only 2 left!

0

32

Husqvarna 532851074

Washer, Hardened

$4.99

$

In Stock, only 4 left!

0

33

Husqvarna 532850263

Lockwasher, Helical Spring 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532851084

Screw, Hex Head 3/8-24 x 1.38
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532188786

Debris Shield

$7.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532192325

Screw

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532150406

Bolt, Engine

$7.49

$

Usually ships in 3-10 days

0

38

Engine, Briggs & Stratton, Model Number 12S505

Note: (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

39

Husqvarna 532409726

Grassbag
(Superseded to 532410668)

$

$

Not available

40

Husqvarna 532407453

Frame, Grassbag
(Superseded to 532411951)

$

$

Not available

41

Husqvarna 532404763

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532054583

Screw

$

$

Not available

45

Husqvarna 532190510

Mulcher Door Assembly
(Superseded to 532183058)

$113.99

$

In Stock, only 2 left!

0

46

Husqvarna 532190512

Deflector, Discharge
(Superseded to 532169699)

$

$

Not available

47

Husqvarna 532088349

Nut, Hex

$7.49

$

In Stock, only 1 left!

0

48

Husqvarna 532190939

Mounting Bracket, Debris Shield
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532057808

Screw

$

$

Not available

51

Husqvarna 532193791

Pulley Assembly, V-Groove

$

$

Not available

52

Husqvarna 532145212

Flange Nut
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 532155552

Locknut
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

54

Husqvarna 532196812

Idler Arm
(Superseded to 532193792)

$

$

Not available

55

Husqvarna 532166043

Idler Pulley

$31.99

$

In Stock, only 2 left!

0

56

Husqvarna 532160829

Shoulder Bolt

$7.49

$

In Stock, only 2 left!

0

57

Husqvarna 532193315

Bracket Assembly

$6.99

$

In Stock, Qty 5

0

58

Husqvarna 532182003

Clip

$6.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532182748

Grip, Handle, Foam, Smooth

$

$

Not available

60

Husqvarna 532182226

Spring, Return
(Superseded to 532406558)

$8.99

$

In Stock, Qty 7

0

61

Husqvarna 817411318

Screw

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532193476

Box, Battery

$6.49

$

Usually ships in 3-10 days

0

63

Husqvarna 532189589

Battery
(Superseded to 584353901)

$103.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532190097

Charger, Battery
(Superseded to 532428626)

$

$

Not available

65

Husqvarna 532186159

Screw

$4.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532180331

Key

$8.99

$

In Stock, Qty 10

0

96

Husqvarna 532197991

Clip, Cable

$7.49

$

In Stock, Qty 6

0

Husqvarna 532404764

Warning Decal
(Superseded to 581579101)

Note: (not shown)

$7.49

$

Usually ships in 3-10 days

0

Husqvarna 532412972

Owner’s Manual, English / French

$

$

Currently unavailable
