875 (917374456) - Husqvarna Walk-Behind Mower (2008-02) ENGINE 2 Parts Diagram

Walk-Behind Mower

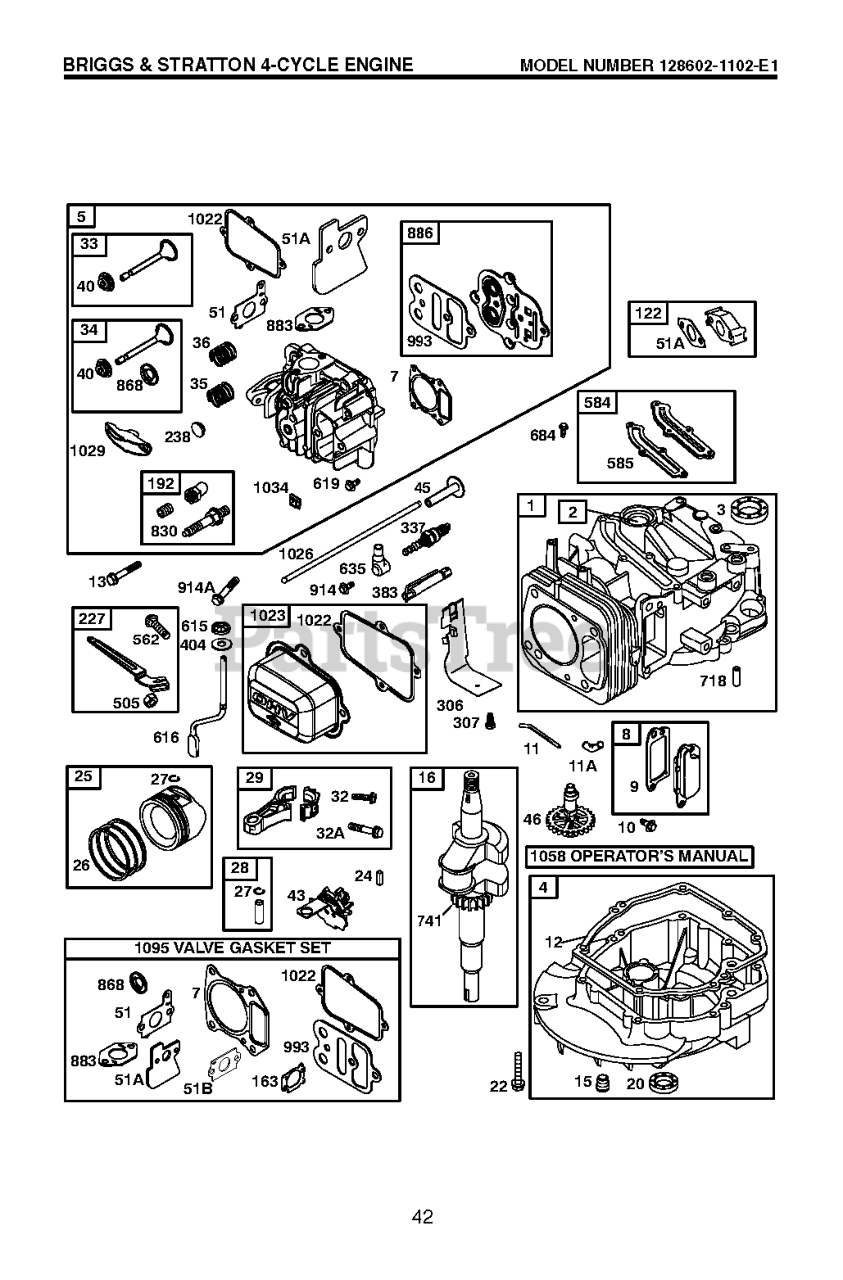

ENGINE 2 Parts Diagram

  • Title

227

Husqvarna 532691467

NEEDS DESCRIPTION

$

$

Currently unavailable

842

Husqvarna 691031

Seal-O Ring (Dipstick Tube)

Note: DIPSTICK TUBE. INCL IN ENGINE GASKET SET

$

$

Not available

190

Husqvarna 690940

Screw (Dipstick Tube)

Note: FUEL TANK

$

$

Currently unavailable

868

Husqvarna 532795440

NEEDS DESCRIPTION

Note: "INCL IN ENGINE GASKET SET, INCL IN VALVE GASKET SET"

$

$

Currently unavailable

1210

Husqvarna 498144

Assembly-Pulley/Spring

Note: PULLEY

$

$

Not available

37

Husqvarna 532793756

NEEDS DESCRIPTION

$

$

Currently unavailable

163

Husqvarna 691894

Gasket-Air Cleaner

Note: "INCL IN CARB OVERHAUL KIT, INCL ENGINE GASKET, INCL VALVE GASKET, INCL CARB GASKET SET"

$

$

Currently unavailable

306

Husqvarna 532691232

NEEDS DESCRIPTION

$

$

Currently unavailable

137

Husqvarna 693981

Gasket-Float Bowl

Note: "INCL IN CARB OVERHAUL KIT, INCL IN CARB GASKET SET"

$

$

Currently unavailable

635

Husqvarna 66538S

Boot-Spark Plug

Note: 66538s

$

$

Currently unavailable

65

Husqvarna 690837

Screw (Rewind Starter)

Note: REWIND STARTER

$

$

Currently unavailable

1095

Husqvarna 532792386

NEEDS DESCRIPTION

$

$

Currently unavailable

51

Husqvarna 692748

Short Block

Note: "INCL IN CARB OVERHAUL KIT, INCL ENGINE GASKET, INCL VALVE GASKET, INCL CARB GASKET SET"

$

$

Currently unavailable

78

Husqvarna 691108

Screw (Blower Housing)

Note: FLYWHEEL GUARD

$3.49

$

In Stock, Qty 20+

0

592

Husqvarna 690800

Nut (Rewind Starter)

Note: REWIND STARTER

$

$

Currently unavailable

276

Husqvarna 271716

Washer-Sealing

Note: "INCL IN CARB OVERHAUL KIT, INCL IN CARB GASKET SET"

$

$

Currently unavailable

597

Husqvarna 691696

Screw (Pawl Friction Plate)

Note: PAWL FRICTON PLATE

$

$

Currently unavailable

684

NEEDS DESCRIPTION

Note: BREATHER PASSAGE COVER

$

$

Not available

613A

Husqvarna 6911400

NEEDS DESCRIPTION

Note: MUFFLER

$

$

Currently unavailable

608

Husqvarna 497680

Starter-Rewind

$

$

Not available

830

Husqvarna 532694544

NEEDS DESCRIPTION

Note: ROCKER ARM

$

$

Currently unavailable

975

Husqvarna 493640

Bowl-Float

$

$

Not available

1034

Husqvarna 532691343

NEEDS DESCRIPTION

$

$

Currently unavailable

1059

Husqvarna 692311

Kit-Screw/Washer

$

$

Currently unavailable

7

Husqvarna 532697230

NEEDS DESCRIPTION

Note: INCL IN ENGINE GASKET SET

$

$

Currently unavailable

121

Husqvarna 532792383

NEEDS DESCRIPTION

$

$

Currently unavailable

259

Husqvarna 532691189

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 699833

Gasket-Breather

Note: INCL IN ENGINE GASKET SET

$

$

Currently unavailable

209

Husqvarna 691851

Spring-Governor

$

$

Currently unavailable

11A

Husqvarna 532692937

NEEDS DESCRIPTION

$

$

Currently unavailable

914A

Husqvarna 532691127

NEEDS DESCRIPTION

Note: ROCKER COVER

$

$

Currently unavailable

11

Husqvarna 691781

Tube-Breather

$

$

Currently unavailable

187

Husqvarna 601400054

TUBING .25X.47.3.00 G

Note: CUT TO REQUIRED LENGTH

$

$

Not available

34

Husqvarna 499641

Valve-Intake

$

$

Not available

456

Husqvarna 692299

Plate-Pawl Friction

$

$

Currently unavailable

404

Husqvarna 532690272

NEEDS DESCRIPTION

Note: GOVERNOR CRANK

$

$

Currently unavailable

957

Husqvarna 532793606

NEEDS DESCRIPTION

$

$

Currently unavailable

36

Husqvarna 532691304

NEEDS DESCRIPTION

Note: EXHAUST

$

$

Currently unavailable

12

Husqvarna 532692232

NEEDS DESCRIPTION

Note: INCL IN ENGINE GASKET SET

$

$

Currently unavailable

585

Husqvarna 532691879

NEEDS DESCRIPTION

Note: INCL IN ENGINE GASKET SET

$

$

Currently unavailable

22

Husqvarna 532691092

NEEDS DESCRIPTION

Note: ENGINE SUMP

$

$

Currently unavailable

601

Husqvarna 532791850

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 532792381

NEEDS DESCRIPTION

$

$

Currently unavailable

192

Husqvarna 532694543

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 691680

Plug-Oil Drain

$

$

Currently unavailable

45

Husqvarna 532690977

NEEDS DESCRIPTION

$

$

Currently unavailable

966

Husqvarna 690243

Base-Air Cleaner Primer

$

$

Currently unavailable

455

Husqvarna 532791960

NEEDS DESCRIPTION

$

$

Currently unavailable

300

Husqvarna 532697590

NEEDS DESCRIPTION

$

$

Currently unavailable

459

Husqvarna 281505S

Pawl-Ratchet

Note: 281505S

$

$

Currently unavailable

304

Husqvarna 532695976

NEEDS DESCRIPTION

$

$

Currently unavailable

95

Husqvarna 532691636

NEEDS DESCRIPTION

Note: THROTTLE VALVE

$

$

Currently unavailable

238

Husqvarna 532691300

NEEDS DESCRIPTION

$

$

Currently unavailable

32A

Husqvarna 532695759

NEEDS DESCRIPTION

Note: CONNECTING ROD

$

$

Currently unavailable

562

Husqvarna 532092613

NEEDS DESCRIPTION

Note: GOVENOR CONTROL LEVER

$

$

Currently unavailable

32

Husqvarna 532691664

NEEDS DESCRIPTION

Note: CONNECTING ROD

$

$

Currently unavailable

1330

Husqvarna 532272147

NEEDS DESCRIPTION

$

$

Currently unavailable

505

Husqvarna 532691251

NEEDS DESCRIPTION

Note: GOVERNOR CONTROL LEVER

$

$

Currently unavailable

122

Husqvarna 532792382

NEEDS DESCRIPTION

$

$

Currently unavailable

25

Husqvarna 532795429

NEEDS DESCRIPTION

Note: STANDARD SIZE

$

$

Currently unavailable

332

Husqvarna 690662

Nut (Flywheel)

Note: FLYWHEEL

$

$

Currently unavailable

923

Husqvarna 532695891

NEEDS DESCRIPTION

$

$

Currently unavailable

117

Husqvarna 532498981

NEEDS DESCRIPTION

Note: STANDARD

$

$

Currently unavailable

363

Husqvarna 19069

Puller-Flywheel

$

$

Not available

35

Husqvarna 532691304

NEEDS DESCRIPTION

Note: INTAKE

$

$

Currently unavailable

443

Husqvarna 532690255

NEEDS DESCRIPTION

Note: AIR CLEANER PRIMER BASE

$

$

Currently unavailable

977

Husqvarna 532792385

NEEDS DESCRIPTION

$

$

Currently unavailable

Husqvarna 532398067

NEEDS DESCRIPTION

Note: AVALIABLE ACCESSORY

$

$

Currently unavailable

133

Husqvarna 398187

Float-Carburetor

$

$

Not available

1023

Husqvarna 532499624

NEEDS DESCRIPTION

$

$

Currently unavailable

741

Husqvarna 532794388

NEEDS DESCRIPTION

$

$

Currently unavailable

922

Husqvarna 532692135

NEEDS DESCRIPTION

$

$

Currently unavailable

29

Husqvarna 499424

Rod-Connecting

$

$

Not available

976

Husqvarna 694395

Primer-Carburetor

$

$

Currently unavailable

202

Husqvarna 532691303

NEEDS DESCRIPTION

$

$

Currently unavailable

51A

Husqvarna 532692555

NEEDS DESCRIPTION

Note: "INCL IN CARB OVERHAUL KIT, INCL ENGINE GASKET, INCL VALVE GASKET, INCL CARB GASKET SET"

$

$

Currently unavailable

2

Husqvarna 399269

Kit-Bushing/Seal

$

$

Not available

188

Husqvarna 532691147

NEEDS DESCRIPTION

Note: CONTROL BRACKET

$

$

Currently unavailable

365

Husqvarna 532691129

NEEDS DESCRIPTION

Note: CARBURETOR

$

$

Currently unavailable

104

Husqvarna 532691242

NEEDS DESCRIPTION

Note: INCL IN CARB OVERHAUL KIT

$

$

Currently unavailable

851

Husqvarna 493880S

Terminal-Spark Plug

Note: 493880S

$

$

Currently unavailable

718

Husqvarna 532690959

NEEDS DESCRIPTION

$

$

Currently unavailable

969

Husqvarna 691138

Screw

Note: BLOWER HOUSING COVER

$

$

Currently unavailable

445

Husqvarna 697029

Filter, Air Cleaner Cartridge

$

$

Currently unavailable

130

Husqvarna 532696564

NEEDS DESCRIPTION

$

$

Currently unavailable

972

Husqvarna 699374

Tank-Fuel

$

$

Currently unavailable

125

Husqvarna 790120

Carburetor

$

$

Currently unavailable

383

Husqvarna 19374S

Wrench-Spark Plug

Note: 19374s

$

$

Currently unavailable

425

Husqvarna 532690244

NEEDS DESCRIPTION

Note: AIR CLEANER COVER

$

$

Currently unavailable

525

Husqvarna 495265

Tube-Dipstick

$

$

Not available

134

Husqvarna 398188

Valve-Needle/Seat

Note: INCL IN CARB OVERHAUL KIT

$

$

Not available

118

Husqvarna 498978

Jet-Main (Standard)

Note: HIGH ALITITUDE

$

$

Currently unavailable

1

Husqvarna 532692670

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 495786

Breather Assembly

$

$

Not available

60

Husqvarna 281434S

Grip-Starter Rope

Note: 281434S

$

$

Currently unavailable

23

Husqvarna 532697610

NEEDS DESCRIPTION

$

$

Currently unavailable

58

Husqvarna 697316

Rope-Starter (Cut to Fit)

Note: CUT TO REQUIRED LENGTH

$

$

Currently unavailable

46

Husqvarna 532694039

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 532691137

NEEDS DESCRIPTION

Note: CYLINDER HEAD

$

$

Currently unavailable

356

Husqvarna 532692390

NEEDS DESCRIPTION

$

$

Currently unavailable

993

Husqvarna 532694088

NEEDS DESCRIPTION

Note: "INCL IN ENGINE GASKET SET, INCL IN VALVE GASKET SET"

$

$

Currently unavailable

10

Husqvarna 532691125

NEEDS DESCRIPTION

Note: BREATHER ASSEMBLY

$

$

Currently unavailable

883

Husqvarna 532691893

NEEDS DESCRIPTION

Note: "INCL IN ENGINE GASKET SET, INCL IN VALVE GASKET SET"

$

$

Currently unavailable

689

Husqvarna 691855

Spring-Friction

$

$

Currently unavailable

27

Husqvarna 532691866

NEEDS DESCRIPTION

$

$

Currently unavailable

334

Husqvarna 532691061

NEEDS DESCRIPTION

Note: ARMATURE MAGNETO

$

$

Currently unavailable

615

Husqvarna 690340

Retainer-Governor Shaft

$

$

Currently unavailable

24

Husqvarna 222698S

Key-Flywheel

Note: 222698S

$

$

Currently unavailable

43

Husqvarna 691997

Slinger-Governor/Oil

$

$

Currently unavailable

670

Husqvarna 692294

Spacer-Fuel Tank

$

$

Currently unavailable

4

Husqvarna 493279

Sump-Engine

$

$

Not available

616

Husqvarna 532698801

NEEDS DESCRIPTION

$

$

Currently unavailable

3

Husqvarna 299819S

Seal-Oil (Magneto Side)

Note: "299819S, MAGENTO SIDE INCL IN ENGINE GASKET SET "

$

$

Currently unavailable

25

Husqvarna 532795430

NEEDS DESCRIPTION

Note: ".020"" OVERSIZE"

$

$

Currently unavailable

886

Husqvarna 532696268

NEEDS DESCRIPTION

$

$

Currently unavailable

921

Husqvarna 691465

Cover-Blower Housing

$

$

Currently unavailable

333

Husqvarna 802574

Armature-Magneto

$

$

Not available

222

Husqvarna 532697614

NEEDS DESCRIPTION

$

$

Currently unavailable

745

Husqvarna 532691648

NEEDS DESCRIPTION

Note: BRAKE

$

$

Currently unavailable

26

Husqvarna 532795432

NEEDS DESCRIPTION

Note: .020*OVERSIZE

$

$

Currently unavailable

97

Husqvarna 532790121

NEEDS DESCRIPTION

$

$

Currently unavailable

1026

Husqvarna 532795444

NEEDS DESCRIPTION

$

$

Currently unavailable

1022

Husqvarna 691890

Gasket-Rocker Cover

Note: "INCL IN ENGINE GASKET SET, INCL IN VALVE GASKET SET"

$

$

Currently unavailable

523

Husqvarna 531300986

DIPSTICK

$

$

Not available

621

Husqvarna 692310

Switch-Stop

$

$

Not available

16

Husqvarna 691456

Crankshaft

$

$

Currently unavailable

40

Husqvarna 532692194

NEEDS DESCRIPTION

$

$

Currently unavailable

524

Husqvarna 692296

Seal-Dipstick Tube

Note: INCL IN ENGINE GASKET SET

$

$

Currently unavailable

584

Husqvarna 532697734

NEEDS DESCRIPTION

$

$

Currently unavailable

127

Husqvarna 532694468

NEEDS DESCRIPTION

Note: INCL IN CARB OVERHAUL KIT

$

$

Currently unavailable

33

Husqvarna 499642

Valve-Exhaust

$

$

Not available

55

Husqvarna 691421

Housing-Rewind Starter

$

$

Currently unavailable

358

Husqvarna 532795442

NEEDS DESCRIPTION

$

$

Currently unavailable

26

Husqvarna 532795431

NEEDS DESCRIPTION

Note: STANDARD

$

$

Currently unavailable

968

Husqvarna 691342

Cover-Air Cleaner

$

$

Not available

20

Husqvarna 399781S

Seal-Oil (PTO Side)

Note: "399781S, PTO SIDE INCL IN ENGINE GASKET SET"

$

$

Currently unavailable

28

Husqvarna 499423

Pin-Piston

$

$

Not available

847

Husqvarna 692047

Assembly-Dipstick/Tube

$

$

Currently unavailable

337

Husqvarna 692051

Plug-Spark

$

$

Currently unavailable

51B

Husqvarna 532697735

NEEDS DESCRIPTION

Note: "INCL IN CARB OVERHAUL KIT, INCL ENGINE GASKET, INCL VALVE GASKET, INCL CARB GASKET SET"

$

$

Currently unavailable

1029

Husqvarna 69123010

NEEDS DESCRIPTION

$

$

Currently unavailable

633

Husqvarna 532691321

NEEDS DESCRIPTION

Note: "INCL IN CARB OVERHAUL KIT, INCL IN CARB GASKET SET"

$

$

Currently unavailable
