8710-0 - Generac 3,750 Watt Portable Generator Muffler, Handle And Mounting Base Parts Diagram

3,750 Watt Portable Generator

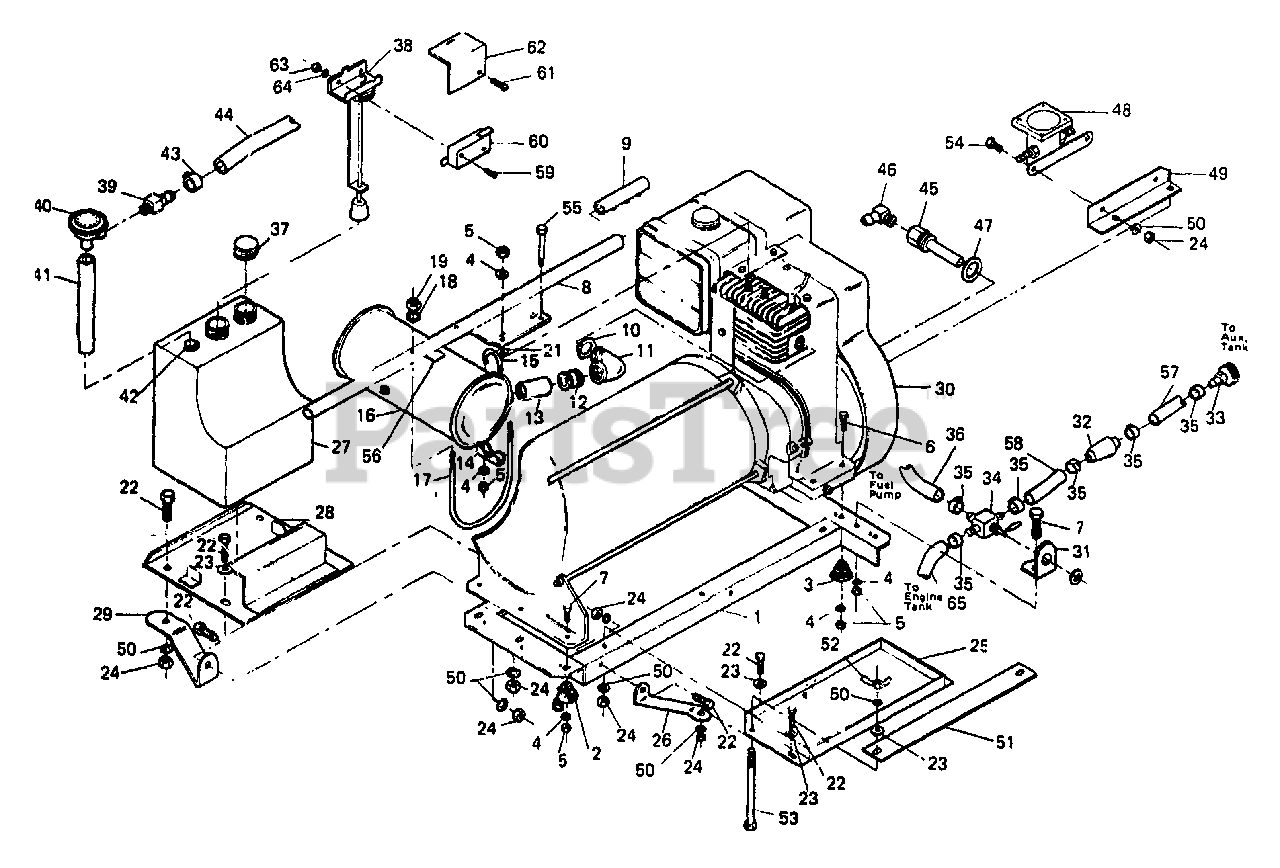

Muffler, Handle And Mounting Base Parts Diagram

  • Title

1

Briggs & Stratton 44900

BASE, Alternator Mounting

$

$

Currently unavailable

2

Briggs & Stratton 25047

SPRING (With Loop)
(Superseded to 7025047YP)

$47.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 23594

SPRING (Without Loop)

$

$

Currently unavailable

4

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22531

CAPSCREW, Hex Head - 5/16"-18 x 1-3/4"
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22125

CAPSCREW, Hex Head - 5/16"-18 x 1"

$

$

Currently unavailable

8

Briggs & Stratton 44361

HANDLE, Carrying

$

$

Not available

9

Briggs & Stratton 25094

GRIP, Carrying Handle
(Superseded to 5025094)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 26771

NUT, Pipe Lock - 3/4" NPT

$

$

Currently unavailable

11

Briggs & Stratton 26307

ELBOW, 90 degree - 3/4" NPT

$

$

Currently unavailable

12

Briggs & Stratton 35589

NIPPLE, Pipe - 3/4" NPT x 3-1/2" long

$

$

Currently unavailable

13

Briggs & Stratton 26905

COUPLING, Pipe - 3/4" NPT

$

$

Currently unavailable

14

Briggs & Stratton 28237

SADDLE, Exhaust Muffler Clamp
(Superseded to 7028237YP)

$109.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 28238

U-BOLT, Exhaust Muffler

$

$

Currently unavailable

16

Briggs & Stratton 43951

MUFFLER, Spark Arrestor

$

$

Currently unavailable

17

Briggs & Stratton 27110

U-BOLT, Exhaust Muffler - 4-5/8" Diameter
(Superseded to 7027110YP)

$11.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22237

WASHER, Lock - 3/8"

$

$

Not available

19

Briggs & Stratton 22241

NUT, Hex - 3/8"-16

$

$

Not available

Briggs & Stratton 45121

BRACKET, Exhaust Muffler Stabilizer

$

$

Currently unavailable

21

Briggs & Stratton 22145

WASHER, Flat - 5/16"

$

$

Not available

22

Briggs & Stratton 22287

CAPSCREW, Hex Head - 1/4"-20 x 3/4"
(Superseded to 22287GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

23

22473

WASHER, Flat - 1/4"

Note: Contact Generac for quantity required

$

$

Not available

24

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

Note: Contact Generac for quantity required

$

$

Not available

25

Briggs & Stratton 44949

TRAY, Battery
(Superseded to 5044949)

$57.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 44952

BRACKET, Battery Tray Support

$

$

Currently unavailable

27

Briggs & Stratton 48084

TANK, Oil Makeup

$

$

Currently unavailable

28

Briggs & Stratton 49344

TRAY, Oil Makeup Tank

$

$

Currently unavailable

29

Briggs & Stratton 48827

BRACKET, Oil Makeup Tank Tray Support

$

$

Currently unavailable

30

Briggs & Stratton 50439

ENGINE - 7 Horsepower Manual Start

$

$

Currently unavailable

30

Briggs & Stratton 42407

ENGINE - 8 Horsepower Manual Start

$

$

Currently unavailable

30

Briggs & Stratton 51399

ENGINE - 8 Horsepower Manual Start (Industrial/Commercial)
(Superseded to 7051399YP)

$104.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 42408

ENGINE - 8 Horsepower Electric Start

$

$

Currently unavailable

30

Briggs & Stratton 52001

ENGINE - 8 Horsepower Electric Start (Industrial/Commercial)

$

$

Not available

31

Briggs & Stratton 47498

SUPPORT, Dual Fuel Selector Valve
(Superseded to 5047498B)

$

$

Not available

32

Briggs & Stratton 47294

FILTER, Fuel

$

$

Not available

33

Briggs & Stratton 30288

DISCONNECT, Quick (Female)

$

$

Currently unavailable

34

Briggs & Stratton 47797

VALVE, Dual Fuel Selector

$

$

Currently unavailable

35

Briggs & Stratton 48031C

CLAMP, Hose

$

$

Not available

36

Briggs & Stratton 47662AC

Hose, Fuel

$

$

Currently unavailable

37

Briggs & Stratton 30449

CAP, Oil Makeup Tank Filler

$

$

Not available

38

Briggs & Stratton 48714

SWITCH ASSEMBLY, Low Oil Level Shutdown

$

$

Currently unavailable

39

Briggs & Stratton 35461

FITTING, Barbed Straight

$

$

Not available

40

Briggs & Stratton 46509

PUMP, Oil Makeup

$

$

Currently unavailable

41

Briggs & Stratton 47662N

HOSE, Oil - 7-1/4" long

$

$

Currently unavailable

42

Briggs & Stratton 35472

CLAMP

$

$

Currently unavailable

43

Briggs & Stratton 48031E

CLAMP

$

$

Currently unavailable

44

Briggs & Stratton 47662P

HOSE, Oil - 12" long

$

$

Currently unavailable

45

Briggs & Stratton 48835

PRODE, Oil Makeup

$

$

Currently unavailable

46

Briggs & Stratton 35470

FITTING, Barbed 90 degree

$

$

Currently unavailable

47

Briggs & Stratton 46900

GASKET

$

$

Not available

48

Briggs & Stratton 24492

CONTACTOR, Starter

$

$

Currently unavailable

49

Briggs & Stratton 45001

BRACKET, Starter Contactor Support

$

$

Currently unavailable

50

Briggs & Stratton 22097

WASHER, Lock
(Superseded to 5022097)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 44951

BRACKET, Battery Retainer

$

$

Currently unavailable

52

Briggs & Stratton 25870

NUT, Wing 1/4"-20

$

$

Currently unavailable

53

Briggs & Stratton 45000

CAPSCREW, Hex Head - 1/4"-20 x 7"
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 22507

CAPSCREW, Hex Head - 1/4"-20 x 1/2"

$

$

Not available

55

Briggs & Stratton 24726

CAPSCREW, Hex Head (Grade 5) - 5/16"-18 x 2-1/2"

$

$

Currently unavailable

56

Briggs & Stratton 37897

SHIELD, Heat

$

$

Currently unavailable

57

Briggs & Stratton 47662C

HOSE, Fuel - 48" long

$

$

Currently unavailable

58

Briggs & Stratton 47662B

HOSE, Fuel - 3" long

$

$

Not available

59

Briggs & Stratton 27770

SCREW, Round Head Machine - No. 4-40 x 5/8"

$

$

Currently unavailable

60

Briggs & Stratton 30283

MICRO-SWITCH, Low Oil Level Shutdown

$

$

Currently unavailable

61

Briggs & Stratton 25105

SCREW (Sims) - No. 6-32 x 5/8"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 46908

COVER, Low Oil Level Shutdown Switch

$

$

Currently unavailable

63

Briggs & Stratton 27771

NUT, Hex - No. 4-48

$

$

Not available

64

Briggs & Stratton 27772

WASHER, Lock - No. 4

$

$

Not available

65

Briggs & Stratton 47662J

HOSE, Fuel - 23" long

$

$

Currently unavailable
