8709-0 - Generac 5,000 Watt Portable Generator Generator No. 50777 Parts Diagram

5,000 Watt Portable Generator

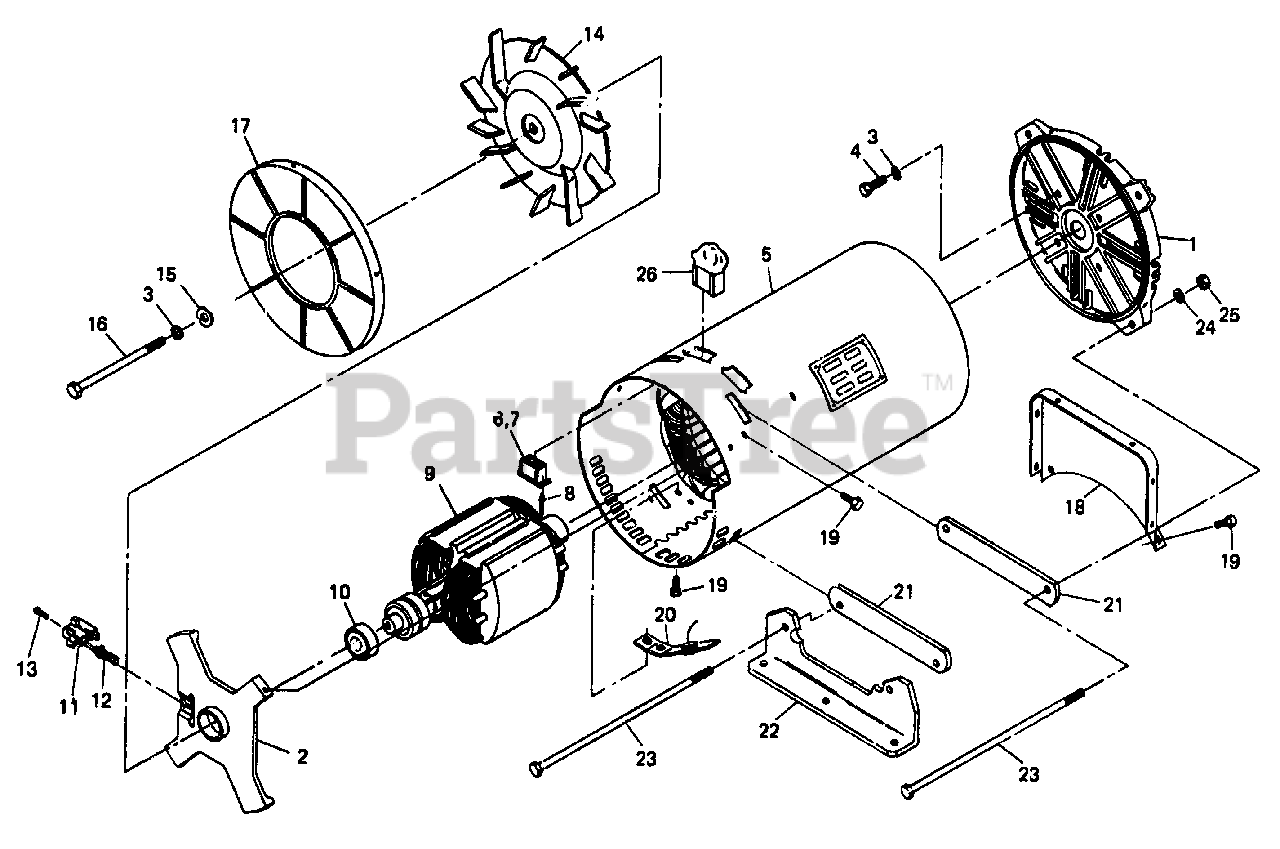

Generator No. 50777 Parts Diagram

  • Title

1

Briggs & Stratton 43872A

HOUSING, Adapter

$

$

Currently unavailable

1

Briggs & Stratton 43873

HOUSING, Adapter

$

$

Currently unavailable

2

Briggs & Stratton 44943

CARRIER, Rear Bearing

$

$

Currently unavailable

3

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 22336

CAPSCREW, Hex Head - 5/16"-24 x 3/4"

$

$

Not available

5

Briggs & Stratton 44961L

STATOR Assembly

Note: Without battery charge feature

$

$

Currently unavailable

5

Briggs & Stratton 44961E

STATOR Assembly

Note: With battery charge feature

$

$

Currently unavailable

6

Briggs & Stratton 22694

HOUSING, Receptacle - White
(Superseded to 22694GS)

$5.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 43994

HOUSING, Receptacle - Red

$

$

Not available

8

Briggs & Stratton 44959

RIVET, Pop
(Superseded to 5044959)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 44391E

ROTOR Assembly - 5000 Watt Units

$

$

Currently unavailable

10

Briggs & Stratton 24049

BEARING, Rotor

$

$

Not available

11

Briggs & Stratton 23877D

HOLDER, Brush
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 25105

SCREW (with Lock Washer) - No. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 44331

FAN, Generator Cooling (Plastic)

$

$

Not available

15

Briggs & Stratton 22131

WASHER, Flat - 5/16"
(Superseded to 22131GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 25254

BOLT, Rotor (3000, 3750, 5000 Watt Units)
(Superseded to 5025254)

$2.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 44357

COVER, Generator Cooling Fun
(Superseded to 44357GS)

$17.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 43874

BACK, Panel Shroud
(Superseded to 7043874YP)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 24489

SCREW (Taptite) - No. 10-32 x 3/8"

$

$

Currently unavailable

20

Briggs & Stratton 44722

ASSEMBLY, Diode Plate

$

$

Currently unavailable

21

Briggs & Stratton 44338

BAR, Stator Bolt

$

$

Currently unavailable

22

Briggs & Stratton 44392B

SUPPORT, Generator Rear (3000, 3750, 5000 units only)

$

$

Currently unavailable

23

Briggs & Stratton 44395B

BOLT, Stator - 11.87" long (3000, 3750, 5000 Watt units only)

$

$

Currently unavailable

24

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

26

Not used on this model

$

$

Not available
