8708-0 - Generac 3,750 Watt Portable Generator Engine Sheet Metal No. 62003 Parts Diagram

3,750 Watt Portable Generator

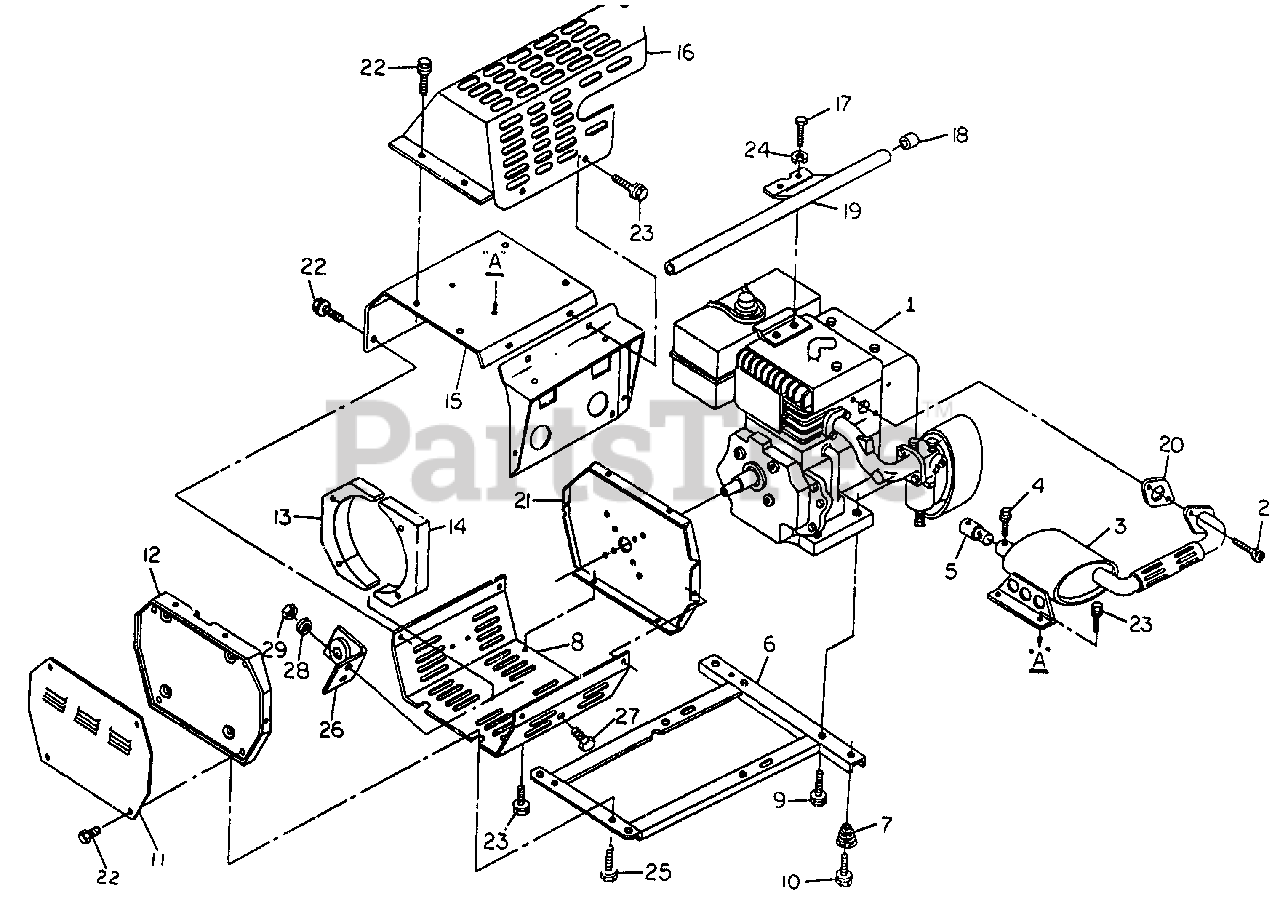

Engine Sheet Metal No. 62003 Parts Diagram

  • Title

1

Briggs & Stratton 61473

ENGINE, Tecumseh 8 Horsepower

$

$

Currently unavailable

2

Briggs & Stratton 60706

CAPSCREW, Socket Head - 5/16"-18 x 3/4"

$

$

Currently unavailable

3

Briggs & Stratton 58196

MUFFLER, Exhaust (with Spark Arrestor)

$

$

Not available

4

Briggs & Stratton 22774

SCREW, Sheet Metal - No. 8 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 59604

SCREEN, Spark Arrestor

$

$

Currently unavailable

6

Briggs & Stratton 58898

BASE, Mounting
(Superseded to 7058898YP)

$262.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

SPRING (without Loop)

$

$

Currently unavailable

8

Briggs & Stratton 58879B

WRAPPER, Lower Generator

$

$

Currently unavailable

9

Briggs & Stratton 59637

SCREW - 3/8"-16 x 3/4"

$

$

Not available

10

Briggs & Stratton 24910

SCREW - 5/16" x 1/2"

$

$

Not available

11

Briggs & Stratton 61771

PANEL, End

$

$

Currently unavailable

12

Briggs & Stratton 61762

PANEL, End

$

$

Currently unavailable

13

Briggs & Stratton 58887B

BAFFLE, Generator Air (Left)

$

$

Currently unavailable

14

Briggs & Stratton 58887C

BAFFLE, Generator Air (Right)

$

$

Currently unavailable

15

Briggs & Stratton 61763B

WRAPPER, Upper Generator

$

$

Currently unavailable

16

Briggs & Stratton 58884

COVER, Muffler and Head

$

$

Currently unavailable

17

Briggs & Stratton 30332

CAPSCREW, Hex Head - 5/16"-18 x 3/4"

$

$

Currently unavailable

18

Briggs & Stratton 27794

CAPLUG

$

$

Currently unavailable

19

Briggs & Stratton 61777

HANDLE, Carrying
(Superseded to 7061777YP)

$30.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 58894

GASKET, Exhaust
(Superseded to 58894GS)

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 60209

ADAPTER, Generator Sheet Metal

$

$

Currently unavailable

22

Briggs & Stratton 59635

SCREW - No. 8 x 3/8"

$

$

Currently unavailable

23

Briggs & Stratton 56892

SCREW - No. 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 59634

SCREW - 1/4" x 1"

$

$

Not available

26

Briggs & Stratton 45992

DIODE ASSEMBLY, Battery Charge
(Superseded to 5045992)

$11.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 36933

SCREW - No. 10-32 x 3/8"

$

$

Not available

28

Briggs & Stratton 22152

WASHER, Lock - No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 22158

NUT, Hex - No. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0
