8706-0 - Generac 1,350 Watt Portable Generator Engine Sheet Metal No. 62005 Issued 02/18/83 Parts Diagram

1,350 Watt Portable Generator

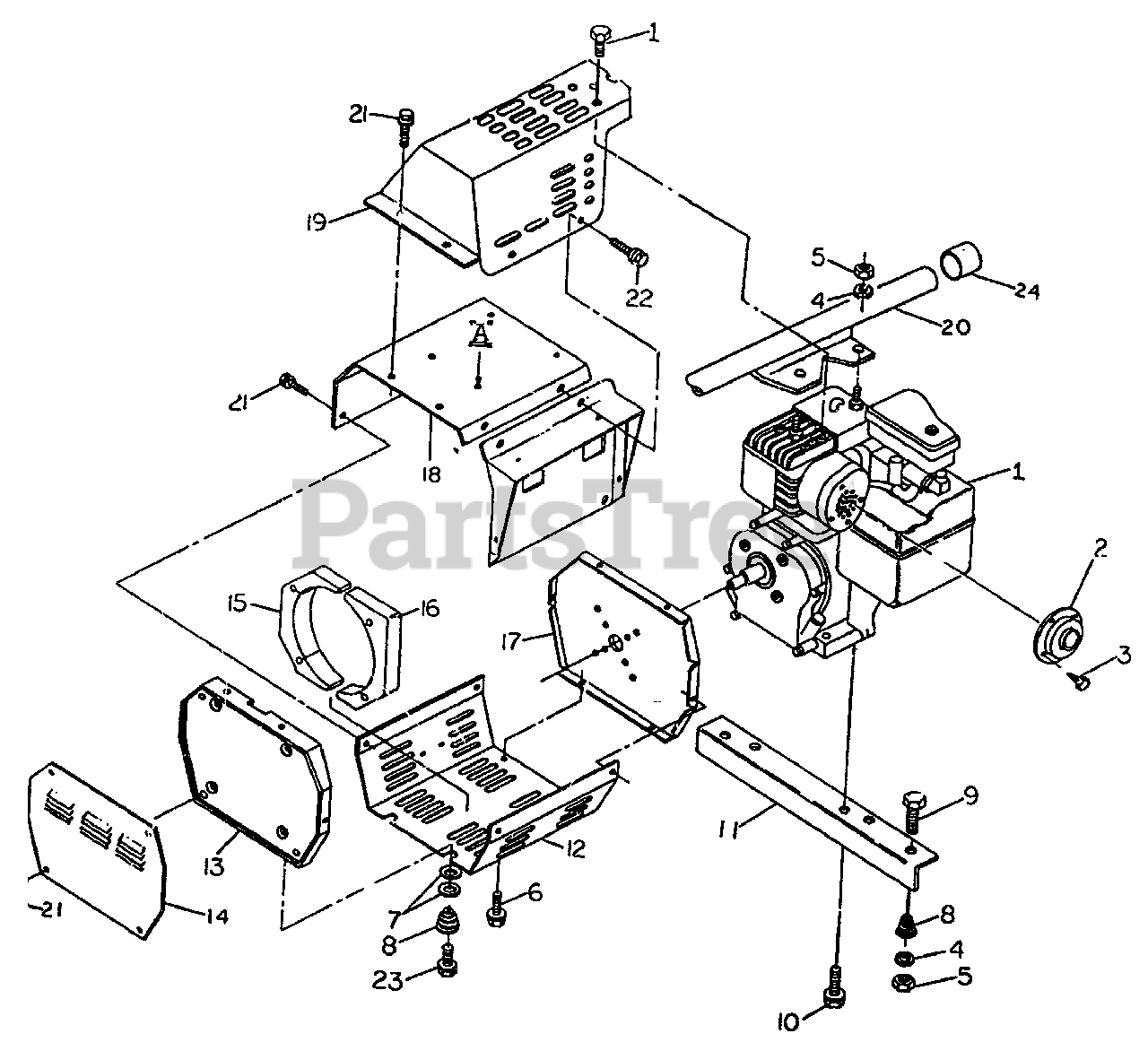

Engine Sheet Metal No. 62005 Issued 02/18/83 Parts Diagram

  • Title

1

Briggs & Stratton 61742

ENGINE, Briggs & Stratton 3 Horsepower

$

$

Currently unavailable

2

Briggs & Stratton 61491

SCREEN, Spark Arrestor

$

$

Currently unavailable

3

Briggs & Stratton 42496

SCREW, Spark Arrestor Screen

$

$

Currently unavailable

4

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 22245

NUT, Hex - 5/16"-18

$

$

Currently unavailable

6

Briggs & Stratton 56892

SCREW - No. 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22145

WASHER, Flat - 5/16"

$

$

Not available

8

Briggs & Stratton 23594

SPRING

$

$

Currently unavailable

9

Briggs & Stratton 22142

SCREW - 5/16"-18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 59637

SCREW - 3/8"-16 x 3/4"

$

$

Not available

11

Briggs & Stratton 24509

SUPPORT, Spring

$

$

Currently unavailable

12

Briggs & Stratton 58876A

WRAPPER, Lower Generator

$

$

Currently unavailable

13

Briggs & Stratton 61762

PANEL, End

$

$

Currently unavailable

14

Briggs & Stratton 61771

COVER, End Panel

$

$

Currently unavailable

15

Briggs & Stratton 58887B

BAFFLE, Generator Air (Left)

$

$

Currently unavailable

16

Briggs & Stratton 58887C

BAFFLE, Generator Air (Right)

$

$

Currently unavailable

17

Briggs & Stratton 60209

ADAPTER, Generator Sheet Metal

$

$

Currently unavailable

18

Briggs & Stratton 61763A

WRAPPER, Upper Generator

$

$

Currently unavailable

19

Briggs & Stratton 61490

COVER, Head

$

$

Currently unavailable

20

Briggs & Stratton 61769

HANDLE, Carrying

$

$

Currently unavailable

21

Briggs & Stratton 59635

SCREW - No. 8-32 x 3/8"

$

$

Currently unavailable

22

Briggs & Stratton 56892

SCREW - No. 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 59634

SCREW - 1/4" x 1"

$

$

Not available

24

Briggs & Stratton 27794

CAP, Plastic

$

$

Currently unavailable
