870 M (1691898) - Simplicity 28" Snow Thrower, 8hp Headlight Group Parts Diagram

28" Snow Thrower, 8hp

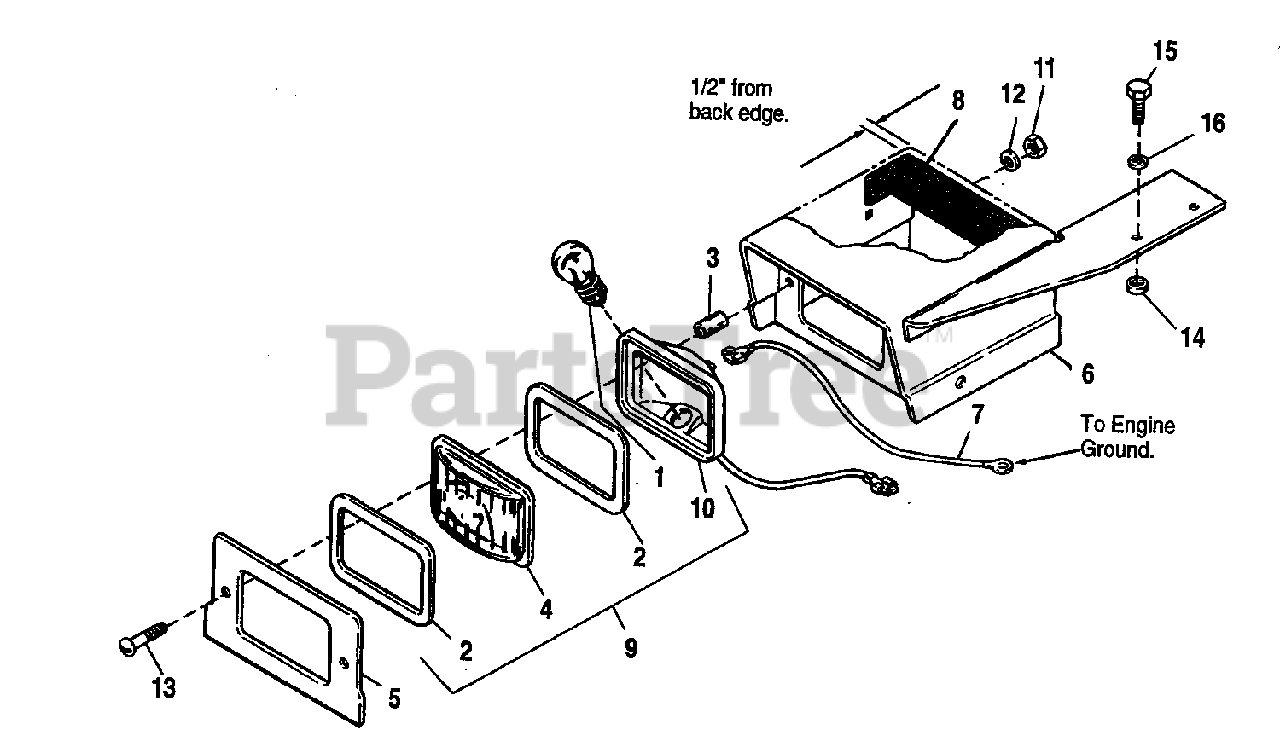

Headlight Group Parts Diagram

  • Title

1

BULB, #1141

$

$

Not available

2

Simplicity 1654662SM

GASKET

$

$

Not available

3

Simplicity 1664792SM

SPACER

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1668721

LENS, Amber

$

$

Not available

5

Simplicity 1668728A

SUPPORT, Light

$

$

Not available

6

Simplicity 1668738SM

COVER ASSY., Headlight

$48.99

$

Usually ships in 2-12 days

0

7

Simplicity 1668762

WIRE, Light to Ground

$

$

Not available

8

Simplicity 1668830SM

PAD, Rubber

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 1704176SM

LIGHT ASSY. (Incl. Ref. Nos 1, 2, 4, & 10)

$

$

Not available

10

Simplicity 1704176SM

SOCKET, Reflector

$

$

Not available

11

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

13

Simplicity 1917451SM

SCREW, Round Hd., 1/4-20 x 1

$

$

Not available

14

Simplicity 1919381SM

WASHER, Plain, 5/16 x 1" O.D.
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1923300SM

LOCKWASHER, Internal Tooth, 5/16

$3.99

$

In Stock, only 4 left!

0

--

Simplicity 1686665SM

KIT, Light

$159.99

$

Usually ships in 2-12 days

0
