870-J0 - Cub Cadet 208cc Engine 870-J0 General Assembly Parts Diagram

208cc Engine

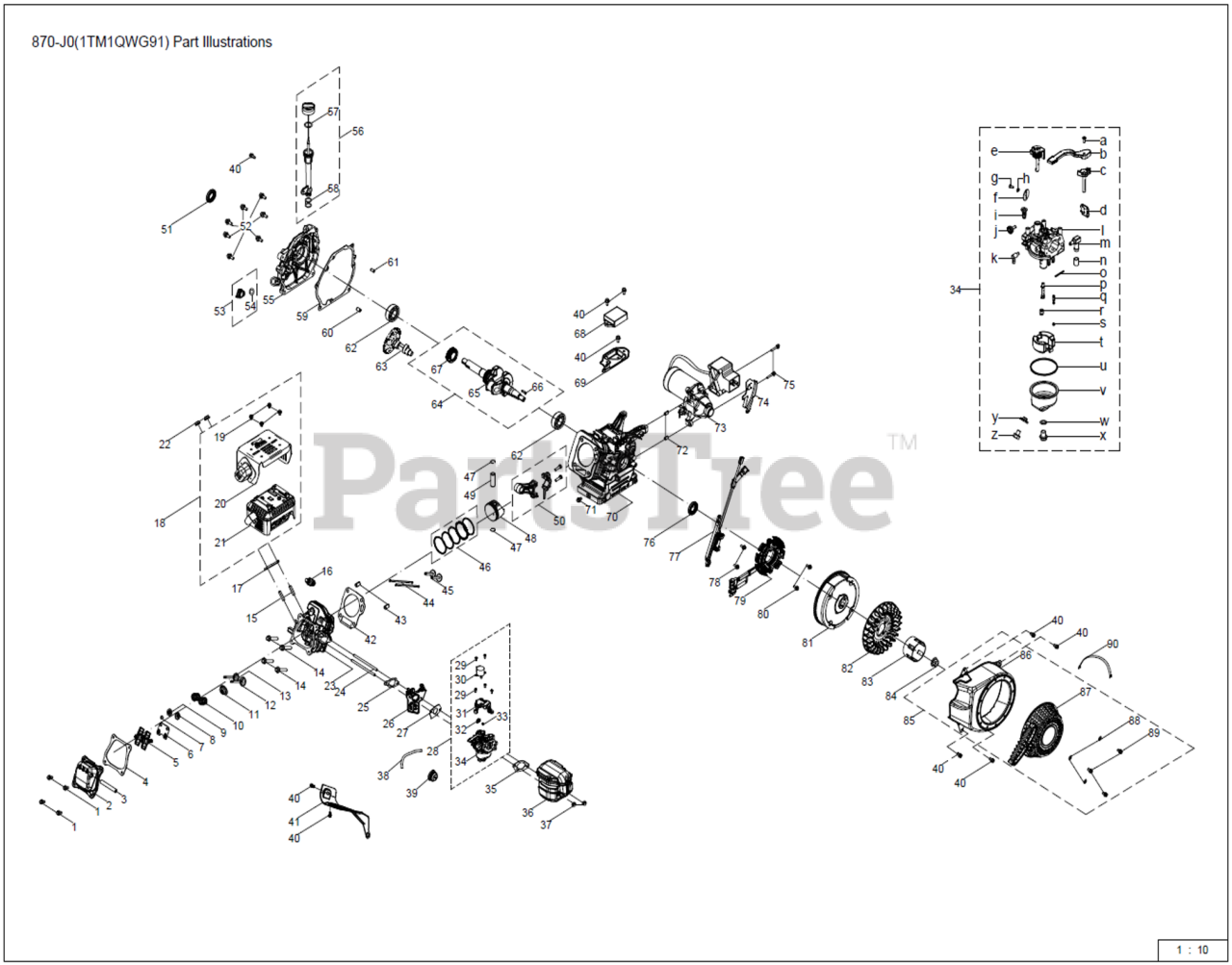

870-J0 General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04968

BOLT M6 x 16

$6.99

$

In Stock, only 3 left!

0

2

Cub Cadet 751P21968

VALVE COVER

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 751P22836

BREATHER HOSE

$

$

Currently unavailable

4

Cub Cadet 751P11565B

VALVE COVER GASKET

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 751P11892A

ROCKER ARM KIT

$2.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 951-15139

ROCKER ARM BASE

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 751P12002A

EXHAUST VALVE ADJUSTER

$2.99

$

In Stock, Qty 8

0

8

Cub Cadet 751P12000A

INTAKE VALVE SPRING RETAINER

$2.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 751P12003A

EXHAUST VALVE SPRING RETAINER

$2.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 751P12004A

VALVE SPRING

$1.99

$

In Stock, only 2 left!

0

11

Cub Cadet 751P11894A

INTAKE VALVE SEAL

$2.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 751P14099A

INTAKE VALVE

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 751P14100A

EXHAUST VALVE

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-04933

BOLT M8-1.25 x 55 GR10.9

$3.99

$

In Stock, Qty 10

0

15

Cub Cadet 910-06299

STUD

$4.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 951-10292A

SPARK PLUG (F6RTC/RN11YC/BPR6ES)

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 751P11289A

MUFFLER GASKET

$2.49

$

In Stock, Qty 12

0

18

Cub Cadet 951-12010A

MUFFLER ASSEMBLY

$76.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-06119

BOLT M5-.8 x 8 CL10.9

$5.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 908-05055

OUTER MUFFLER SHIELD

$27.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 908-05017

MUFFLER ASSEMBLY

$72.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-04214

NUT

$4.49

$

In Stock, only 3 left!

0

23

Cub Cadet 751P14102

CYLINDER HEAD

$44.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-06423

STUD M6-1 x 98

$4.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 751P11567B

CARBURETOR INSULATOR GASKET

$1.99

$

In Stock, Qty 20+

0

26

Cub Cadet 951-15160

INSULATOR

$7.49

$

In Stock, Qty 6

0

27

Cub Cadet 751P12005A

CARBURETOR GASKET

$5.99

$

In Stock, Qty 14

0

28

Cub Cadet 651P08874

CARBURETOR

$

$

Currently unavailable

29

Cub Cadet 751-22625

SCREW M4x8

$1.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 725P12065

THROTTLE MOTOR

$24.99

$

In Stock, only 3 left!

0

31

Cub Cadet 751P22627

MOTOR BASE

$5.49

$

In Stock, only 1 left!

0

32

Cub Cadet 731P19432

CARBURETOR DAMPER

$6.49

$

In Stock, only 1 left!

0

33

Cub Cadet 732P06906

DAMPER SPRING

$4.99

$

Usually ships in 3-6 days

0

34

Cub Cadet NSOCA

Not Serviceable/ Order Complete Assembly

Note: Order Ref 28

$

$

Currently unavailable

35

Cub Cadet 751P11897B

CARBURETOR GASKET PLATE

$1.99

$

In Stock, only 1 left!

0

36

Cub Cadet 651P08879

HEATER BOX

$

$

Currently unavailable

37

Cub Cadet 712-04213

NUT

$6.99

$

In Stock, only 2 left!

0

38

Cub Cadet 951-14795

FUEL HOSE 3.2X6.5X530

$9.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 951-10639B

PRIMER

$15.99

$

In Stock, only 4 left!

0

40

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, only 1 left!

0

41

Cub Cadet 951-11113

AIR SHIELD

$9.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 951-11572

CYLINDER HEAD GASKET

$11.99

$

In Stock, Qty 5

0

43

Cub Cadet 715P04090A

PIN (10MMx16MM)

$3.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 751P14105A

PUSH ROD

$2.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 751P11899A

TAPPET

$7.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 751P12111A

PISTON RING SET

$6.99

$

In Stock, Qty 6

0

47

Cub Cadet 951-11632A

PISTON PIN SNAP RING

$4.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-12007

PISTON

$35.99

$

In Stock, only 2 left!

0

49

Cub Cadet 751P11633A

PISTON PIN

$1.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 751P11573A

CONNECTING ROD

$10.99

$

In Stock, only 3 left!

0

51

Cub Cadet 751P11368A

OIL SEAL

$3.49

$

In Stock, only 4 left!

0

52

Cub Cadet 710-04932A

BOLT M8x32

$3.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 931-09966A

OIL PLUG

$5.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 951-11577A

O-RING 15.8 x 2.5

$3.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 751P17706

CRANKCASE COVER

$33.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 951-05020B

DIPSTICK ASSEMBLY

$15.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 921-04663A

O-RING

$5.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 951-12397

OIL FILL TUBE O-RING

$5.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 751P11371B

CRANKCASE GASKET

$3.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 715-04096A

DOWEL PIN 9 X 14

$4.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 715-04092A

DOWEL PIN 7 X 14

$3.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 751P11369A

BEARING

$5.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 751P15128A

CAMSHAFT

$8.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 651P08880

CRANKSHAFT (COMPLETE)

$

$

Currently unavailable

65

Cub Cadet 651P08881

CRANKSHAFT

$

$

Currently unavailable

66

Cub Cadet 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 6

0

67

Cub Cadet 951-15130A

DRIVE TIMING GEAR

$11.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 751P22845

SPEED REGULATOR

$

$

Currently unavailable

69

Cub Cadet 751P22705

SWITCH BOX BASE

$5.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 751P22846

CRANKCASE

$

$

Currently unavailable

71

Cub Cadet 710-07374

OIL DRAIN PLUG
(Superseded to 710P07374)

$3.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 715-04088A

DOWEL PIN

$3.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 751P22869

IGNITION MODULE

$

$

Currently unavailable

74

Cub Cadet 751P16487

LOWER HOUSING

$2.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 710-05182

BOLT M6-1 x 32 GR8.8

$4.49

$

In Stock, only 1 left!

0

76

Cub Cadet 751P11370A

OIL SEAL

$2.99

$

In Stock, Qty 10

0

77

Cub Cadet 751P22870

CHARGING COIL

$

$

Currently unavailable

78

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

79

Cub Cadet 751P22872

CHARGING COIL

$

$

Currently unavailable

80

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$4.49

$

In Stock, only 2 left!

0

81

Cub Cadet 751P22709

FLYWHEEL

$80.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-10909B

COOLING FAN

$23.99

$

In Stock, only 4 left!

0

83

Cub Cadet 951-14887

STARTER CUP

$14.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 712-04287A

FLYWHEEL NUT M14-1.5

$6.49

$

Usually ships in 3-6 days

0

85

Cub Cadet NSCO

Not Serviceable/ Components Only

$

$

Currently unavailable

86

Cub Cadet 951-15537

BLOWER HOUSING

$39.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-15594

RECOIL STARTER HOUSING

$53.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 736-04455B

FLAT WASHER

$6.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 710-06354

BOLT M6 x 10

$6.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 725-06031A

CABLE TIE 3x150

$2.49

$

Usually ships in 3-6 days

0

COMPLETE ENGINE

$

$

Not available

a

Self-tapping Screw, ST2.9x10

$

$

Not available

b

Choke Lever

$

$

Not available

c

Choke Shaft

$

$

Not available

d

Choke Plate

$

$

Not available

e

Throttle Shaft

$

$

Not available

f

Throttle Plate

$

$

Not available

g

Cub Cadet 710P06580

SCREW M3x 6

$3.49

$

Usually ships in 3-6 days

0

h

Washer

$

$

Not available

i

Idle Jet

$

$

Not available

j

Cub Cadet 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

k

Primer Line

$

$

Not available

l

Carburetor Body

$

$

Not available

m

Fuel Hose

$

$

Not available

n

Dustproof Cap

$

$

Not available

o

Cub Cadet 711P06053A

FLOAT PIN

$2.99

$

Usually ships in 3-6 days

0

p

Nozzle Tube

$

$

Not available

q

Needle Valve

$

$

Not available

r

Main Jet

$

$

Not available

s

Cub Cadet 732P05138A

NEEDLE VALVE SPRING

$3.49

$

Usually ships in 3-6 days

0

t

Float

$

$

Not available

u

Cub Cadet 951-11589A

FUEL BOWL O-RING

$6.99

$

In Stock, Qty 20+

0

v

Cub Cadet 608P05002

FUEL BOWL

$5.99

$

Usually ships in 3-6 days

0

w

Cub Cadet 951-11348A

FUEL BOWL GASKET

$5.99

$

In Stock, Qty 8

0

x

Cub Cadet 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, Qty 7

0

y

Cub Cadet 951-11349A

FUEL DRAIN PLUG GASKET

$4.49

$

In Stock, Qty 20+

0

z

Cub Cadet 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 5

0
