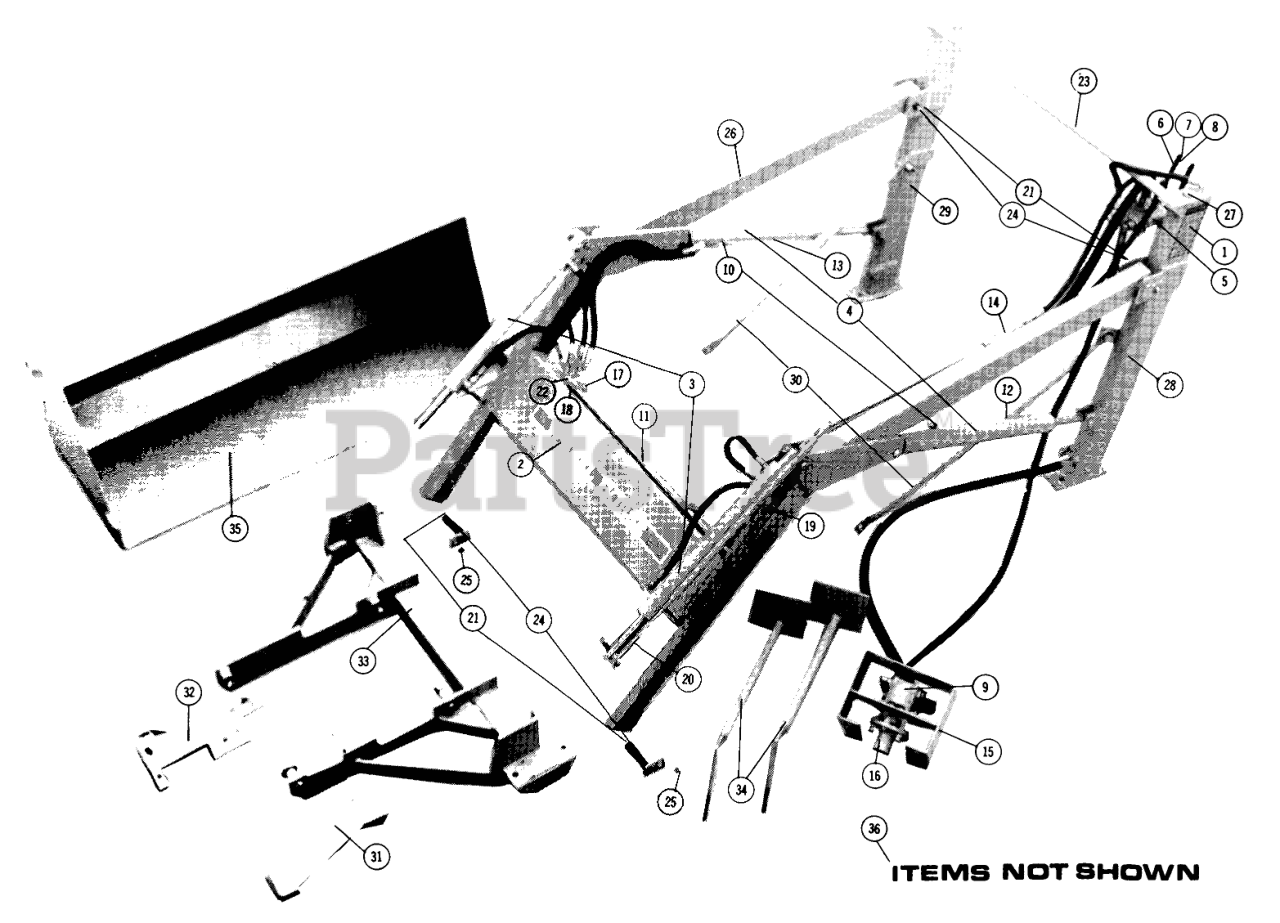

87-72FL01 - Toro Loader Frame (1978) PARTS LIST FOR FRONT LOADER VEHICLE IDENTIFICATION NUMBERS 87-72FL01/87-48BK01 Parts Diagram

Loader Frame

PARTS LIST FOR FRONT LOADER VEHICLE IDENTIFICATION NUMBERS 87-72FL01/87-48BK01 Parts Diagram

  • Title

1

Toro 20001

Decal, Caution

$

$

Currently unavailable

2

Toro 20028

Decal, Wheel Horse

$

$

Currently unavailable

3

Toro 21005

Tilt Cylinder

$

$

Currently unavailable

4

Toro 21008

Lift Cylinder

$

$

Currently unavailable

5

Toro 22001

Control VaIve

$

$

Currently unavailable

6

Toro 22003

Handle Linkage

$

$

Currently unavailable

7

Toro 22016

Black Vinyl Cover

$

$

Currently unavailable

8

Toro 22020

Valve Handle (with Cover)

$

$

Currently unavailable

9

Toro 23001

Hydraulic Pump

$

$

Currently unavailable

10

Toro 23042

52014/15/90A RER 34

$3.49

$

Usually ships in 3-6 days

0

11

Toro 23705

Self Tapping Screw
(Superseded to 700095)

$

$

Not available

12

Toro 23709-L

Hydraulic Cylinder Tube LH

$

$

Currently unavailable

13

Toro 23709-R

Hydraulic Cylinder Tube RH

$

$

Currently unavailable

14

Toro 230915

Hydraulic Line

$

$

Currently unavailable

15

Toro 230943

Pump Mounting Bracket
(Superseded to 708056)

$

$

Not available

16

Toro 230944

Pump Coupling
(Superseded to 708057)

$

$

Not available

17

Toro 24027

Hydraulic Line Hold Down

$

$

Currently unavailable

18

Toro 24028

Hydraulic Line Bracket

$

$

Currently unavailable

19

Toro 24036

Bucket Guide Tube

$

$

Currently unavailable

20

Toro 24039

Bucket Guide Rod

$

$

Currently unavailable

21

Toro 24043

Grease Fitting

$

$

Currently unavailable

22

Toro 24044

Foam Cushion

$

$

Currently unavailable

23

Toro 24052

Stabilizer Bar

$

$

Currently unavailable

24

Toro 24053

Lift Frame Pin

$

$

Currently unavailable

25

Toro 24055

Lift Frame Pin Bushing

$

$

Currently unavailable

26

Toro 24906

Lift Frame Assembly

$

$

Currently unavailable

27

Toro 25009

Breather Cap

$

$

Currently unavailable

28

Toro 250947-L

Left Upright

$

$

Currently unavailable

29

Toro 250947-R

Right Upright

$

$

Currently unavailable

30

Toro 260915

Brace Arm

$

$

Currently unavailable

31

Toro 260916-L

Front Mounting Bracket (Left)

$

$

Currently unavailable

32

Toro 260916-R

Front Mounting Bracket (Right)

$

$

Currently unavailable

33

Toro 270967

Underframe Assembly

$

$

Currently unavailable

34

Toro 28013

Dismount Stand

$

$

Currently unavailable

35

Toro 28600

48 in. (122 cm) Heavy Duty Bucket

$

$

Currently unavailable

36

Toro 290321

Ballast Box

$

$

Currently unavailable

36

Toro 290320

Upper Link (3-Point Hitch)

$

$

Currently unavailable
